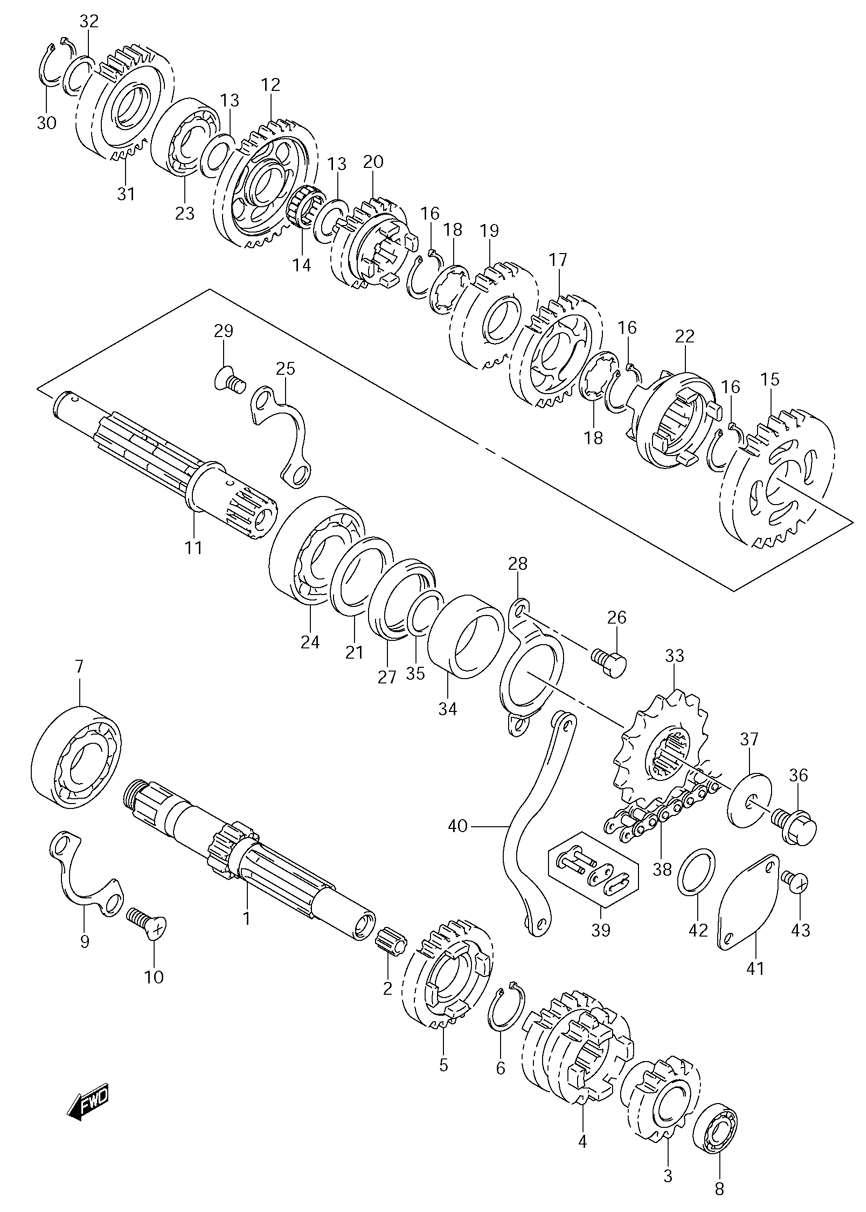

TRANSMISSION для Suzuki DR-Z125LK8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-05810 SHAFT, COUNTER (NO. OF TEETH: 11)
    SHAFT, COUNTER (NO. OF TEETH: 11)
  • 2
    24125-38201 BUSH
    BUSH
  • 3
    24221-05301 GEAR, 2ND DRIVE (NO. OF TEETH: 14)
    GEAR, 2ND DRIVE (NO. OF TEETH: 14)
  • 4
    24231-05203 GEAR, 3RD/4TH DR (NO. OF TEETH: 19/21)
    GEAR, 3RD/4TH DR (NO. OF TEETH: 19/21)
  • 5
    24251-05212 GEAR, 5TH DRIVE (NO. OF TEETH: 26)
    GEAR, 5TH DRIVE (NO. OF TEETH: 26)
  • 6
    09380-20009 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 7
    09262-20069 BEARING (20X47X14)
    BEARING (20X47X14)
  • 8
    08123-60027 BEARING
    BEARING
  • 9
    24741-05200 RETAINER, CNTR SHAFT BEARING
    RETAINER, CNTR SHAFT BEARING
  • 10
    09126-06011 SCREW (6X12)
    SCREW (6X12)
  • 11
    24130-44A00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 12
    24311-05202 GEAR, 1ST DRIVEN (NO. OF TEETH: 33)
    GEAR, 1ST DRIVEN (NO. OF TEETH: 33)
  • 13
    08211-15251 THRUST WASHER
    THRUST WASHER
  • 14
    09263-15023 BEARING (15X19X7.8)
    BEARING (15X19X7.8)
  • 15
    24320-05202 GEAR, 2ND DRIVEN (NO. OF TEETH: 26)
    GEAR, 2ND DRIVEN (NO. OF TEETH: 26)
  • 16
    09380-20009 CIRCLIP
    CIRCLIP
  • 17
    24331-05203 GEAR, 3RD DRIVEN (NO. OF TEETH: 26)
    GEAR, 3RD DRIVEN (NO. OF TEETH: 26)
  • 18
    09167-20011 LOCK WASHER
    LOCK WASHER
  • 19
    24341-05203 GEAR, 4TH DRIVEN (NO. OF TEETH: 23)
    GEAR, 4TH DRIVEN (NO. OF TEETH: 23)
  • 20
    24351-05211 GEAR, 5TH DRIVEN (NO. OF TEETH: 24)
    GEAR, 5TH DRIVEN (NO. OF TEETH: 24)
  • 21
    24359-42A00 WASHER, OIL SEALING
    WASHER, OIL SEALING
  • 22
    24421-05300 WHEEL, SLIDING DOG
    WHEEL, SLIDING DOG
  • 23
    09264-15001 BEARING (15X36X12)
    BEARING (15X36X12)
  • 24
    09262-22018 BEARING (22X50X14)
    BEARING (22X50X14)
  • 25
    24741-05200 RETAINER, DRIVE SHAFT BEARING
    RETAINER, DRIVE SHAFT BEARING
  • 26
    01500-0610A BOLT
    BOLT
  • 27
    09283-30053 OIL SEAL (30X40X6)
    OIL SEAL (30X40X6)
  • 28
    24751-42A10 RETAINER, DRIVE SHAFT OIL SEAL
    RETAINER, DRIVE SHAFT OIL SEAL
  • 29
    09126-06011 SCREW (6X12)
    SCREW (6X12)
  • 30
    08331-3115A CIRCLIP
    CIRCLIP
  • 31
    26260-05201 GEAR, KICK STARTER IDLE (26 TEETH)
    GEAR, KICK STARTER IDLE (26 TEETH)
  • 32
    09181-15111 WASHER (15X20X1.0)
    WASHER (15X20X1.0)
  • 33
    27511-44A20 SPROCKET, ENGINE (NO. OF TEETH: 14)
    SPROCKET, ENGINE (NO. OF TEETH: 14)
  • 34
    27531-42A00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 35
    09280-21008 O RING (DIAMETER: 2.5,INSIDE DIAMETER: 21)
    O RING (DIAMETER: 2.5,INSIDE DIAMETER: 21)
  • 36
    01550-0812A BOLT
    BOLT
  • 37
    08211-08283 WASHER
    WASHER
  • 38
    27600-46911-134 CHAIN ASSEMBLY (DID,428HG 134L)
    CHAIN ASSEMBLY (DID,428HG 134L)
  • 39
    27620-46911 JOINT (DID,428HG) (OPTIONAL)
    JOINT (DID,428HG) (OPTIONAL)
  • 40
    27640-08G00 PLATE, FRONT CHAIN
    PLATE, FRONT CHAIN
  • 41
    11450-08G00 CAP, NEUTRAL SW
    CAP, NEUTRAL SW
  • 42
    09280-22001 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 21.8)
    O RING (DIAMETER: 2.4,INSIDE DIAMETER: 21.8)
  • 43
    02112-0508A SCREW
    SCREW
