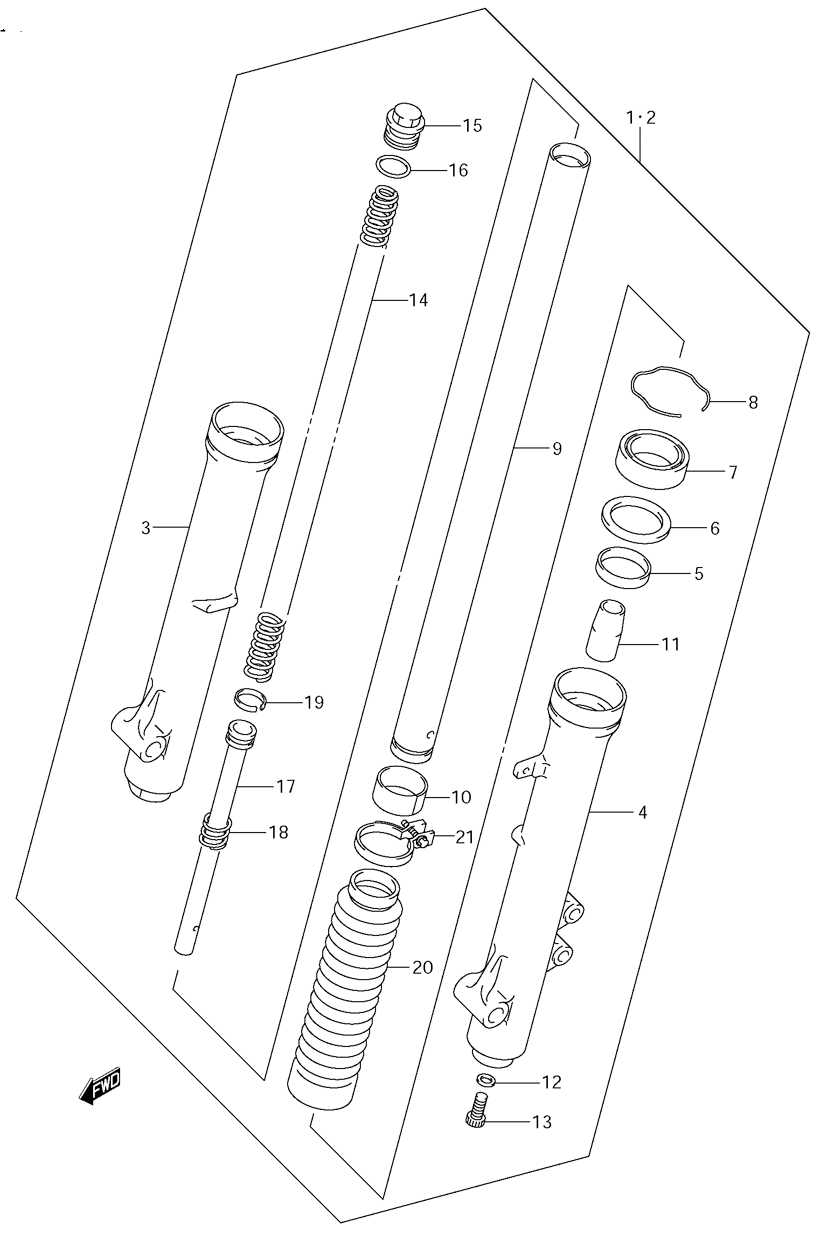

SUSPENSION - FRONT FORK для Suzuki DR-Z125LK8 - 2008 года выпуска
-
№АртикулНазвание
-
151103-08G60 DAMPER ASSEMBLY, FRONT FORK RIGHT HANDDAMPER ASSEMBLY, FRONT FORK RIGHT HAND
-
251104-08G60 DAMPER ASSEMBLY, FRONT FORK LEFT HANDDAMPER ASSEMBLY, FRONT FORK LEFT HAND
-
351130-08G10 ...TUBE, OUTER RIGHT HAND...TUBE, OUTER RIGHT HAND
-
451140-08G10 ...TUBE, OUTER LEFT HAND...TUBE, OUTER LEFT HAND
-
551152-43EC0 ...BUSH, GUIDE...BUSH, GUIDE
-
651168-43EC0 ...SPACER, SEAL...SPACER, SEAL
-
751153-48420 ...SEAL, OIL...SEAL, OIL
-
851156-48730 ...RING, STOPPER...RING, STOPPER
-
951110-08G00 ...TUBE, INNER...TUBE, INNER
-
1051121-08G00 ...BUSH, SLIDE...BUSH, SLIDE
-
1151195-48000 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1251148-36011 ...GASKET...GASKET
-
1351147-48130 ...BOLT, CENTER...BOLT, CENTER
-
1451171-08G00 ...SPRING, FRONT...SPRING, FRONT
-
1551351-48000 ...BOLT, FORK...BOLT, FORK
-
1651181-25030 ...O RING...O RING
-
1751146-08G00 ...CYLINDER...CYLINDER
-
1851177-08G00 ...SPRING, REBOUND...SPRING, REBOUND
-
1951196-48000 ...RING...RING
-
2051571-08G40 ...BOOT...BOOT
-
2151575-08G00 ...BAND...BAND
