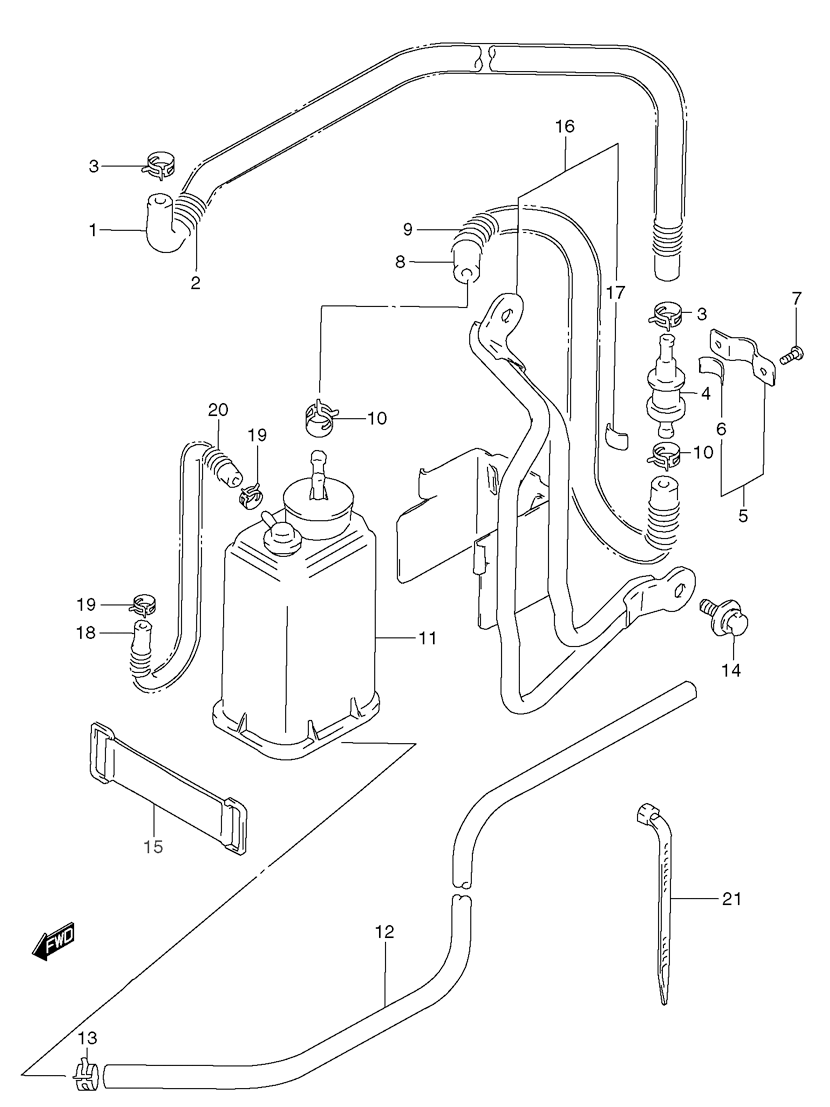

EVAP SYSTEM (CALIF ONLY) для Suzuki DR200SEK7 - 2007 года выпуска
-
№АртикулНазвание
-
109343-05509 HOSE, FUEL TANKHOSE, FUEL TANK
-
209440-13053 SPRINGSPRING
-
309401-11413 CLIPCLIP
-
444240-38A00 VALVE, ROLL OVERVALVE, ROLL OVER
-
544892-24A00 PLATE, VALVEPLATE, VALVE
-
644894-24A00 ...CUSHION...CUSHION
-
702112-0408B SCREWSCREW
-
809343-05414 HOSE, VALVE CHARGEHOSE, VALVE CHARGE
-
909440-13043 SPRINGSPRING
-
1009401-11413 CLIPCLIP
-
1117210-44A00 CANISTERCANISTER
-
1209352-70113-00B HOSE, CANISTER (LENGTH: 2000->650)HOSE, CANISTER (LENGTH: 2000->650)
-
1309401-10409 CLIPCLIP
-
1409116-06130 BOLTBOLT
-
1509462-00034 BANDBAND
-
1644880-44AB0 PLATEPLATE
-
1744894-24A00 ...CUSHION...CUSHION
-
1809355-35755-600 HOSE, CARB (LENGTH: 600->250)HOSE, CARB (LENGTH: 600->250)
-
1909401-06405 CLIPCLIP
-
2009440-10031 SPRINGSPRING
-
2109407-14403 CLAMPCLAMP
