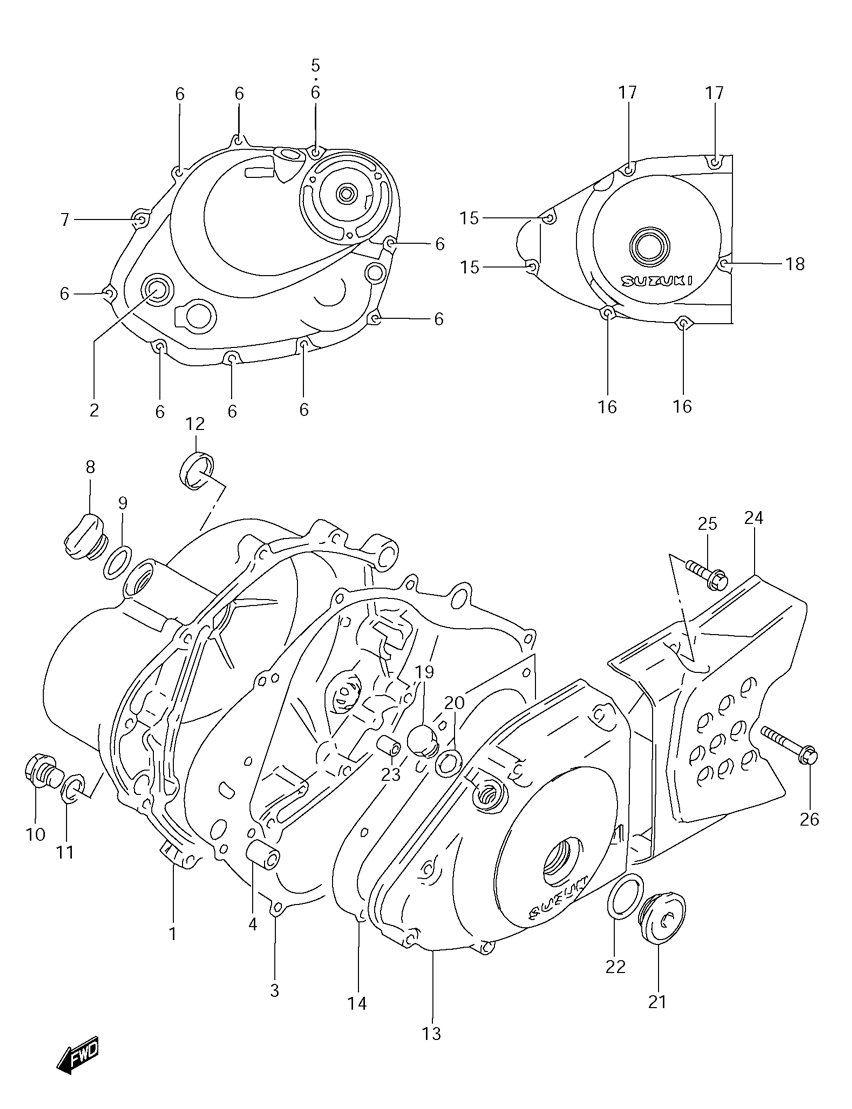

CRANKCASE COVER для Suzuki DR200SEK7 - 2007 года выпуска`
-
№АртикулНазвание
-
111340-42A30 COVER, CLUTCHCOVER, CLUTCH
-
211971-45010 ...LENS, OIL LEVEL...LENS, OIL LEVEL
-
311482-05211 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-13189 KNOCK PINKNOCK PIN
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
601547-0630B BOLTBOLT
-
701547-0645B BOLTBOLT
-
809259-20019 PLUG (20X10)PLUG (20X10)
-
909280-17003 O RING (DIAMETER: 3.1,INSIDE DIAMETER: 16.8)O RING (DIAMETER: 3.1,INSIDE DIAMETER: 16.8)
-
1009247-14026 PLUGPLUG
-
1109168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
1211342-12C51 PLUG, CLUTCH COVER KICKPLUG, CLUTCH COVER KICK
-
1311351-42A30 COVER, MAGNETOCOVER, MAGNETO
-
1411483-05312 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1501547-0630B BOLTBOLT
-
1601547-0635B BOLTBOLT
-
1701547-0640B BOLTBOLT
-
1801547-0650B BOLTBOLT
-
1909247-12104 PLUGPLUG
-
2009168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2109259-26011 PLUGPLUG
-
2209280-22008 O RING (DIAMETER: 3.1,INSIDE DIAMETER: 22.7)O RING (DIAMETER: 3.1,INSIDE DIAMETER: 22.7)
-
2304211-09129 KNOCK PINKNOCK PIN
-
2411360-42A20 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2501547-0625B BOLTBOLT
-
2601547-0635B BOLTBOLT
