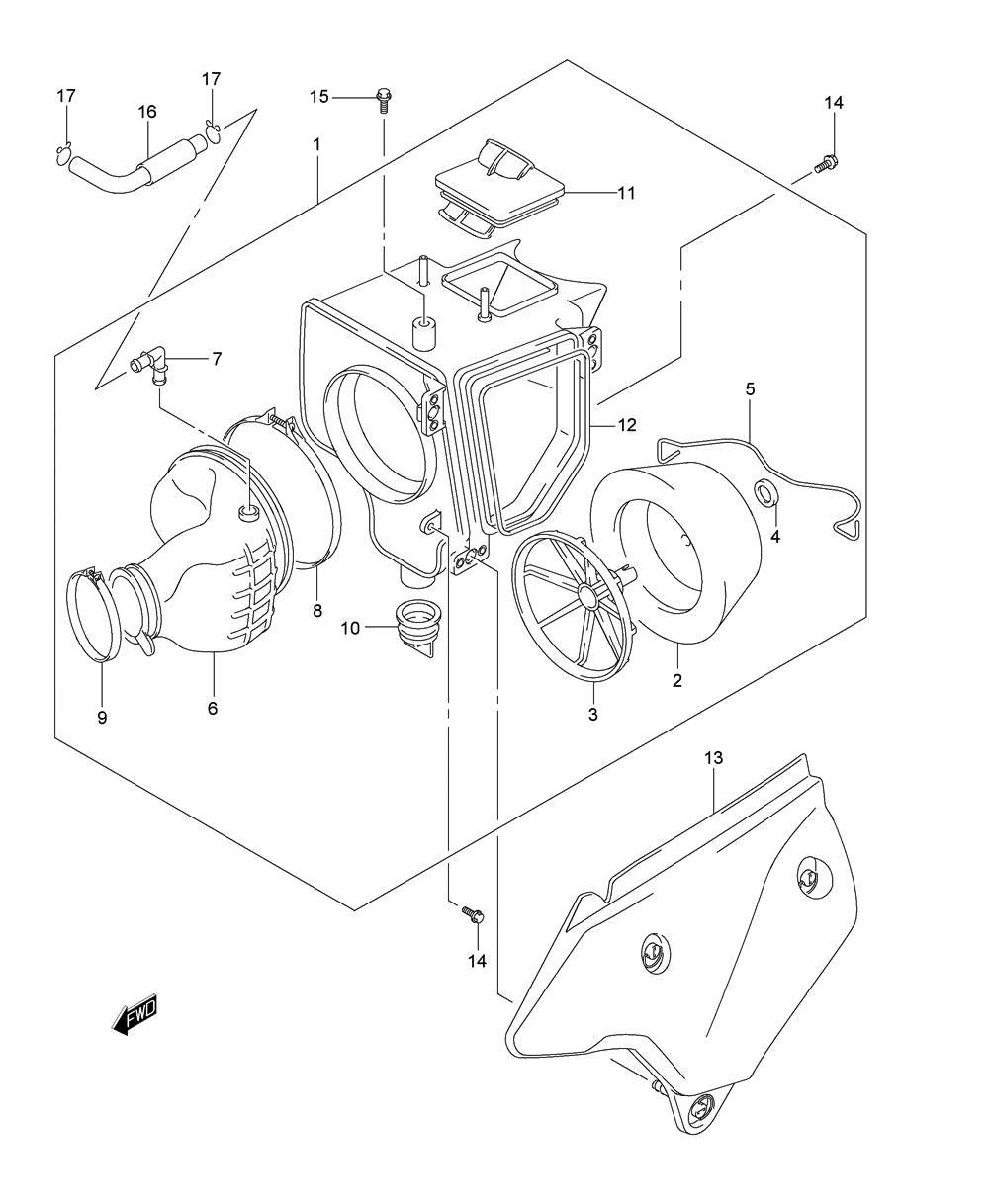

AIR CLEANER для Suzuki DR-Z400EK7 - 2007 года выпуска

№

Артикул

Название
13701-29F41 CLEANER, AIR (EXCEPT CALIF)

CLEANER, AIR (EXCEPT CALIF)
1

13701-29F10 CLEANER, AIR (CALIF ONLY)

CLEANER, AIR (CALIF ONLY)
2

13780-44E00 FILTER, AIR CLEANER

FILTER, AIR CLEANER
3

13791-44E00 HOLDER, FILTER

HOLDER, FILTER
4

13796-44E00 SPACER

SPACER
5

13941-29F00 SPRING

SPRING
6

13881-29F00 TUBE, OUTLET (EXCEPT CALIF)

TUBE, OUTLET (EXCEPT CALIF)
6

13881-29FB0 TUBE, OUTLET (CALIF ONLY)

TUBE, OUTLET (CALIF ONLY)
7

13858-14D10 JOINT

JOINT
8

13826-29F00 CLAMP

CLAMP
9

09402-60208 CLAMP (EXCEPT CALIF)

CLAMP (EXCEPT CALIF)
9

09402-64203 CLAMP (CALIF ONLY)

CLAMP (CALIF ONLY)
10

13872-29F00 VALVE

VALVE
11

13891-29F30 TUBE, INLET

TUBE, INLET
12

13746-29F00 GASKET, AIR CLEANER

GASKET, AIR CLEANER
13

13740-29F10-30H CAP, AIR CLEANER (WHITE)

CAP, AIR CLEANER (WHITE)
14

01547-06163 BOLT

BOLT
15

09111-06054 BOLT

BOLT
16

13850-29FA1 TUBE, BREATHER (CALIF ONLY)

TUBE, BREATHER (CALIF ONLY)
17

09401-14101 CLIP (CALIF ONLY)

CLIP (CALIF ONLY)
