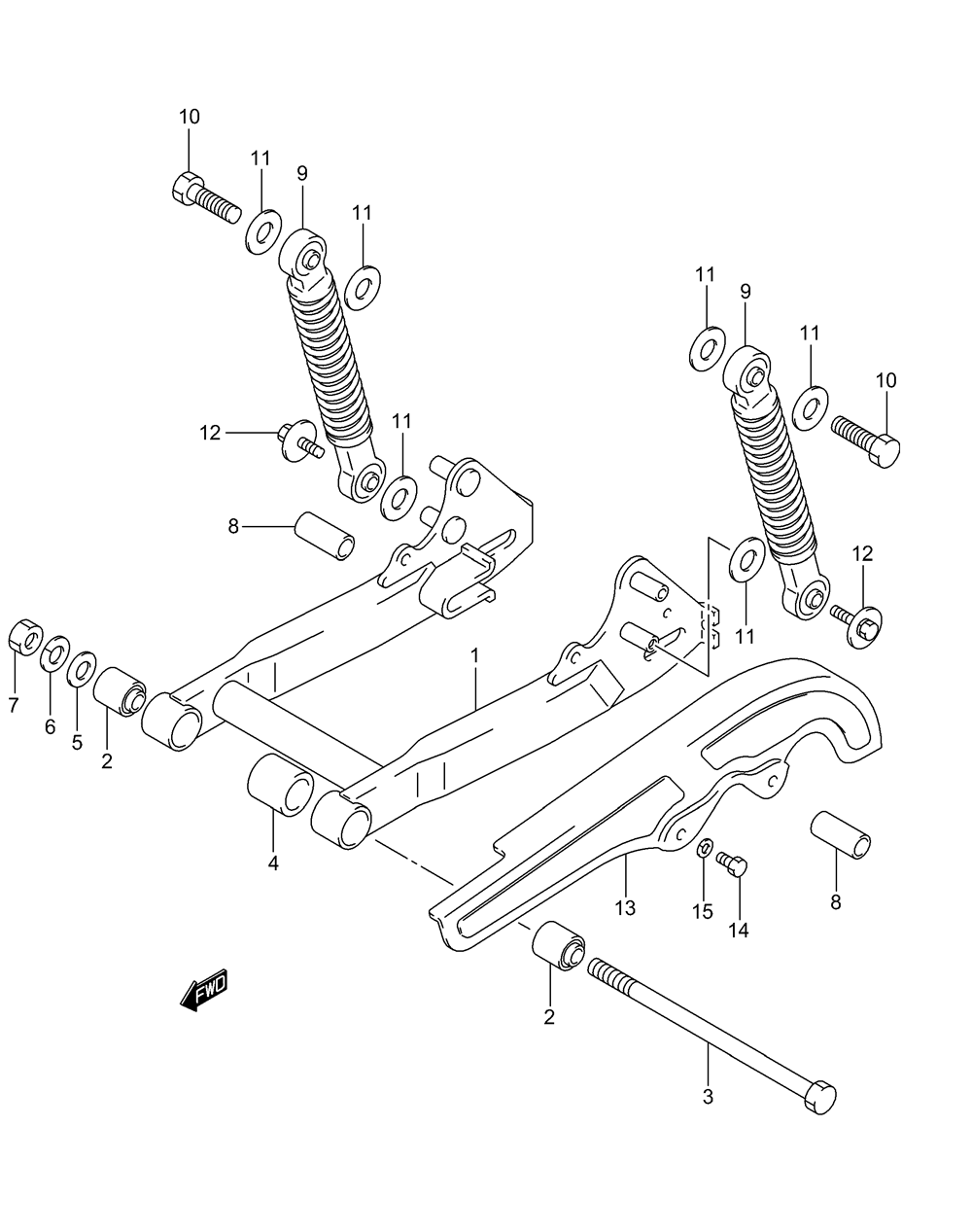

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki JR50K5 - 2005 года выпуска
-
№АртикулНазвание
-
161000-04420-13L SWINGING ARM ASSY, REAR (SILVER)SWINGING ARM ASSY, REAR (SILVER)
-
209319-10014 BUSHING (10X22X28)BUSHING (10X22X28)
-
361211-04420 SHAFT, PIVOTSHAFT, PIVOT
-
461273-19G00 CUSHIONCUSHION
-
509160-10119 WASHERWASHER
-
608321-01103 LOCK WASHERLOCK WASHER
-
708310-00103 NUTNUT
-
861223-04420 CAP, BOSSCAP, BOSS
-
962100-04410 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1001500-10353 BOLT, UPPER (10X35)BOLT, UPPER (10X35)
-
1109160-10119 WASHER (10.5X22X1.6)WASHER (10.5X22X1.6)
-
1209118-06055 BOLT (6X12)BOLT (6X12)
-
1361310-04410 CASE, CHAINCASE, CHAIN
-
1401500-06123 BOLT (6X12)BOLT (6X12)
-
1508321-01063 LOCK WASHERLOCK WASHER
