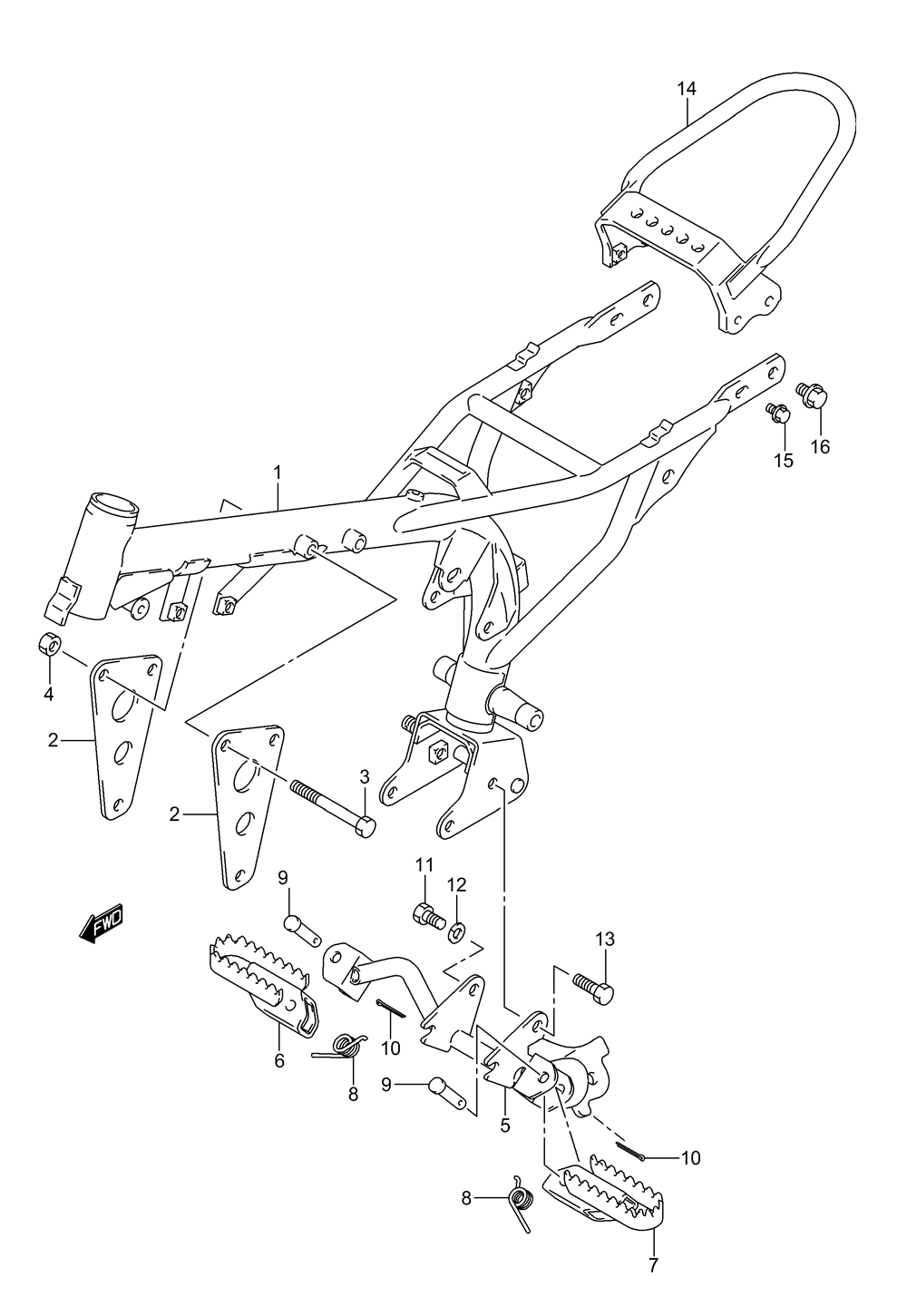

FRAME W/ FOOTREST для Suzuki JR50K5 - 2005 года выпуска
-
№АртикулНазвание
-
141100-09AA0-019 FRAME (BLACK)FRAME (BLACK)
-
241991-04410 PLATE, MOUNTINGPLATE, MOUNTING
-
309103-08099 BOLTBOLT
-
408319-31088 NUTNUT
-
543510-04411 BAR, FRONT FOOTRESTBAR, FRONT FOOTREST
-
643550-46000-019 FOOTREST, RIGHT HAND (BLACK)FOOTREST, RIGHT HAND (BLACK)
-
743560-46000-019 FOOTREST, LEFT HAND (BLACK)FOOTREST, LEFT HAND (BLACK)
-
809448-14012 SPRINGSPRING
-
909200-08002 PINPIN
-
1004111-20158 COTTER PINCOTTER PIN
-
1101500-08163 BOLTBOLT
-
1208321-01083 LOCK WASHERLOCK WASHER
-
1309100-08143 BOLT, LEFT HANDBOLT, LEFT HAND
-
1443980-09AA0 GRIP, REARGRIP, REAR
-
1501550-06103 BOLT, FRONTBOLT, FRONT
-
1601550-08123 BOLT, REARBOLT, REAR
