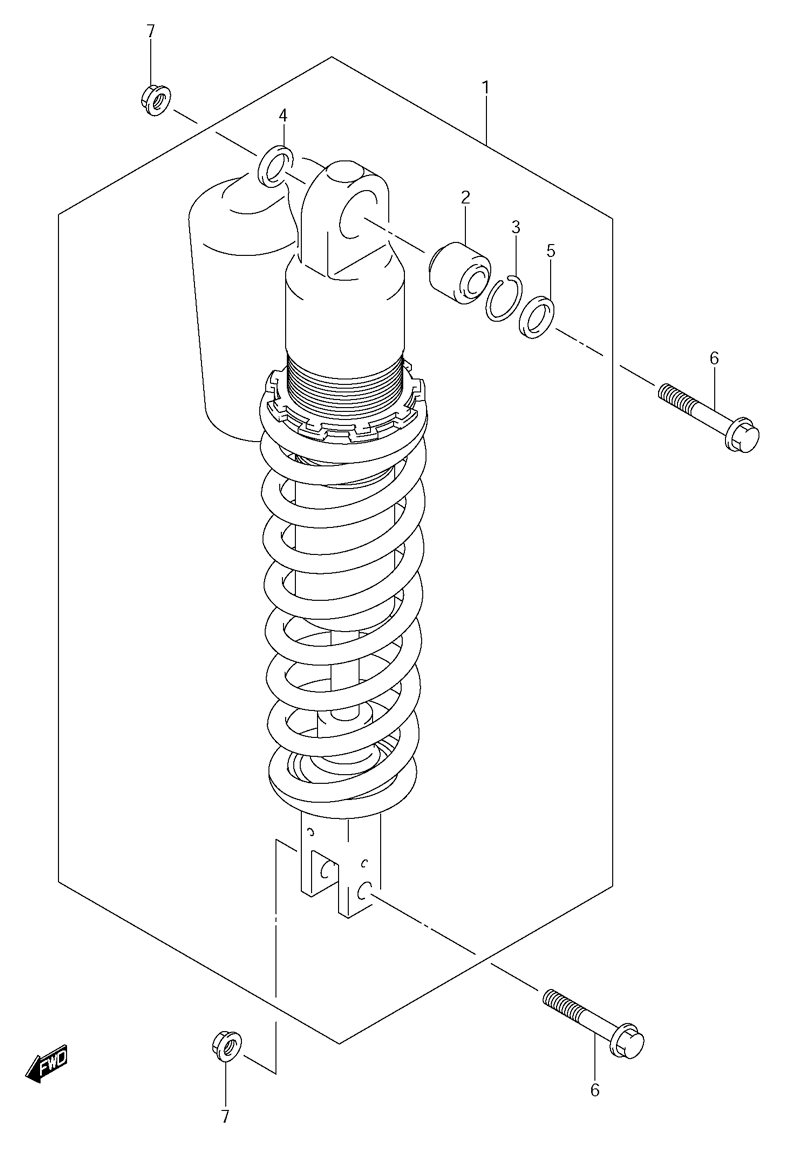

SUSPENSION - SHOCKS REAR для Suzuki DR-Z400SMK5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    62100-29FC0-163 ABSORBER ASSEMBLY, REAR SHOCK (YELLOW) (FOR UNITED STATES ONLY) (163 FOR YU1)
    ABSORBER ASSEMBLY, REAR SHOCK (YELLOW) (FOR UNITED STATES ONLY) (163 FOR YU1)
  • 1
    62100-29FC0-28W ABSORBER ASSEMBLY, REAR SHOCK (WHITE) (FOR UNITED STATES ONLY) (28W FOR 019)
    ABSORBER ASSEMBLY, REAR SHOCK (WHITE) (FOR UNITED STATES ONLY) (28W FOR 019)
  • 1
    62100-29FB0-163 ABSORBER ASSEMBLY, REAR SHOCK (YELLOW) (FOR CANADA ONLY) (163 FOR YU1)
    ABSORBER ASSEMBLY, REAR SHOCK (YELLOW) (FOR CANADA ONLY) (163 FOR YU1)
  • 1
    62100-29FB0-28W ABSORBER ASSEMBLY, REAR SHOCK (WHITE) (FOR CANADA ONLY) (28W FOR 019)
    ABSORBER ASSEMBLY, REAR SHOCK (WHITE) (FOR CANADA ONLY) (28W FOR 019)
  • 2
    62175-36E00 ...BEARING (10X26X22)
    ...BEARING (10X26X22)
  • 3
    62277-27C40 ...RING
    ...RING
  • 4
    62226-36E00 ...SEAL, DUST RIGHT HAND
    ...SEAL, DUST RIGHT HAND
  • 5
    62226-36E10 ...SEAL, DUST LEFT HAND
    ...SEAL, DUST LEFT HAND
  • 6
    09103-10149 BOLT (10X47.5)
    BOLT (10X47.5)
  • 7
    09159-10115 NUT
    NUT
