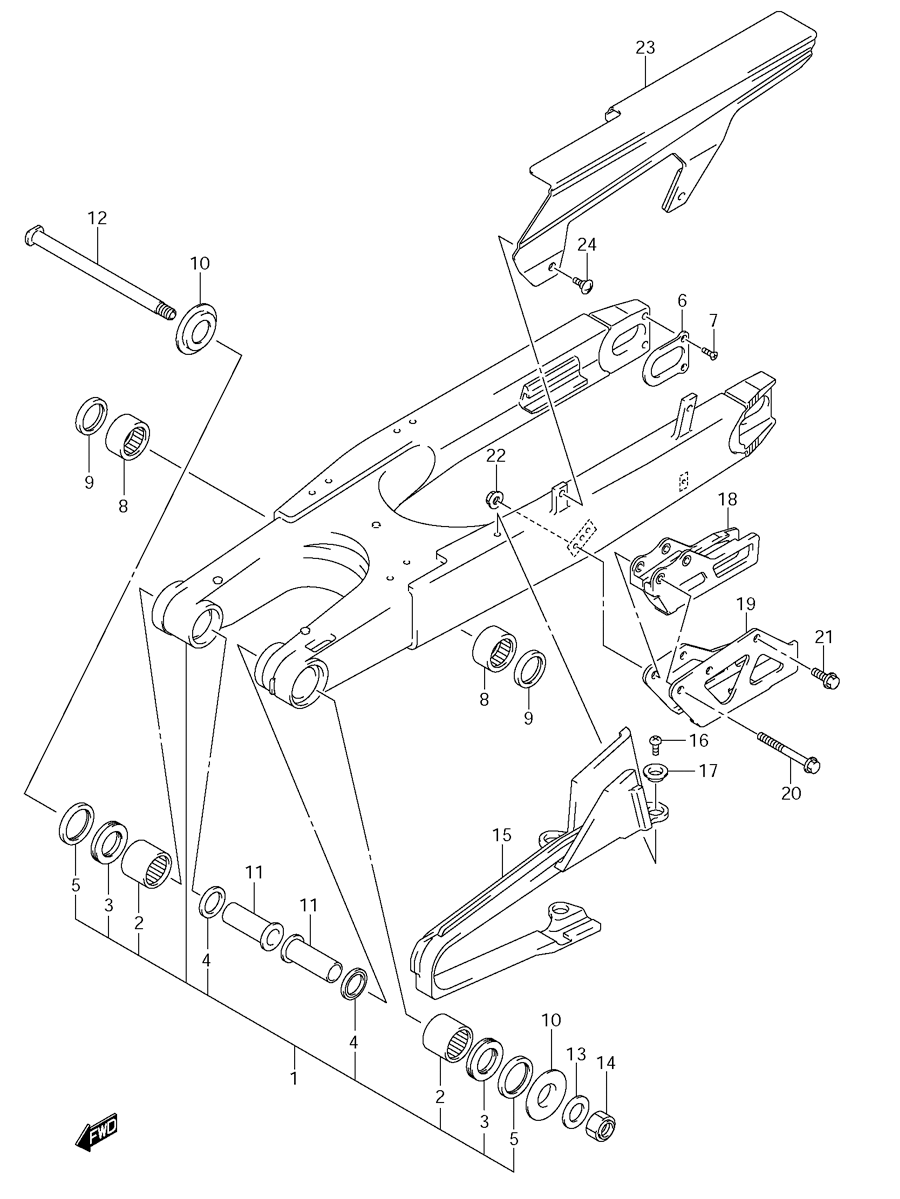

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki DR-Z400SMK5 - 2005 года выпуска

№

Артикул

Название
1

61000-29F30 SWINGING ARM ASSEMBLY, REAR

SWINGING ARM ASSEMBLY, REAR
2

09263-22017 ...BEARING, PIVOT (22X29X30)

...BEARING, PIVOT (22X29X30)
3

09263-22064 ...BEARING, OUTER (22X35X2)

...BEARING, OUTER (22X35X2)
4

09285-22001 ...SEAL, INNER (22X29X4)

...SEAL, INNER (22X29X4)
5

61262-36E00 ...SEAL, OUTER (29.2X37X4)

...SEAL, OUTER (29.2X37X4)
6

61128-37E00 ...PLATE, AXLE

...PLATE, AXLE
7

02122-0410B ...SCREW

...SCREW
8

09263-20086 ...BEARING, ROD (20X27X15)

...BEARING, ROD (20X27X15)
9

62624-14500 ...SEAL, ROD (19X27X4)

...SEAL, ROD (19X27X4)
10

61250-44E00 SPACER, PIVOT OUTER

SPACER, PIVOT OUTER
11

61252-36E00 SPACER, PIVOT INNER

SPACER, PIVOT INNER
12

61211-29F00 SHAFT, PIVOT

SHAFT, PIVOT
13

08322-0116B WASHER

WASHER
14

09159-16007 NUT

NUT
15

61273-29F20 BUFFER, CHAIN TOUCH DEFENSE

BUFFER, CHAIN TOUCH DEFENSE
16

02112-0508B SCREW

SCREW
17

09169-05022 WASHER

WASHER
18

61341-35G00 GUIDE, CHAIN

GUIDE, CHAIN
19

61342-37F00 PLATE, GUIDE OUTER

PLATE, GUIDE OUTER
20

09103-06244 BOLT

BOLT
21

09103-06233 BOLT, REAR

BOLT, REAR
22

08319-3106B NUT

NUT
23

61310-34E00 CASE, CHAIN

CASE, CHAIN
24

09139-06083 SCREW, CHAIN CASE

SCREW, CHAIN CASE
