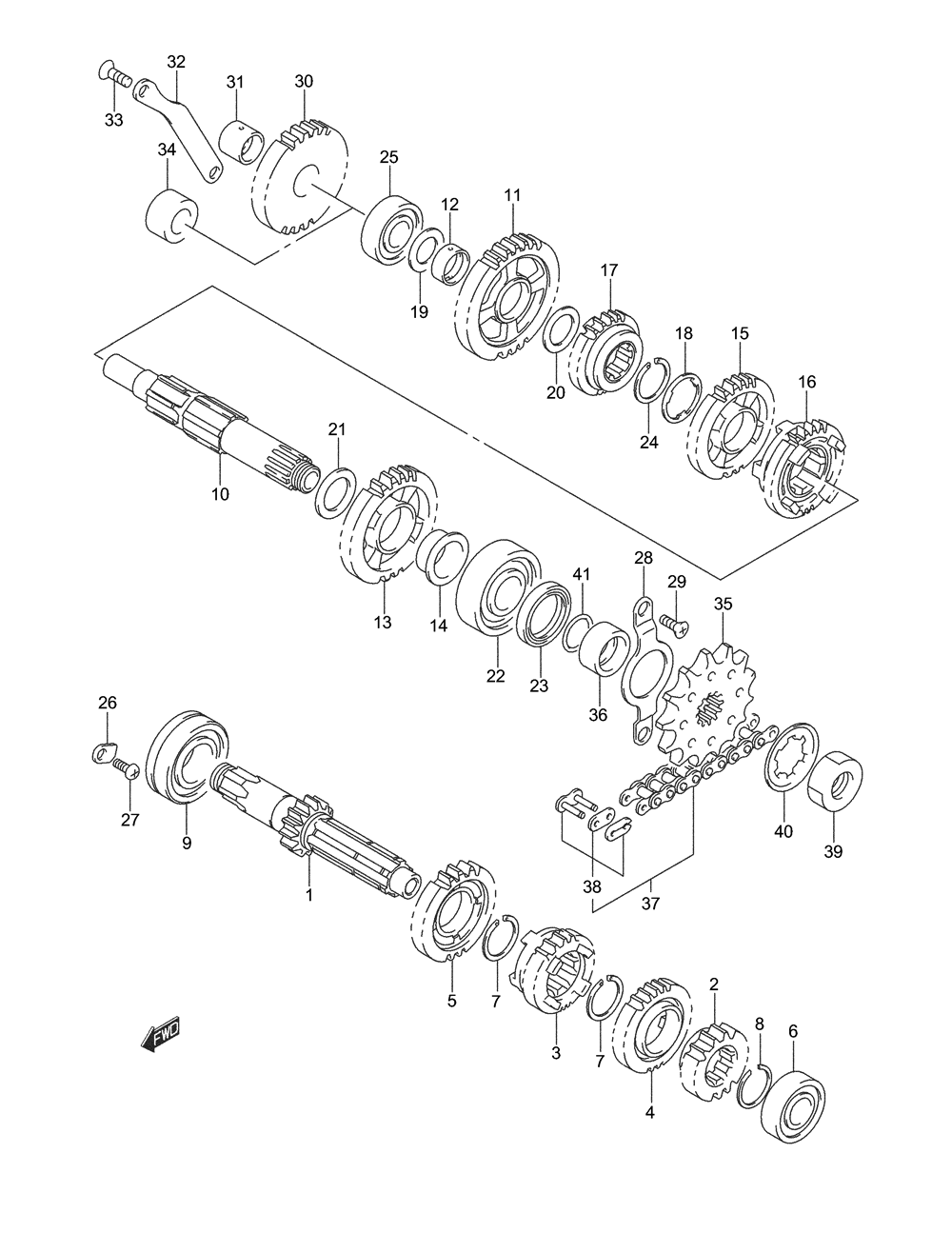

TRANSMISSION для Suzuki DR-Z400EK4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-05D20 SHAFT, COUNTER (NT:14)
    SHAFT, COUNTER (NT:14)
  • 2
    24221-28C20 GEAR, 2ND DRIVE (NT:15)
    GEAR, 2ND DRIVE (NT:15)
  • 3
    24231-05D02 GEAR, 3RD DRIVE (NT:16)
    GEAR, 3RD DRIVE (NT:16)
  • 4
    24241-05D01 GEAR, 4TH DRIVE (NT:22)
    GEAR, 4TH DRIVE (NT:22)
  • 5
    24251-05D00 GEAR, 5TH DRIVE (NT:22)
    GEAR, 5TH DRIVE (NT:22)
  • 6
    09262-17027 BEARING, CENTER SHAFT LEFT HAND
    BEARING, CENTER SHAFT LEFT HAND
  • 7
    09380-25010 CIRCLIP, 4TH/5TH DRIVE
    CIRCLIP, 4TH/5TH DRIVE
  • 8
    09380-25013 CIRCLIP, 2ND DRIVE
    CIRCLIP, 2ND DRIVE
  • 9
    09262-25003 BEARING, CENTER SHAFT, RIGHT HAND
    BEARING, CENTER SHAFT, RIGHT HAND
  • 10
    24130-05D20 DRIVE SHAFT
    DRIVE SHAFT
  • 11
    24311-05D00 GEAR, 1ST DRIVEN (NT:32)
    GEAR, 1ST DRIVEN (NT:32)
  • 12
    24312-29F00 BUSH, 1ST DRIVEN
    BUSH, 1ST DRIVEN
  • 13
    24321-28C02 GEAR, 2ND DRIVEN (NT:26)
    GEAR, 2ND DRIVEN (NT:26)
  • 14
    24322-44E10 BUSH, 2ND DRIVEN
    BUSH, 2ND DRIVEN
  • 15
    24331-05D01 GEAR, 3RD DRIVEN (NT:22)
    GEAR, 3RD DRIVEN (NT:22)
  • 16
    24341-05D01 GEAR, 4TH DRIVEN (NT:24)
    GEAR, 4TH DRIVEN (NT:24)
  • 17
    24351-05D20 GEAR, 5TH DRIVEN (NT:19)
    GEAR, 5TH DRIVEN (NT:19)
  • 18
    09167-25012 WASHER, 3RD DRIVEN
    WASHER, 3RD DRIVEN
  • 19
    09181-17223 WASHER, 1ST DRIVEN, RIGHT HAND
    WASHER, 1ST DRIVEN, RIGHT HAND
  • 20
    09181-20195 WASHER, 1ST DRIVEN, LEFT HAND
    WASHER, 1ST DRIVEN, LEFT HAND
  • 21
    09181-22223 WASHER, 2ND DRIVEN, RIGHT HAND
    WASHER, 2ND DRIVEN, RIGHT HAND
  • 22
    09262-22024 BEARING, DRIVE SHAFT, LEFT HAND
    BEARING, DRIVE SHAFT, LEFT HAND
  • 23
    09283-30053 SEAL, DRIVE SHAFT OIL
    SEAL, DRIVE SHAFT OIL
  • 24
    09380-25010 CIRCLIP, 3RD DRIVEN
    CIRCLIP, 3RD DRIVEN
  • 25
    09262-17023 BEARING, DRIVE SHAFT, RIGHT HAND
    BEARING, DRIVE SHAFT, RIGHT HAND
  • 26
    24741-21A00 RETAINER, COUNTER SHAFT
    RETAINER, COUNTER SHAFT
  • 27
    09125-06110 SCREW (6X12)
    SCREW (6X12)
  • 28
    24751-29F00 RETAINER, DRIVE SHAFT OIL SEAL
    RETAINER, DRIVE SHAFT OIL SEAL
  • 29
    09126-06007 BOLT, RETAINER (6X14)
    BOLT, RETAINER (6X14)
  • 32
    26264-29F00 RETAINER, KICK IDLE
    RETAINER, KICK IDLE
  • 33
    02122-06163 SCREW, KICK IDLE
    SCREW, KICK IDLE
  • 35
    27511-47D10 SPROCKET, ENGINE (NT:14)
    SPROCKET, ENGINE (NT:14)
  • 36
    27531-29F00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 37
    27600-29F10-112 CHAIN ASSY, DRIVE (RK520KZO,112L)
    CHAIN ASSY, DRIVE (RK520KZO,112L)
  • 38
    27620-29F10 JOINT SET, CHAIN
    JOINT SET, CHAIN
  • 39
    09140-18006 NUT, ENGINE SPROCKET
    NUT, ENGINE SPROCKET
  • 40
    09167-22012 WASHER
    WASHER
  • 41
    09280-21008 O RING (D:2.5,ID:21)
    O RING (D:2.5,ID:21)
