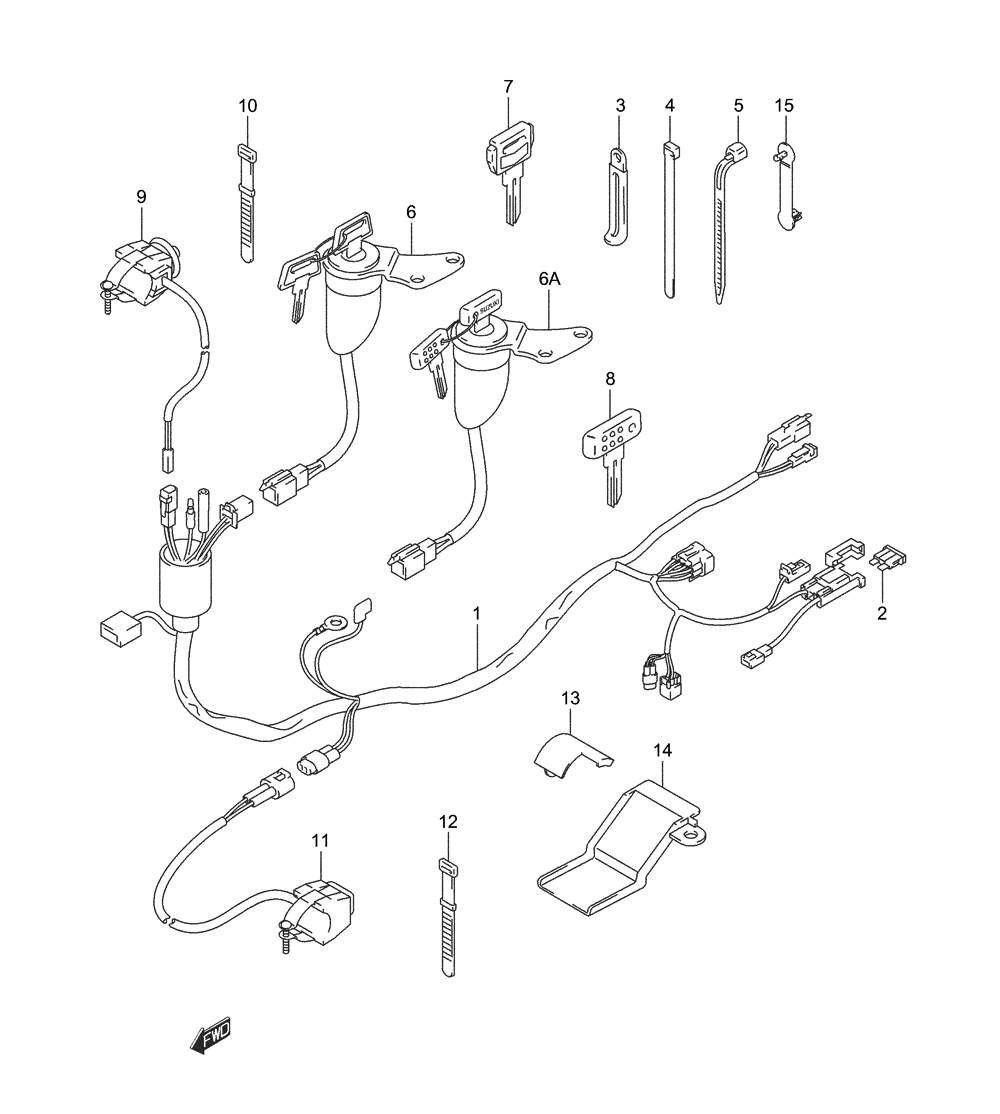

ELECTRICAL - WIRING HARNESS для Suzuki DR-Z400EK4 - 2004 года выпуска`
-
№АртикулНазвание
-
136610-29F10 HARNESS, WIRINGHARNESS, WIRING
-
136610-29F70 HARNESS, WIRINGHARNESS, WIRING
-
209481-10101 FUSE (10A)FUSE (10A)
-
309404-06429 CLAMP (L:45)CLAMP (L:45)
-
309404-06432 CLAMP (L:65)CLAMP (L:65)
-
409407-14407 CLAMP (L:145)CLAMP (L:145)
-
509407-14403 CLAMP (L:125)CLAMP (L:125)
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
509407-25401 CLAMP (L:235)CLAMP (L:235)
-
6A37110-29F50 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
837146-01F00 KEY, BLANK (TYPE:C)KEY, BLANK (TYPE:C)
-
837146-01F10 KEY, BLANK (TYPE:D)KEY, BLANK (TYPE:D)
-
837146-01F20 KEY, BLANK (TYPE:E)KEY, BLANK (TYPE:E)
-
837146-01F30 KEY, BLANK (TYPE:F)KEY, BLANK (TYPE:F)
-
937310-29F00 SWITCH ASSY, STARTERSWITCH ASSY, STARTER
-
1009407-12402 CLAMPCLAMP
-
1137820-36E00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
1209407-12402 CLAMPCLAMP
-
1336611-29F10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1436611-29F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1536651-48E00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
