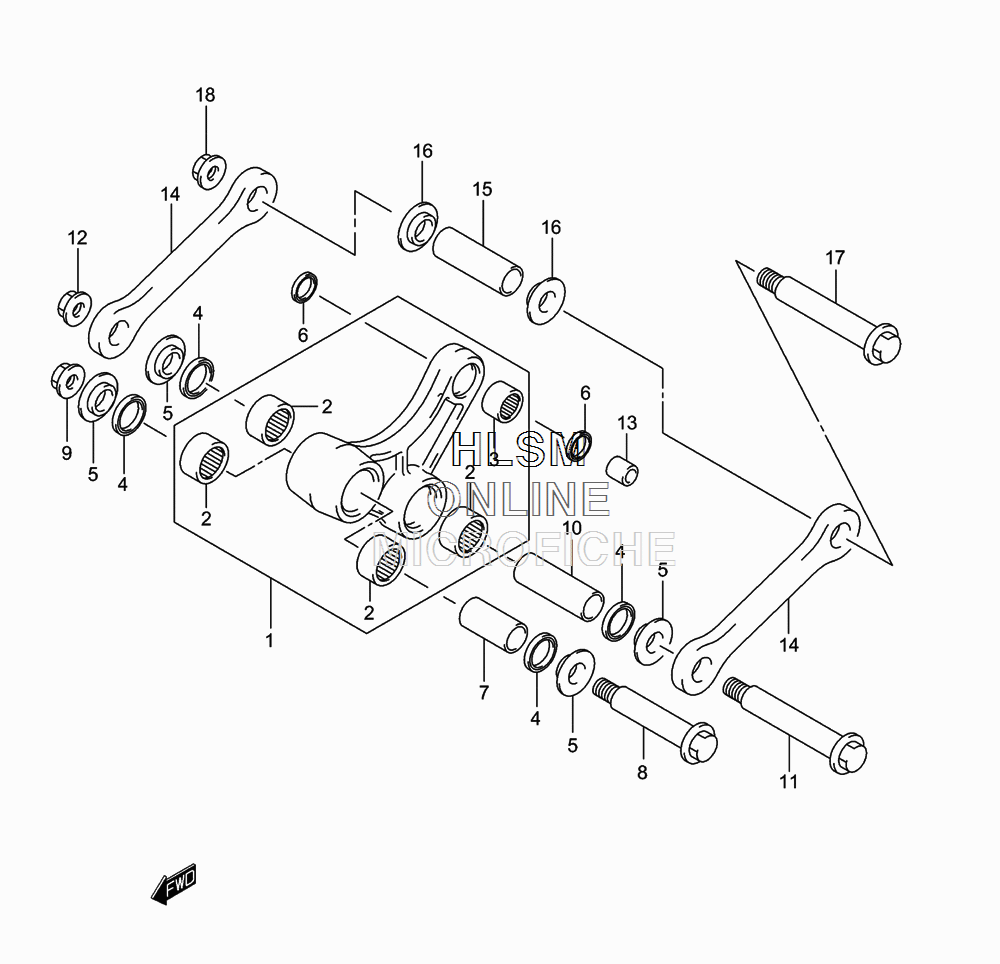

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki RM250K3 - 2003 года выпуска`
-
№АртикулНазвание
-
162600-37850 LEVER SET, REAR CUSHION (INCL. 2-3)LEVER SET, REAR CUSHION (INCL. 2-3)
-
209263-20086 BEARING (20X27X15)BEARING (20X27X15)
-
309263-20083 BEARING (20X26X12)BEARING (20X26X12)
-
462624-14500 SEAL, DUST (19X27X4)SEAL, DUST (19X27X4)
-
562647-37F00 SPACERSPACER
-
609284-20001 SEAL, REAR (20X26X4.5)SEAL, REAR (20X26X4.5)
-
762317-37F00 SPACER, FRONT (15X20X31)SPACER, FRONT (15X20X31)
-
862658-37E01 BOLT, FRONT (12X76)BOLT, FRONT (12X76)
-
909159-12056 NUTNUT
-
1062646-37F00 SPACER, CENTER (15X20X44)SPACER, CENTER (15X20X44)
-
1162621-37F00 BOLT, CENTER (12X100)BOLT, CENTER (12X100)
-
1209159-12056 NUTNUT
-
1362684-36E00 SPACER, REAR CUSHION LEVERSPACER, REAR CUSHION LEVER
-
1462641-37F00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1562646-37F00 SPACER, ROD (15X20X44)SPACER, ROD (15X20X44)
-
1662647-37F00 SPACERSPACER
-
1762621-37F00 BOLT, RODBOLT, ROD
-
1809159-12056 NUTNUT
