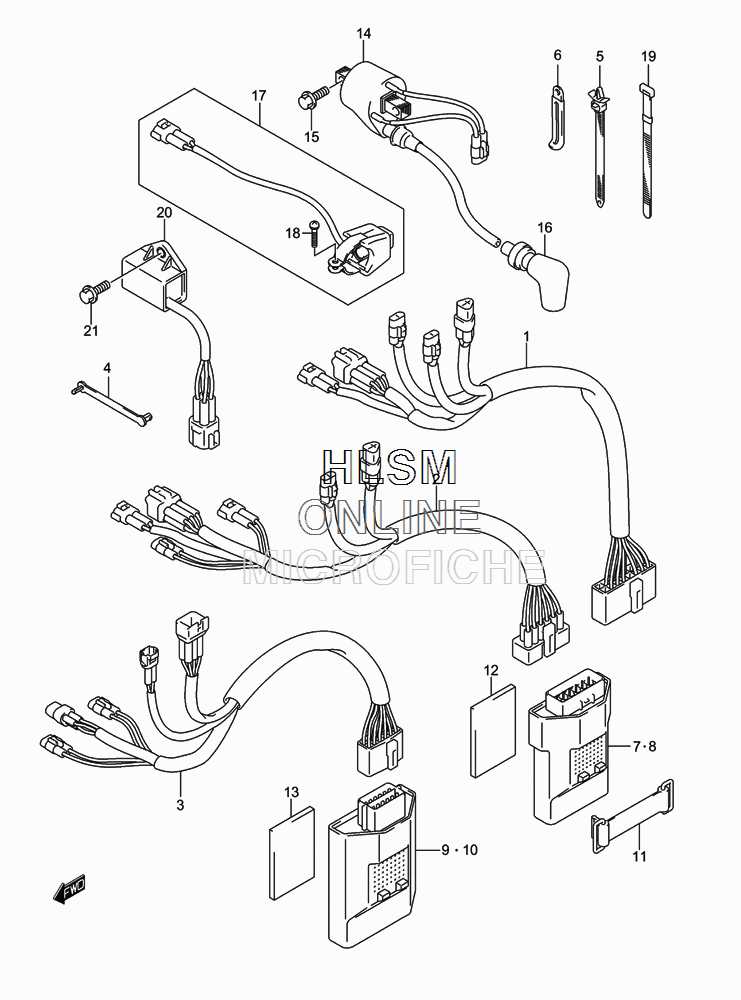

ELECTRICAL для Suzuki RM250K3 - 2003 года выпуска`
-
№АртикулНазвание
-
336610-37F20 HARNESS, WIRINGHARNESS, WIRING
-
436651-48E00 CLAMPCLAMP
-
509407-11402 CLAMP (L:90)CLAMP (L:90)
-
509407-14403 CLAMP (L:125)CLAMP (L:125)
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
509407-25401 CLAMP (L:235)CLAMP (L:235)
-
609404-06429 CLAMP (L:45)CLAMP (L:45)
-
932900-37F20 CDI, UNITCDI, UNIT
-
1132942-14301 BAND, CDI UNITBAND, CDI UNIT
-
1333651-37000 PROTECTOR (170X95X3.0) (CUT AS REQUIRED PROFILE) (40X85)PROTECTOR (170X95X3.0) (CUT AS REQUIRED PROFILE) (40X85)
-
1433410-37E00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1509103-06234 BOLT, IGNITION (6X16)BOLT, IGNITION (6X16)
-
1633510-20A02 CAP, SPARK PLUGCAP, SPARK PLUG
-
1737820-36E00 SWITCH ASSY, ENGINE STOP (INCL. 18)SWITCH ASSY, ENGINE STOP (INCL. 18)
-
1802112-33165 SCREWSCREW
-
1909407-12402 CLAMP, ENGINE STOP (L:128)CLAMP, ENGINE STOP (L:128)
-
2101547-06123 BOLTBOLT
