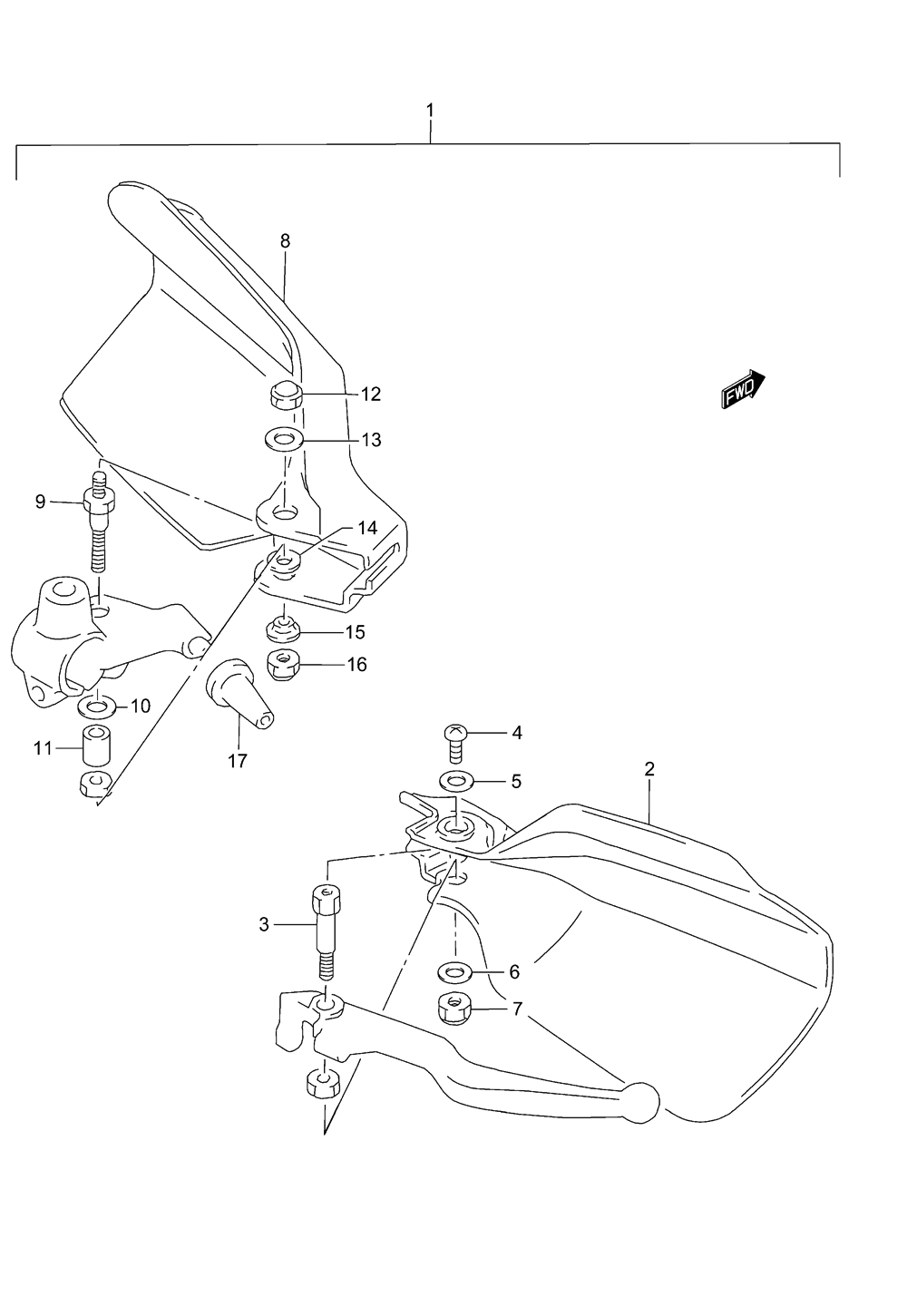

KNUCKLE COVER (OPTION) для Suzuki DR200SEK3 - 2003 года выпуска`
-
№АртикулНазвание
-
157300-05810-YU1 COVER SET, KNUCKLE (YELLOW, YU1 FOR YU1)COVER SET, KNUCKLE (YELLOW, YU1 FOR YU1)
-
157300-05810-YJ4 COVER SET, KNUCKLE (BLUE, YJ4 FOR N9J)COVER SET, KNUCKLE (BLUE, YJ4 FOR N9J)
-
257341-05D00-YU1 COVER, KNUCKLE RIGHT HAND (YELLOW, YU1 FOR YU1)COVER, KNUCKLE RIGHT HAND (YELLOW, YU1 FOR YU1)
-
257341-05D00-YJ4 COVER, KNUCKLE RIGHT HAND (BLUE, YJ4 FOR N9J)COVER, KNUCKLE RIGHT HAND (BLUE, YJ4 FOR N9J)
-
357431-05D00 BOLTBOLT
-
402142-05107 SCREWSCREW
-
509160-05043 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
609160-06130 WASHER (6.5X16X1.6)WASHER (6.5X16X1.6)
-
708319-21068 NUTNUT
-
857541-31D00-YU1 COVER, KNUCKLE LEFT HAND (YELLOW, YU1 FOR YU1)COVER, KNUCKLE LEFT HAND (YELLOW, YU1 FOR YU1)
-
857541-31D00-YJ4 COVER, KNUCKLE LEFT HAND (BLUE, YJ4 FOR N9J)COVER, KNUCKLE LEFT HAND (BLUE, YJ4 FOR N9J)
-
957531-44B01 BOLTBOLT
-
1057533-44B00 WASHERWASHER
-
1157532-44B00 SPACERSPACER
-
1208313-10067 NUTNUT
-
1309160-06066 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1409160-06019 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
1509169-06055 WASHERWASHER
-
1608319-21068 NUTNUT
-
1758273-31000 BOOT, CLUTCH CABLEBOOT, CLUTCH CABLE
