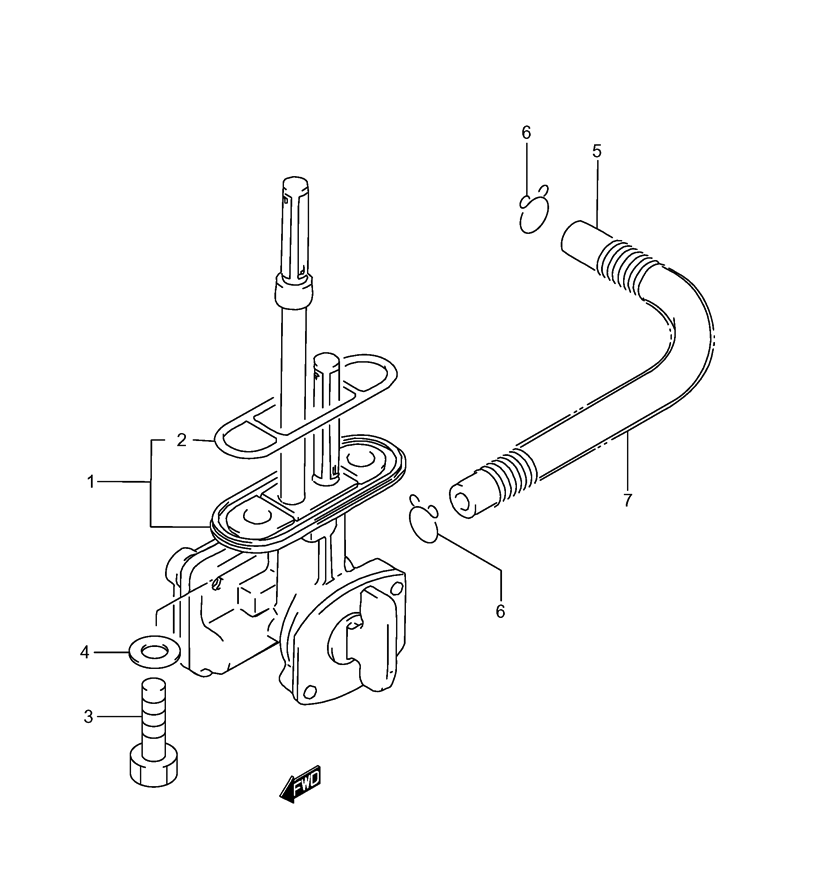

FUEL COCK ASSY. для Suzuki DR200SEK3 - 2003 года выпуска
-
№АртикулНазвание
-
144300-44AB0 COCK ASSY, FUELCOCK ASSY, FUEL
-
244348-87420 O RINGO RING
-
309128-06006 SCREW (6X20)SCREW (6X20)
-
409168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
509352-50823-600 HOSE (L:600!160) (EXCEPT CALIF)HOSE (L:600!160) (EXCEPT CALIF)
-
509352-50823-600 HOSE (L:600!180) (CALIF ONLY)HOSE (L:600!180) (CALIF ONLY)
-
609401-08401 CLIPCLIP
-
709440-10009 SPRINGSPRING
