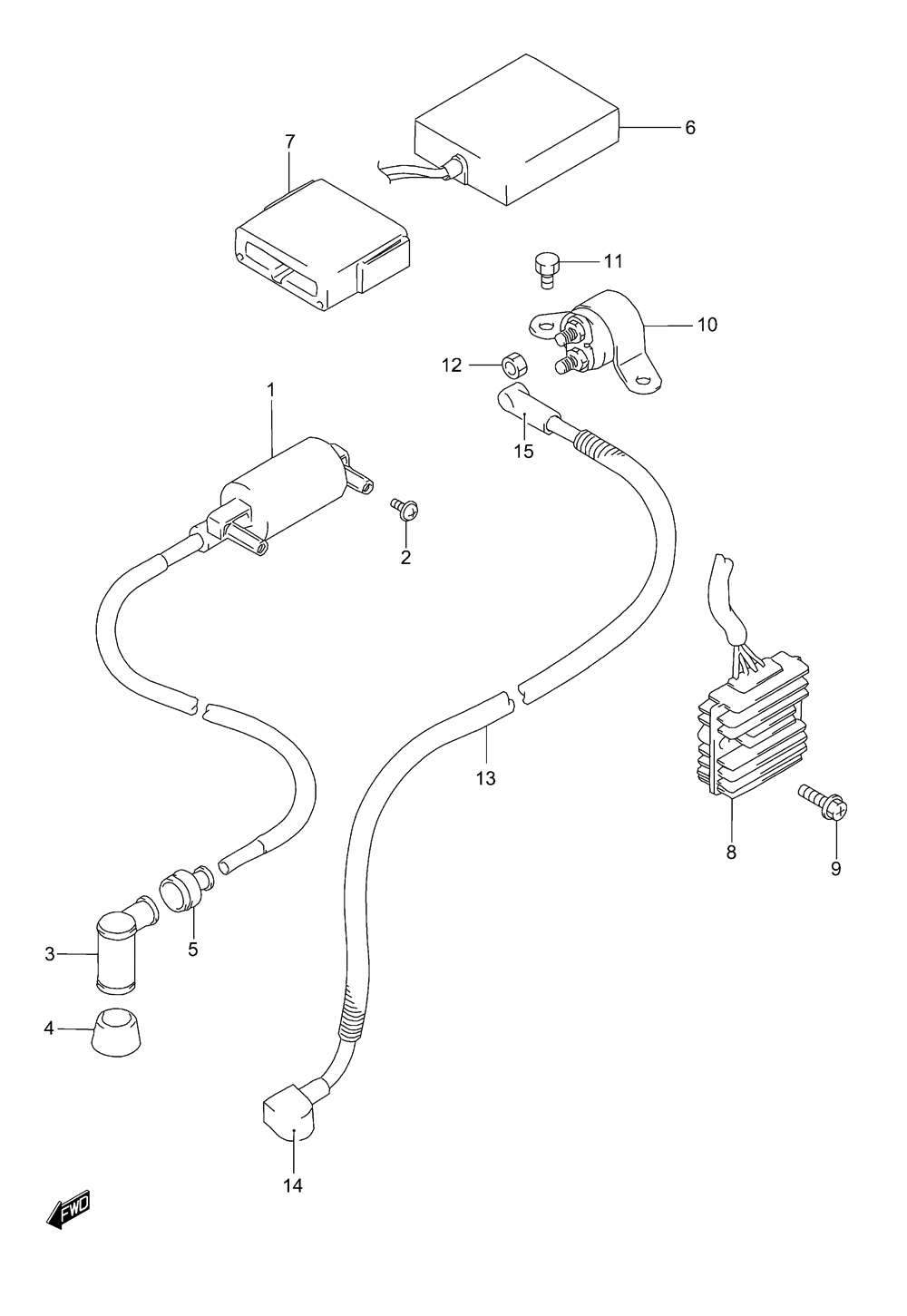

ELECTRICAL для Suzuki DR200SEK3 - 2003 года выпуска`
-
№АртикулНазвание
-
133410-05350 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
202142-05103 SCREWSCREW
-
333510-22010 CAP, SPARK PLUGCAP, SPARK PLUG
-
433541-24510 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
533542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
632900-42A30 CDI UNITCDI UNIT
-
732980-44A00 CUSHION, CDI UNITCUSHION, CDI UNIT
-
832800-08D10 RECTIFIERRECTIFIER
-
902162-06253 BOLTBOLT
-
1031800-15501 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
1109128-06044 SCREW (6X10)SCREW (6X10)
-
1208361-35068 NUTNUT
-
1333810-44A00 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
1431861-06C00 CAP, STARTER MOTOR TERMINALCAP, STARTER MOTOR TERMINAL
-
1531861-10D00 CAP, STARTER RELAYCAP, STARTER RELAY
