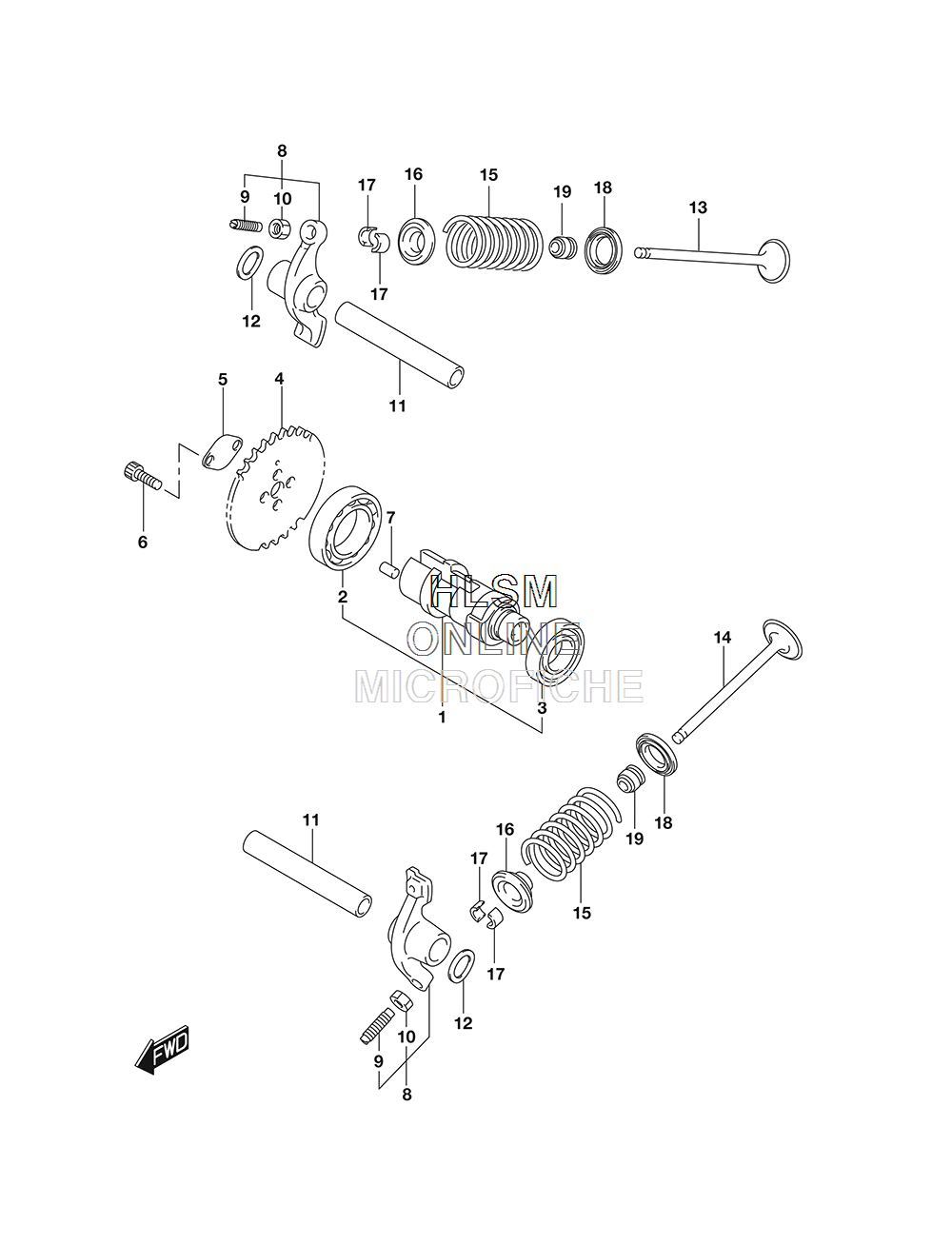

CAM SHAFT - W/ VALVES для Suzuki LT-Z90L8 QUADSPORT Z90 - 2018 года выпуска`
-
№АртикулНазвание
-
112710-08H00 CAMSHAFTCAMSHAFT
-
209262-15041 ...BEARING (15X32X9)...BEARING (15X32X9)
-
308113-69050 ...BEARING...BEARING
-
412741-33G00 SPROCKET, CAMSHAFTSPROCKET, CAMSHAFT
-
512714-08H00 WASHERWASHER
-
609106-05028 BOLT (5X15)BOLT (5X15)
-
709261-05005 PIN (5X8)PIN (5X8)
-
812840-33G40 ARM, VALVE ROCKERARM, VALVE ROCKER
-
912842-33G40 ...SCREW, TAPPET ADJUSTING...SCREW, TAPPET ADJUSTING
-
1012843-33G40 ...NUT, TAPPET ADJUSTING...NUT, TAPPET ADJUSTING
-
1112861-33G00 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1209164-10012 WASHERWASHER
-
1312911-08H00 VALVE, INTAKEVALVE, INTAKE
-
1412912-08H00 VALVE, EXHAUSTVALVE, EXHAUST
-
1512921-28G20 SPRING, VALVESPRING, VALVE
-
1612931-09G10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1712932-39J10 COTTER, VALVECOTTER, VALVE
-
1812933-09G10 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1909289-05008 OIL SEAL, (5X10.5X8.4)OIL SEAL, (5X10.5X8.4)
