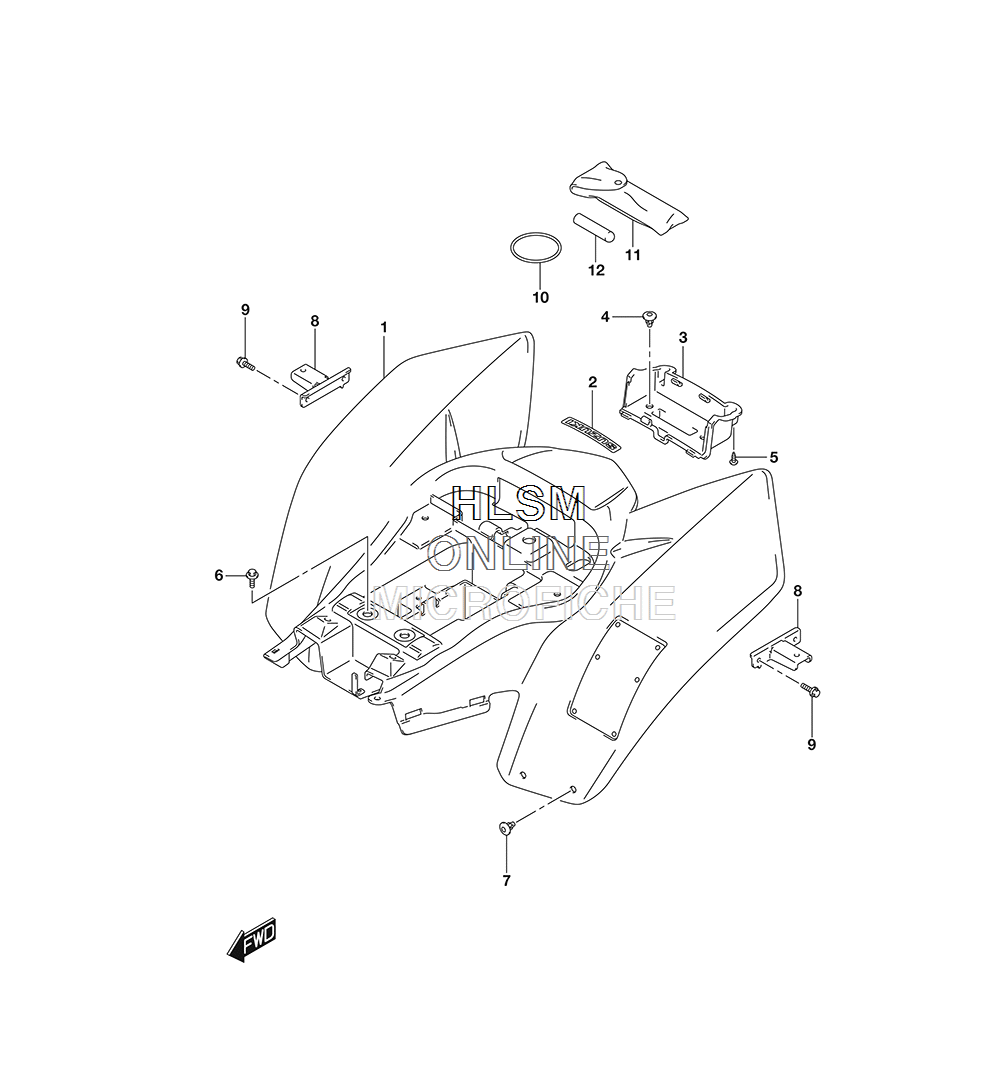

FENDER - REAR для Suzuki LT-Z90L8 QUADSPORT Z90 - 2018 года выпуска
-
№АртикулНазвание
-
163111-08H00-019 FENDER, REAR (019 - BLACK)FENDER, REAR (019 - BLACK)
-
268721-09A00-BJB EMBLEM (BJB - BLACK/WHITE)EMBLEM (BJB - BLACK/WHITE)
-
363121-08H00 FENDER, REAR LOWERFENDER, REAR LOWER
-
409409-07333 CLIPCLIP
-
503541-0516A SCREWSCREW
-
609111-06081 BOLT (6X18)BOLT (6X18)
-
709409-08335 CLIPCLIP
-
863130-08H00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
901550-0620A BOLTBOLT
-
1009280-70004 O RING (D:3.53,ID:69.44)O RING (D:3.53,ID:69.44)
-
1196510-08H00 TOOL ASSYTOOL ASSY
