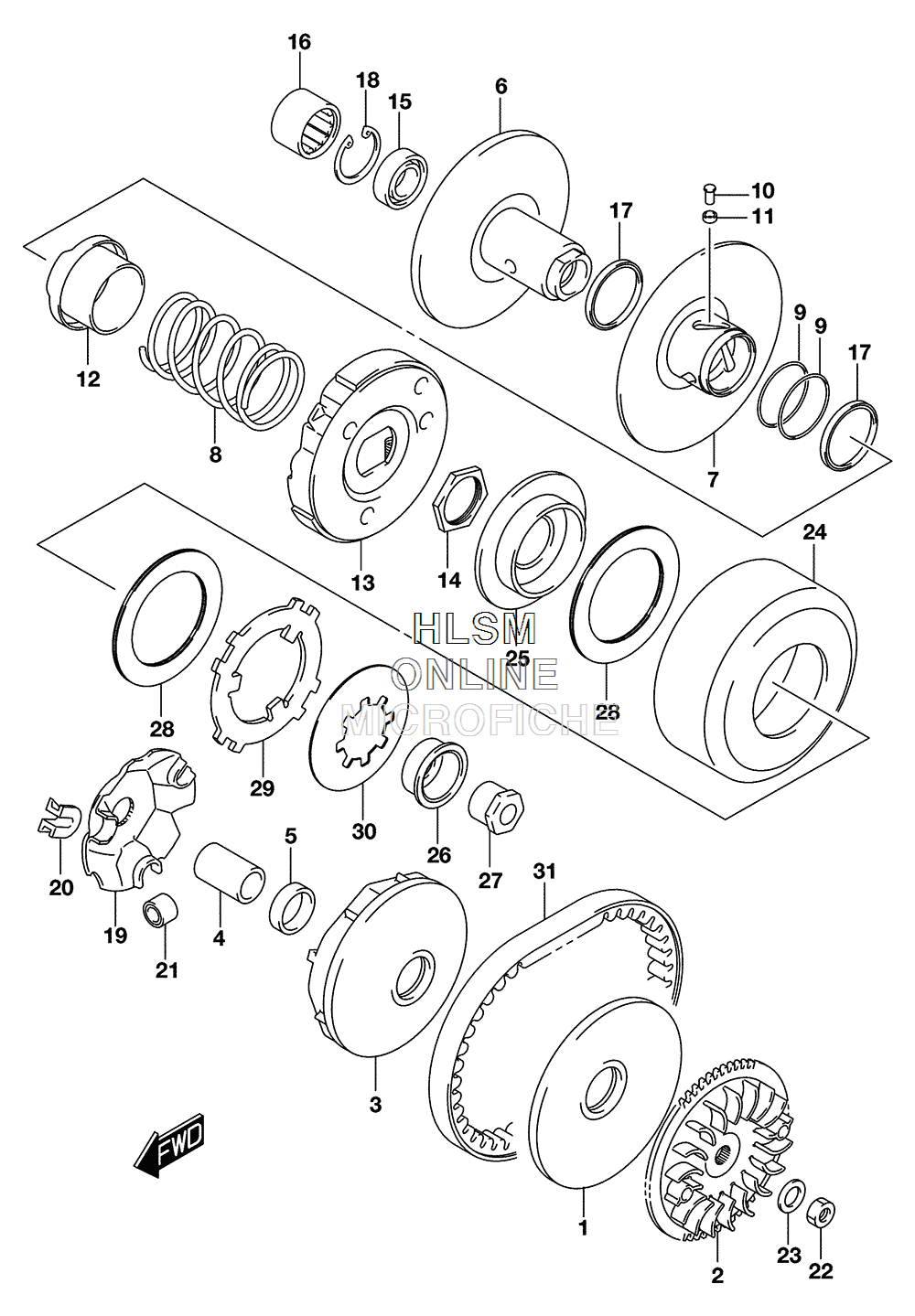

TRANSMISSION (1) для Suzuki QUADSPORT Z90 [LTZ90L6] - 2016 года выпуска`
-
№АртикулНазвание
-
121111-08H00 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
221113-08H00 FAN, FIXED DRIVE FACE (NT:36)FAN, FIXED DRIVE FACE (NT:36)
-
321120-33G00 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
421125-33G00 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
521128-08H00 SPACER, MOVABLE DRIVE STOPPERSPACER, MOVABLE DRIVE STOPPER
-
621210-33G00 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
721240-33G01 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
821243-33G00 SPRING, MOVABLE DRIVENSPRING, MOVABLE DRIVEN
-
921245-33G00 O RING, MOVABLE DRIVENO RING, MOVABLE DRIVEN
-
1021248-33G00 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
1121249-33G00 SPACER, MOVABLE DRIVENSPACER, MOVABLE DRIVEN
-
1221471-33G00 SHEET, MOVABLE DRIVENSHEET, MOVABLE DRIVEN
-
1321501-08H00 CLUTCH ASSY, SHOECLUTCH ASSY, SHOE
-
1409140-28004 NUTNUT
-
1509262-15035 BEARING (15X24X5)BEARING (15X24X5)
-
1609263-20093 BEARING (20X26X14)BEARING (20X26X14)
-
1709284-34003 SEAL, OIL (34X39X3)SEAL, OIL (34X39X3)
-
1809381-24005 CIRCLIPCIRCLIP
-
1921431-33G00 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
2021481-14F00 DAMPER, MOVABLE DRIVE PLATEDAMPER, MOVABLE DRIVE PLATE
-
2121650-21F70 ROLLER, MOVABLE DRIVEROLLER, MOVABLE DRIVE
-
2209140-12039 NUTNUT
-
2309164-12020 WASHERWASHER
-
2421220-29A01 HOUSING, CLUTCHHOUSING, CLUTCH
-
2521411-08H00 HUB, LIMITER CLUTCHHUB, LIMITER CLUTCH
-
2621412-08H00 STOPPER, LIMITER CLUTCHSTOPPER, LIMITER CLUTCH
-
2721413-08H00 NUT, CLUTCH HOUSINGNUT, CLUTCH HOUSING
-
2821441-29A01 PLATE, LIMITER CLUTCH FRICTIONPLATE, LIMITER CLUTCH FRICTION
-
2921461-29A01 PLATE, LIMITER CLUTCH PRESSUREPLATE, LIMITER CLUTCH PRESSURE
-
3009164-30003 SPRINGSPRING
-
3127601-33G00 V-BELT, DRIVEV-BELT, DRIVE
