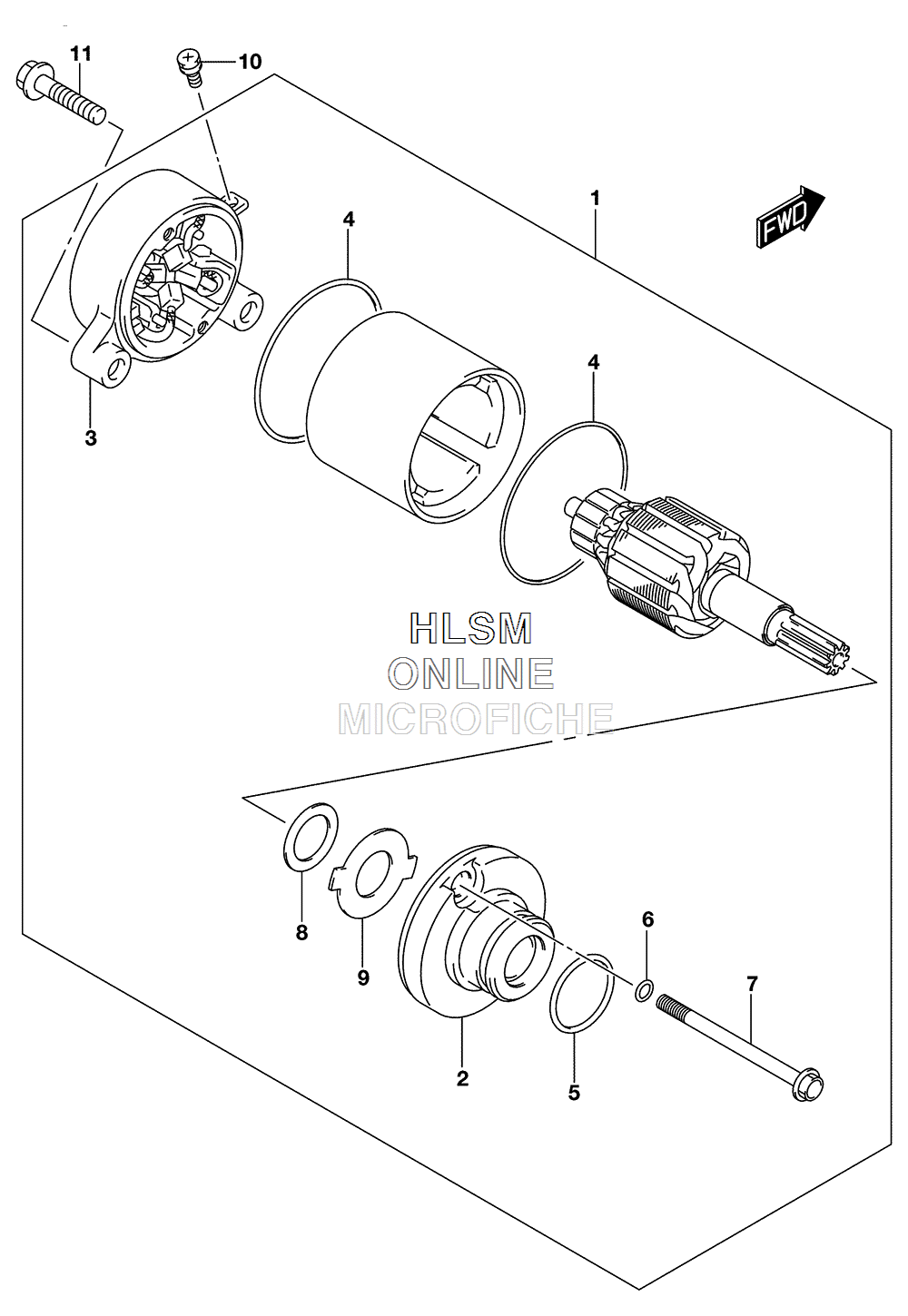

STARTING MOTOR для Suzuki QUADSPORT Z90 [LTZ90L6] - 2016 года выпуска`
-
№АртикулНазвание
-
131100-33G01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231150-33G00 ...BRACKET...BRACKET
-
331175-33G01 ...FRAME ASSY, COMMUTATOR END...FRAME ASSY, COMMUTATOR END
-
431264-05530 ...O RING...O RING
-
509280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
631156-05530 ...O RING...O RING
-
731281-33G00 ...BOLT...BOLT
-
831361-055A0 ...SHIM...SHIM
-
931361-055B0 ...PLATE, LOCK...PLATE, LOCK
-
1009137-05004 SCREW (5X8)SCREW (5X8)
-
1101547-0625B BOLTBOLT
