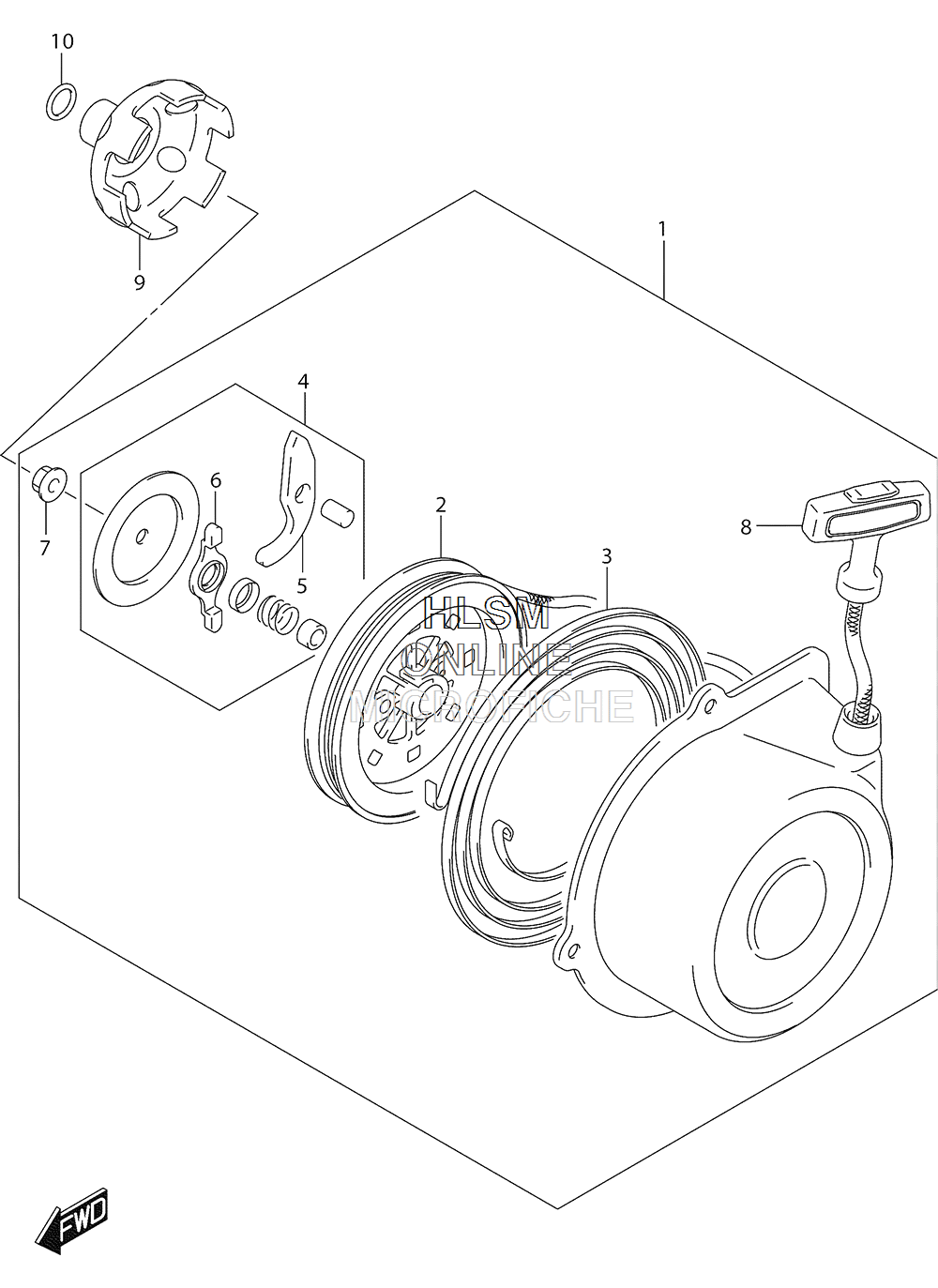

OPTIONAL - RECOIL STARTER для Suzuki KINGQUAD 500 AXI (POWER STEERING) [LTA500XPL6] - 2016 года выпуска
-
№АртикулНазвание
-
118100-24503 STARTER ASSY, RECOILSTARTER ASSY, RECOIL
-
218120-24500 ...REEL...REEL
-
318142-24400 ...SPRING, SPIRAL...SPRING, SPIRAL
-
418130-24400 ...RATCHET SET...RATCHET SET
-
518131-24411 ......RATCHET......RATCHET
-
618132-24400 ......GUIDE, RATCHET......GUIDE, RATCHET
-
708316-1006A ...NUT...NUT
-
818200-24501 ...ROPE ASSY...ROPE ASSY
-
918410-09F02 CUP, STARTERCUP, STARTER
-
1009280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
