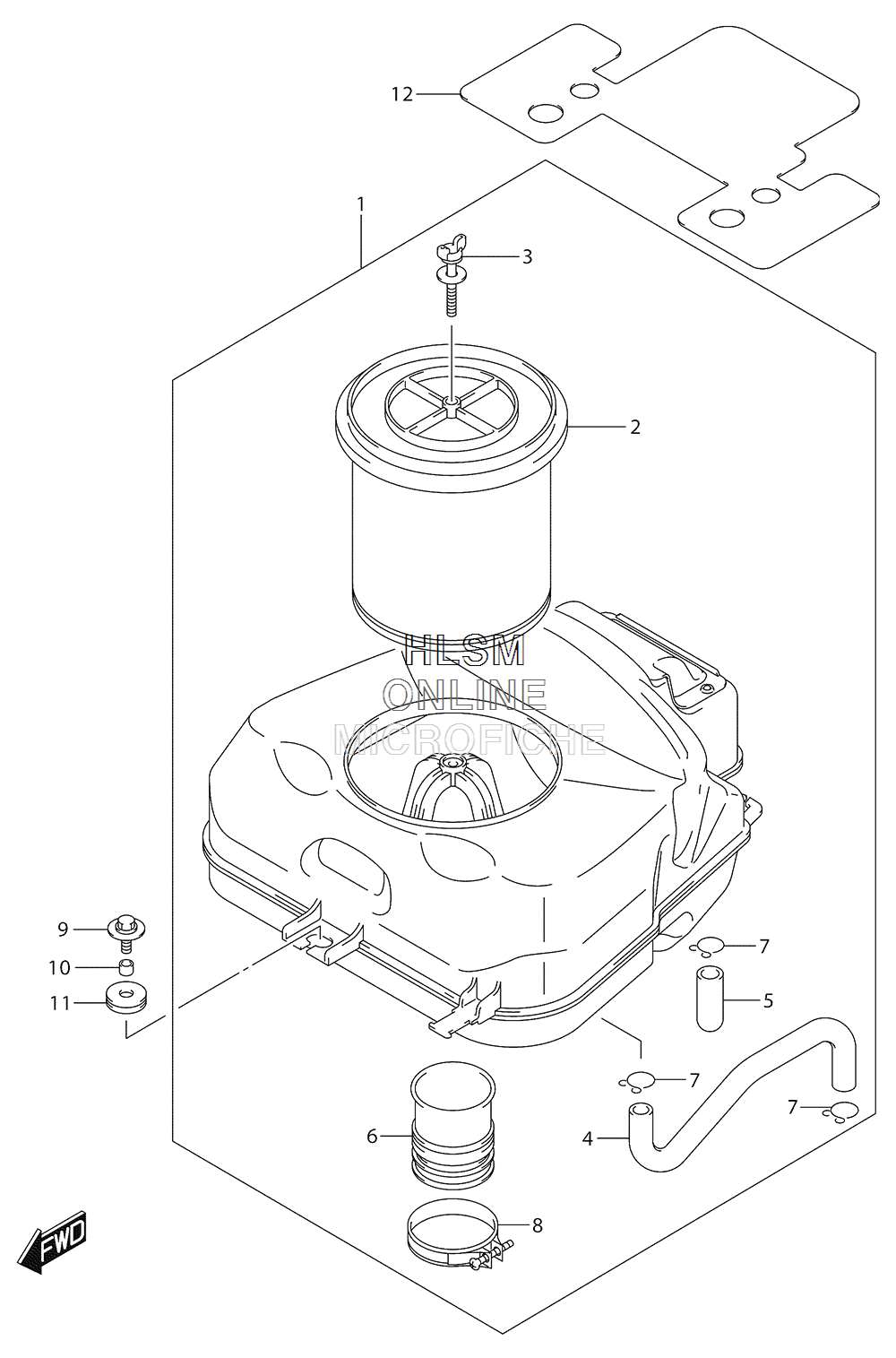

AIR CLEANER для Suzuki KINGQUAD 500 AXI (POWER STEERING) [LTA500XPL6] - 2016 года выпуска
-
№АртикулНазвание
-
113700-11H30 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-31G30 ...FILTER ASSY...FILTER ASSY
-
313831-31G00 ...BOLT, WING...BOLT, WING
-
413853-31G00 ...TUBE, BREATHER...TUBE, BREATHER
-
513878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
613881-11H01 ...TUBE, OUTLET...TUBE, OUTLET
-
709401-14101 ...CLIP...CLIP
-
809402-52208 ...CLAMP...CLAMP
-
909116-06149 BOLT (6X20)BOLT (6X20)
-
1009180-06248 SPACER (6.1X8X9.5)SPACER (6.1X8X9.5)
-
1109320-08028 CUSHIONCUSHION
-
1213841-11H00 SHEET, AIR CLEANER INLETSHEET, AIR CLEANER INLET
