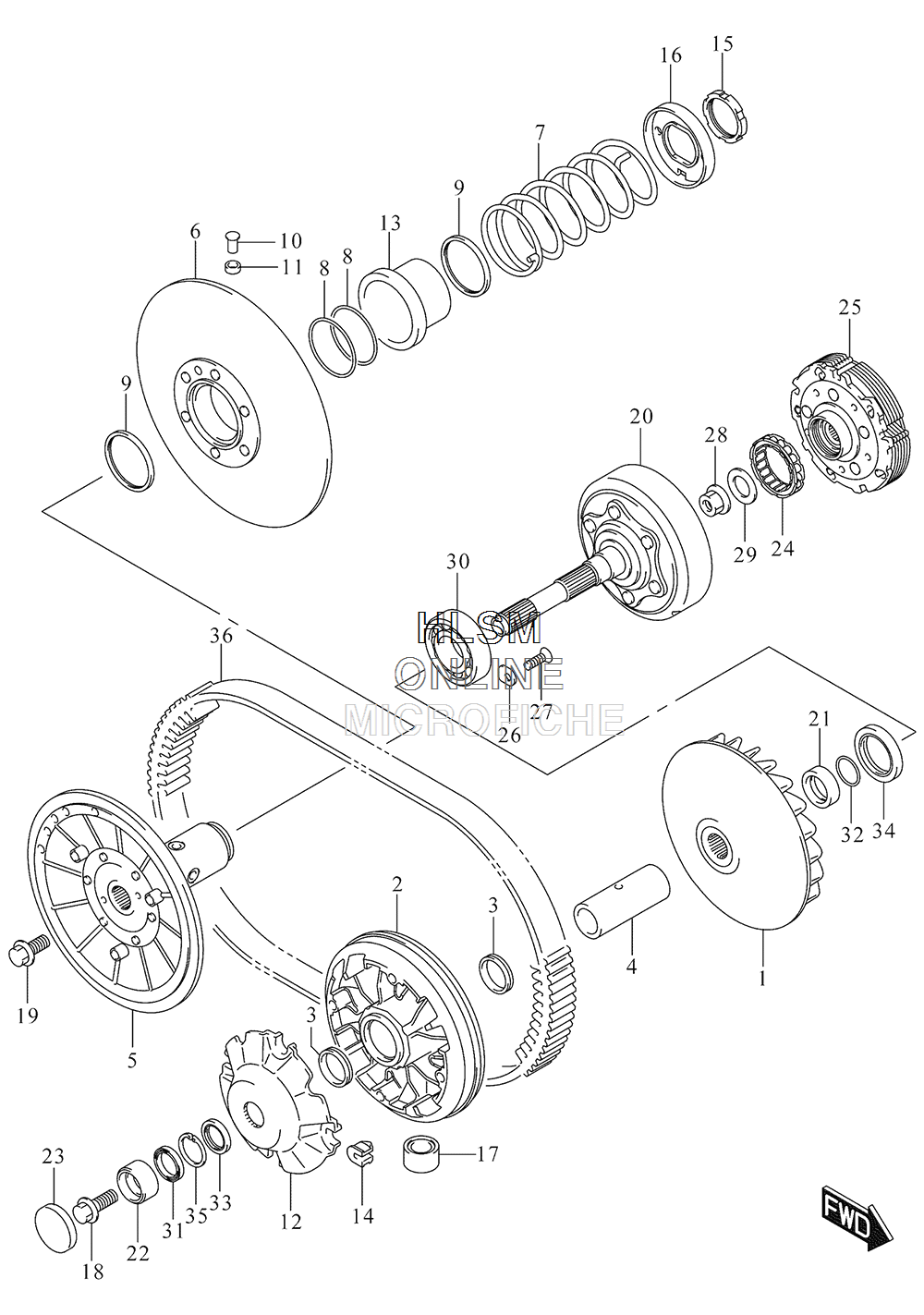

TRANSMISSION (1) для Suzuki LTA500XPZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
121110-11H00 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
221120-11H00 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
321124-15F00 SEAL, MOVABLE DRIVE FACESEAL, MOVABLE DRIVE FACE
-
421125-11H50 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
521210-11H00 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
621240-11H10 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
721243-38F10 SPRING, MOVABLE DRIVENSPRING, MOVABLE DRIVEN
-
821245-38F00 O-RING, MOVABLE DRIVENO-RING, MOVABLE DRIVEN
-
921247-38F00 SEAL, MOVABLE DRIVENSEAL, MOVABLE DRIVEN
-
1021248-15F01 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
1121249-15F00 SPACER, MOVABLE DRIVENSPACER, MOVABLE DRIVEN
-
1221431-11H00 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
1321471-38F10 SHEET, MOVABLE DRIVENSHEET, MOVABLE DRIVEN
-
1421481-14F00 DAMPER, MOVABLE DRIVEDAMPER, MOVABLE DRIVE
-
1521518-38F00 NUT, DRIVEN PULLEY SPRINGNUT, DRIVEN PULLEY SPRING
-
1621519-38F10 HOLDER, MOVABLE DRIVENHOLDER, MOVABLE DRIVEN
-
1721650-09F51 ROLLER, MOVABLE DRIVENROLLER, MOVABLE DRIVEN
-
1809103-12028 BOLT (12X30)BOLT (12X30)
-
1909103-12049 BOLT (12X25)BOLT (12X25)
-
2021100-11H00 HOUSING, CLUTCHHOUSING, CLUTCH
-
2121102-31G00 SPACER, PRIMARY SHAFTSPACER, PRIMARY SHAFT
-
2221106-31G10 SPACER, CLUTCH HOUSINGSPACER, CLUTCH HOUSING
-
2321107-31G00 CAP, V-BELT BEARINGCAP, V-BELT BEARING
-
2421273-44D00 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
2521500-11H10 CLUTCH ASSY, SHOECLUTCH ASSY, SHOE
-
2624741-20A00 RETAINER, CL HSG BRGRETAINER, CL HSG BRG
-
2709126-06011 SCREW (6X12)SCREW (6X12)
-
2809159-18023 NUTNUT
-
2909164-18004 WASHERWASHER
-
3009262-25073 BEARING (25X62X17)BEARING (25X62X17)
-
3109262-35075 BEARING (35X47X7)BEARING (35X47X7)
-
3209280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
-
3309283-35051 OIL SEAL (35X47X5)OIL SEAL (35X47X5)
-
3409283-38025 OIL SEAL (38X56X7)OIL SEAL (38X56X7)
-
3508331-41479 CIRCLIPCIRCLIP
-
3627601-11H00 V-BELT, DRIVEV-BELT, DRIVE
