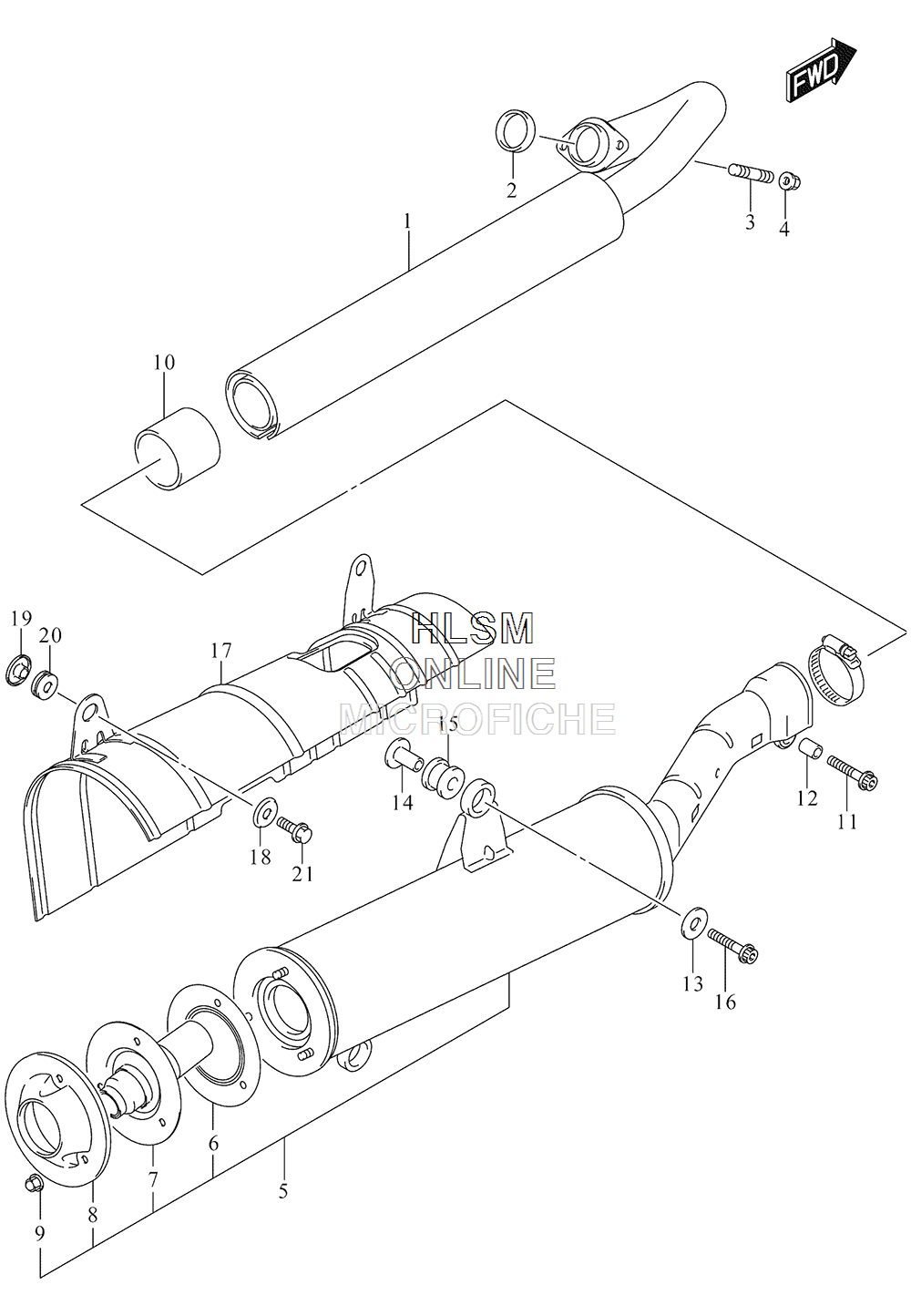

MUFFLER для Suzuki LTA500XPZL5 King Quad 500 AXi - 2015 года выпуска

№

Артикул

Название
1

14100-11H00 PIPE ASSY, EXH

PIPE ASSY, EXH
2

14181-18C00 GASKET, EXH PIPE

GASKET, EXH PIPE
3

01421-0820A STUD BOLT

STUD BOLT
4

08319-3108A NUT

NUT
5

14310-11H10 BODY, MUFFLER

BODY, MUFFLER
6

14770-11H00 .GASKET

.GASKET
7

14850-11H10 .ARRESTER

.ARRESTER
8

14852-11H00 .PLATE

.PLATE
9

08313-20067 .NUT

.NUT
10

14771-13E00 CONNECTOR, MUF JT

CONNECTOR, MUF JT
11

07120-0835A BOLT

BOLT
12

14424-07G01 SPACER

SPACER
13

09160-08503 WASHER (8.5X30X2.3)

WASHER (8.5X30X2.3)
14

09180-08152 SPACER (8.6X12X24.2)

SPACER (8.6X12X24.2)
15

09320-12071 CUSHION

CUSHION
16

07120-0840A BOLT

BOLT
17

14880-31G00 COVER, MUFFLER

COVER, MUFFLER
18

14184-07G00 WASHER, MUF COVER

WASHER, MUF COVER
19

14185-07G00 SPACER, MUF COVER

SPACER, MUF COVER
20

09320-08069 CUSHION

CUSHION
21

01550-0616A BOLT

BOLT
