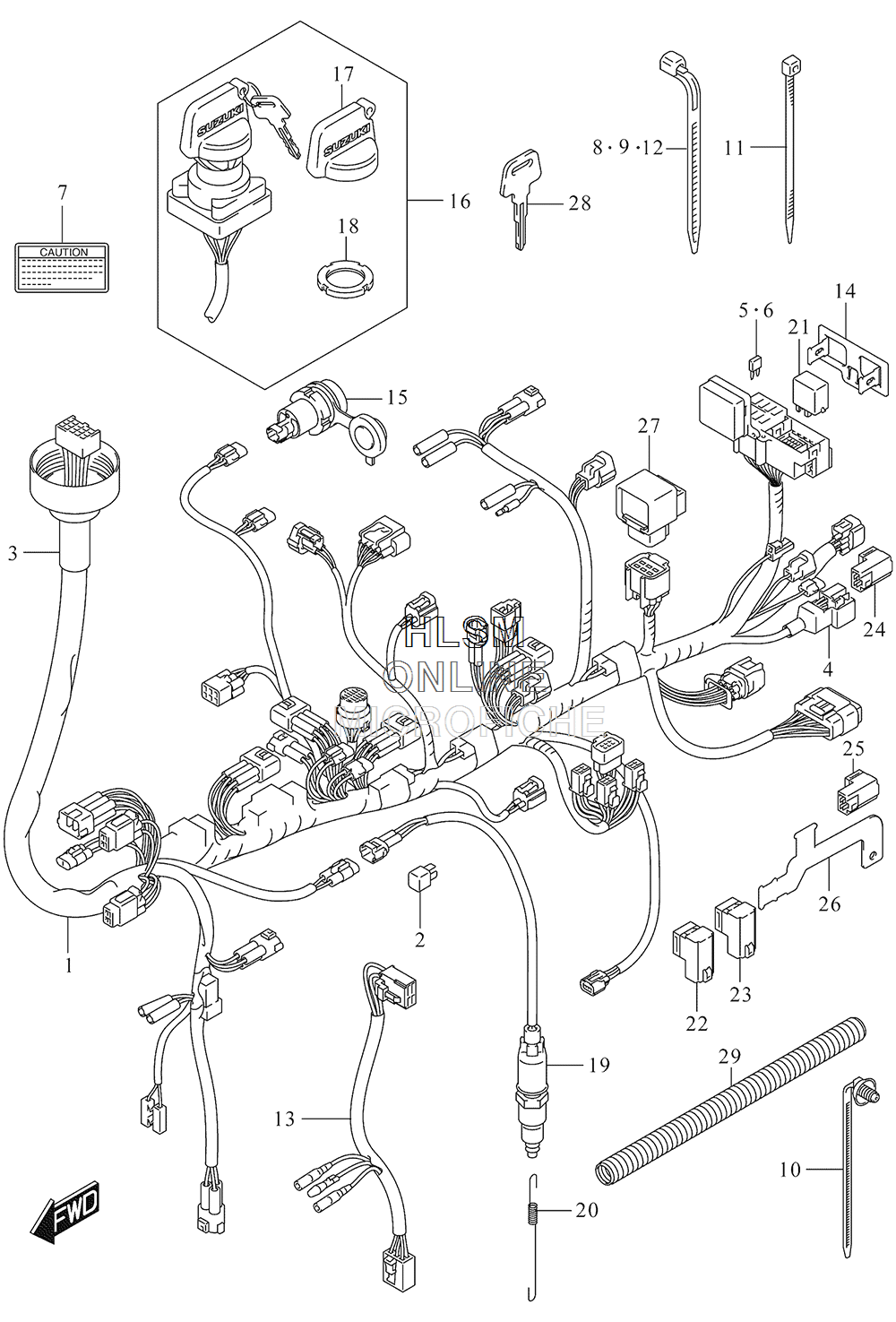

WIRING HARNESS (P33) для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска`
-
№АртикулНазвание
-
136610-11H60 HARNESS, WIRINGHARNESS, WIRING
-
232800-16A00 .RECTIFIER ASSY.RECTIFIER ASSY
-
336618-31G00 .COVER, SPEED.COVER, SPEED
-
436618-31G10 .COVER, CONNECTOR.COVER, CONNECTOR
-
509481-10501 .FUSE (10A).FUSE (10A)
-
609481-15501 .FUSE (15A).FUSE (15A)
-
738852-09F50 LABEL, POWER SOUECE TERMINALLABEL, POWER SOUECE TERMINAL
-
809407-11401 CLAMP (L:95)CLAMP (L:95)
-
909407-14403 CLAMP (L:125)CLAMP (L:125)
-
1009407-17403 CLAMP (L:154)CLAMP (L:154)
-
1109407-14407 CLAMP (L:145)CLAMP (L:145)
-
1209407-19401 CLAMP (L:190)CLAMP (L:190)
-
1336855-27H00 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1436744-31G00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1538850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1637110-38F00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1737142-19B00 .MASCOT, KEY.MASCOT, KEY
-
1837112-24500 .NUT.NUT
-
1937740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2009443-06080 SPRINGSPRING
-
2138730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2238740-31G01 RELAY ASSY (FOR NEUTRAL START)RELAY ASSY (FOR NEUTRAL START)
-
2338740-31G01 RELAY ASSY (FOR DEF LOCK)RELAY ASSY (FOR DEF LOCK)
-
2438740-31G01 RELAY ASSY (FOR FUEL PUMP)RELAY ASSY (FOR FUEL PUMP)
-
2538740-31G10 RELAY ASSY (FOR FAN MOTOR)RELAY ASSY (FOR FAN MOTOR)
-
2638741-31G30 BRACKET, RELAYBRACKET, RELAY
-
2738750-31G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2837146-19B00 KEY, BLANK TYPE (C) (OPT)KEY, BLANK TYPE (C) (OPT)
-
2837146-19B10 KEY, BLANK TYPE (D) (OPT)KEY, BLANK TYPE (D) (OPT)
-
2837146-19B20 KEY, BLANK TYPE (E) (OPT)KEY, BLANK TYPE (E) (OPT)
-
2837146-19B30 KEY, BLANK TYPE (F) (OPT)KEY, BLANK TYPE (F) (OPT)
-
2936619-31G00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
