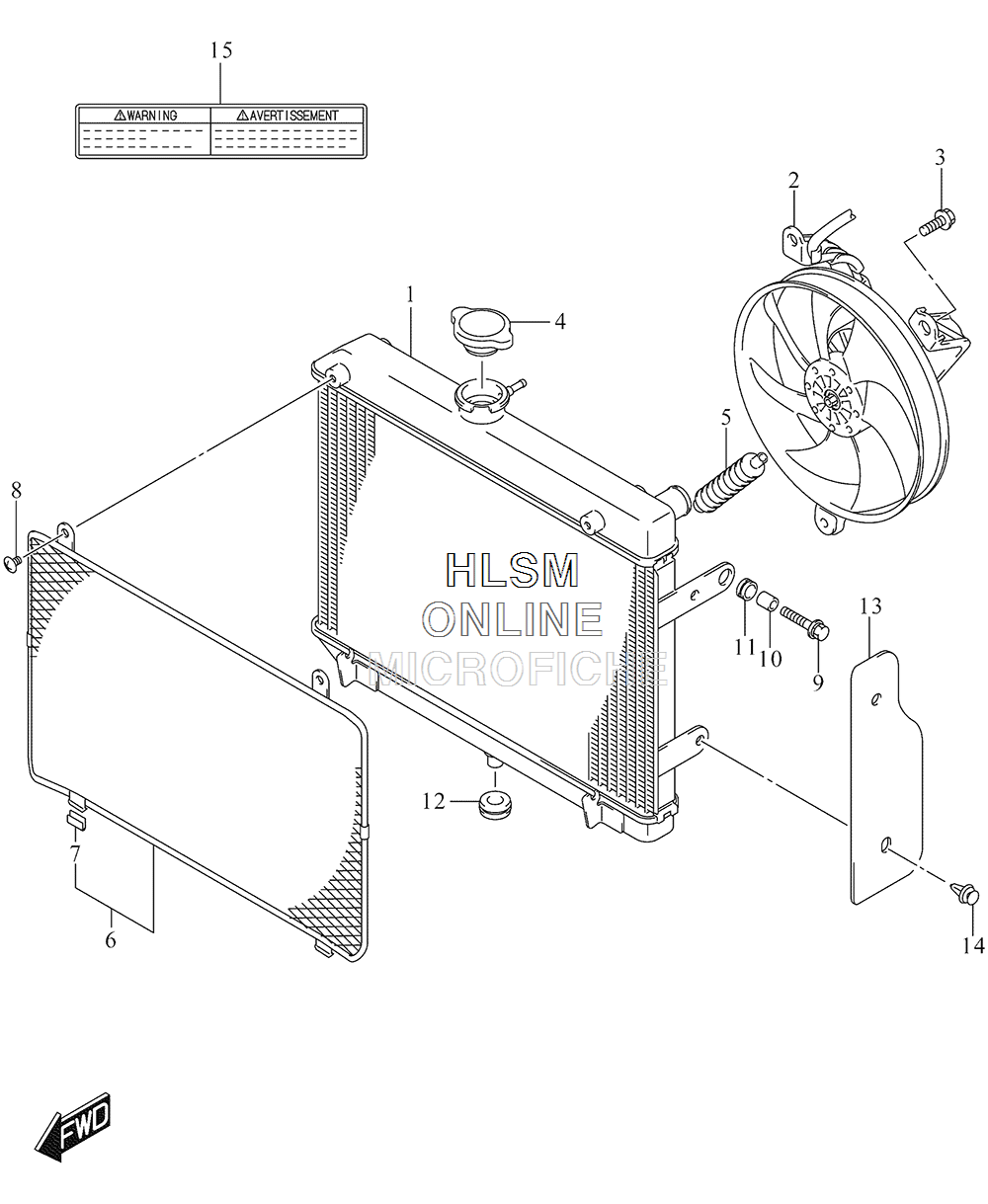

RADIATOR (P28) для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска`
-
№АртикулНазвание
-
117710-31G30 RADIATOR SET WATERRADIATOR SET WATER
-
217800-31G20 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
301550-0610A BOLTBOLT
-
417730-14G00 CAP ASSY, RADIATOR (1.1)CAP ASSY, RADIATOR (1.1)
-
517820-07G10 BOOT, RDTR FAN MOTORBOOT, RDTR FAN MOTOR
-
617760-09F00 COVER, RADIATORCOVER, RADIATOR
-
717765-09F00 .PROTECTOR.PROTECTOR
-
802142-0608A SCREWSCREW
-
909118-06097 BOLT (6X25)BOLT (6X25)
-
1009180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
1109320-10042 CUSHIONCUSHION
-
1209320-12036 CUSHIONCUSHION
-
1317811-31G00 GUARD, RADIATOR FANGUARD, RADIATOR FAN
-
1409409-07333 CLIPCLIP
-
1517991-02F40 LABEL, COOLING FANLABEL, COOLING FAN
