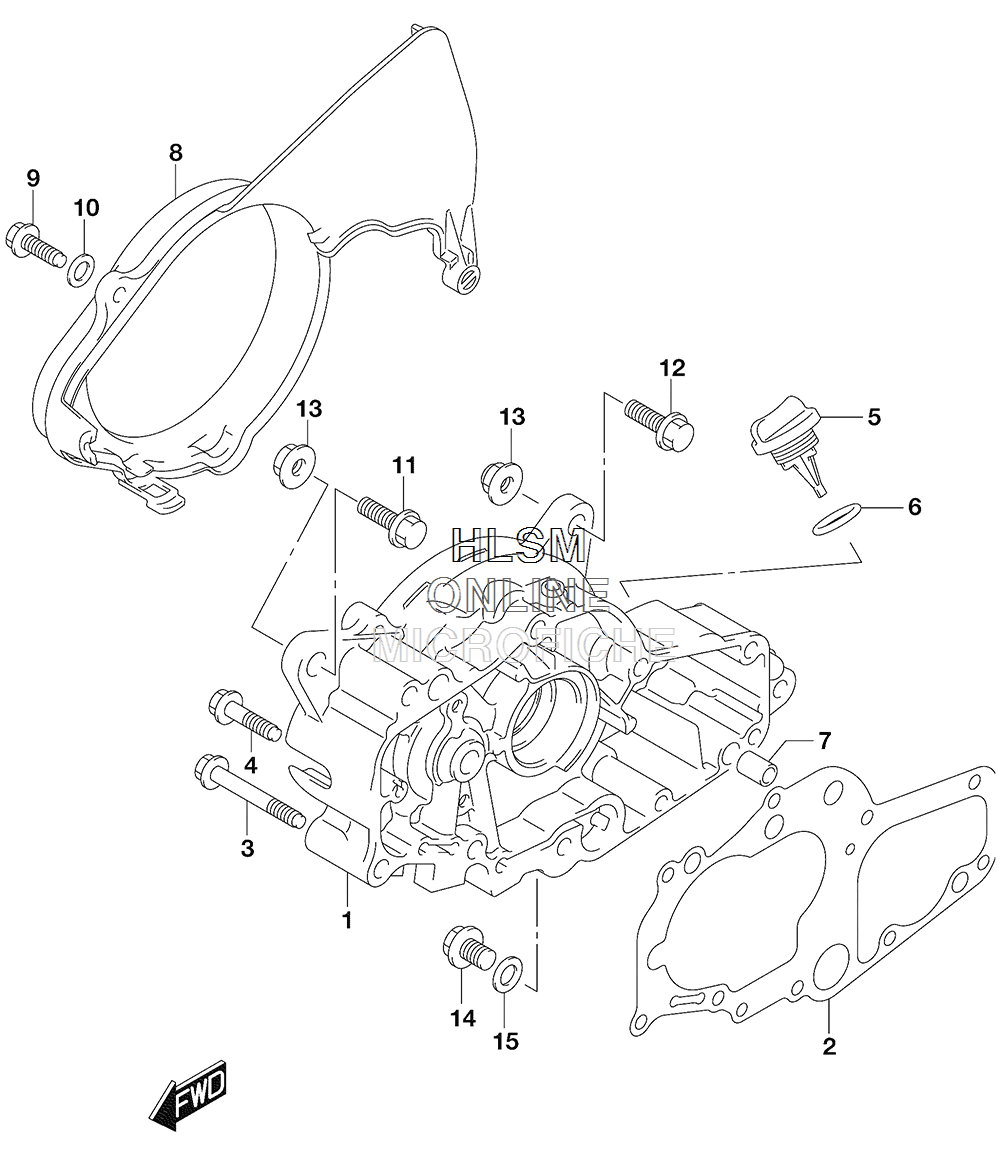

MAGNETO COVER для Suzuki LT-Z50L5 QUADSPORT Z50 - 2015 года выпуска
-
№АртикулНазвание
-
111351-43G00 CASE, MAGNETOCASE, MAGNETO
-
211483-22G00 GASKET, MAGNETO CASEGASKET, MAGNETO CASE
-
311358-22G00 BOLT, MAGNETO CASEBOLT, MAGNETO CASE
-
409103-06182 BOLT, 6X28BOLT, 6X28
-
511971-43G00 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
609280-17003 O RING, D:3.1 ID:16.8O RING, D:3.1 ID:16.8
-
704211-09149 PINPIN
-
811352-43G00 COVER, MAGNETOCOVER, MAGNETO
-
909103-06170 BOLT, 6X20BOLT, 6X20
-
1008322-0106B WASHERWASHER
-
1101550-0825B BOLTBOLT
-
1201550-0840B BOLTBOLT
-
1308319-3108B NUTNUT
-
1401550-0812B BOLTBOLT
-
1509168-08016 WASHERWASHER
