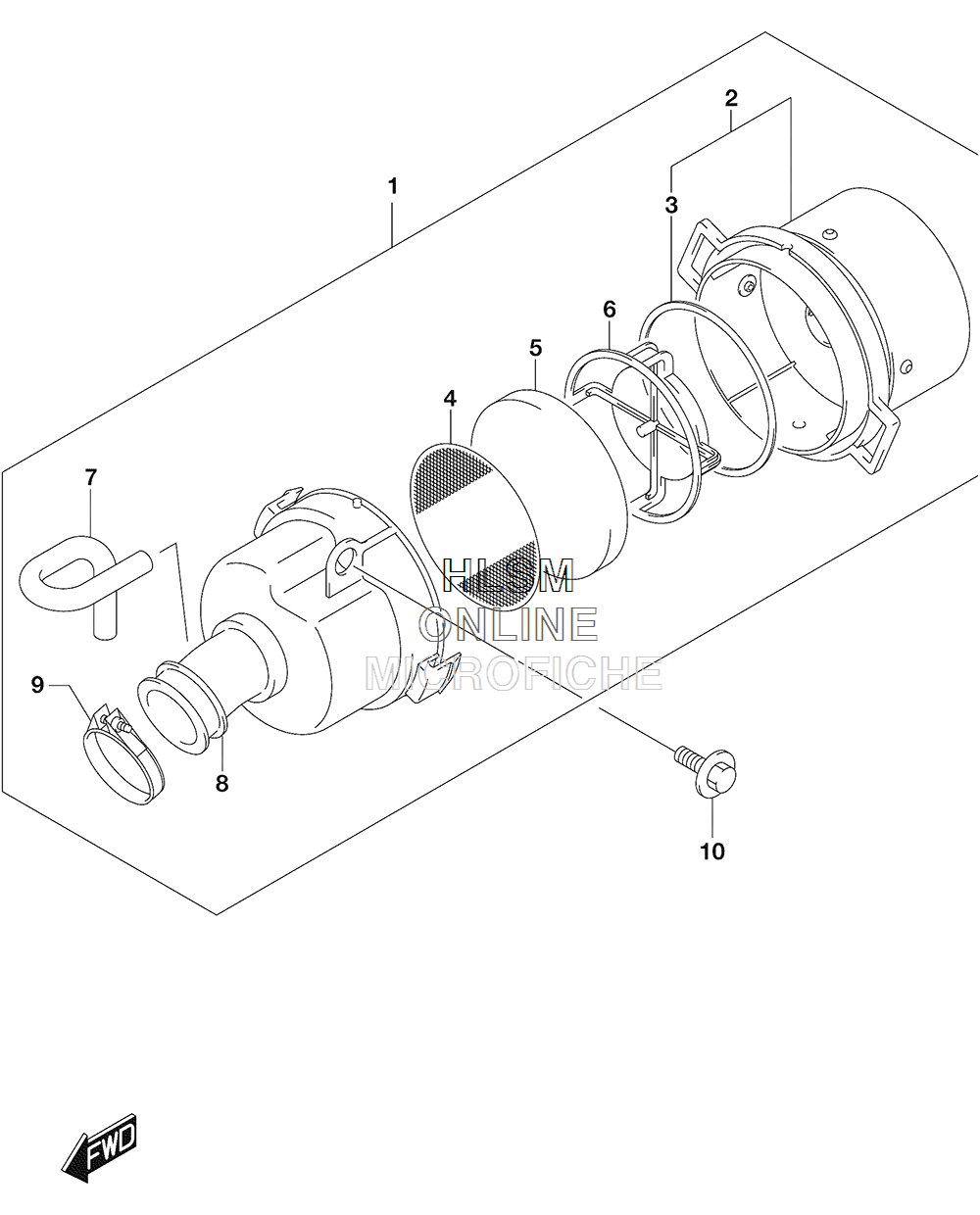

AIR CLEANER для Suzuki LT-Z50L5 QUADSPORT Z50 - 2015 года выпуска
-
№АртикулНазвание
-
113700-43G00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-43G00 CAPCAP
-
313746-43G00 GASKETGASKET
-
413743-43G00 MAD GUARDMAD GUARD
-
513781-43G00 FILTERFILTER
-
613811-43G00 TRAP, FLAMETRAP, FLAME
-
713853-43G00 TUBE, BREATHERTUBE, BREATHER
-
813881-43G00 TUBE, OUTLETTUBE, OUTLET
-
909402-36208 CLAMPCLAMP
-
1009111-06081 BOLTBOLT
