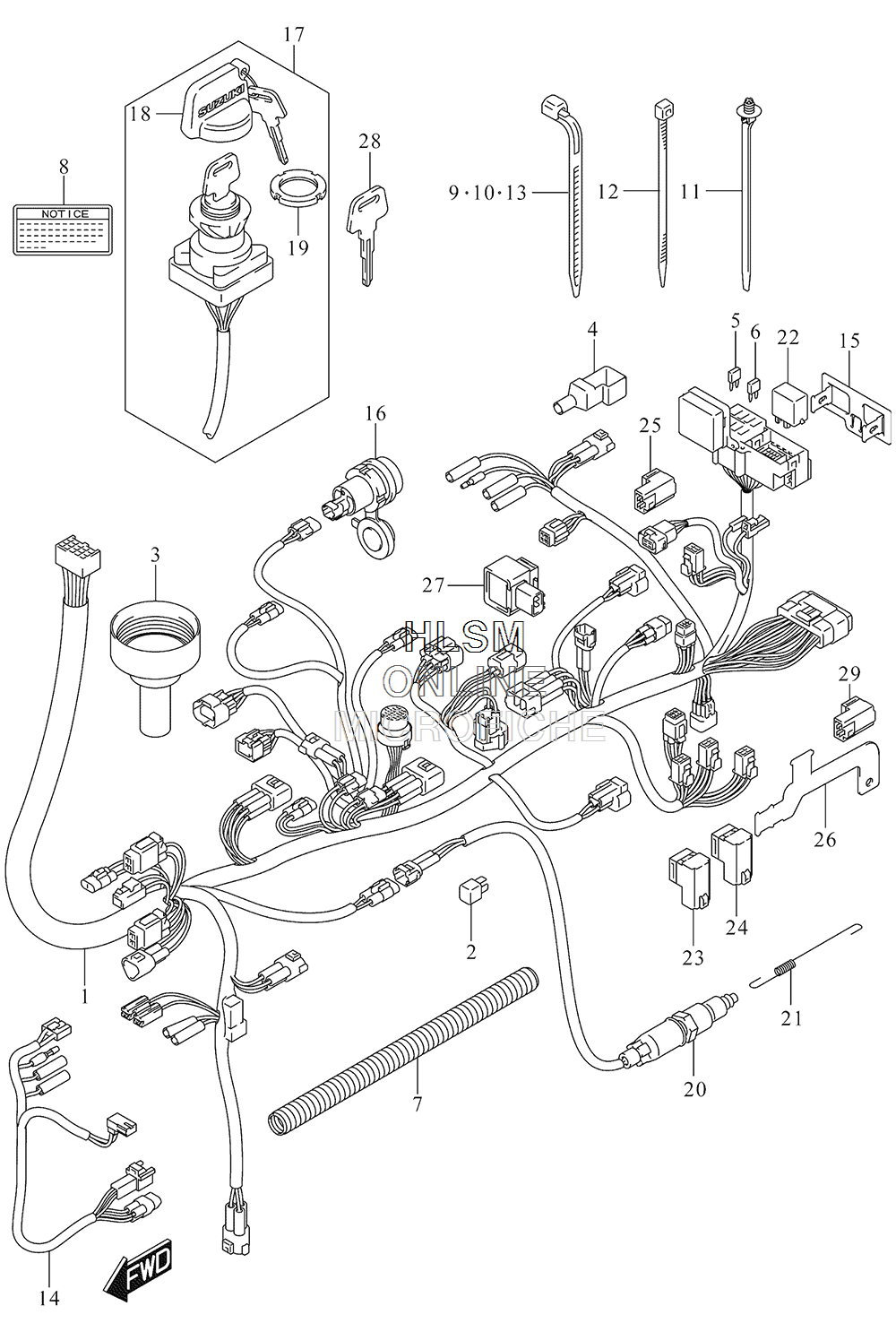

WIRING HARNESS (P33) для Suzuki LT-A750XZVL5 KINGQUAD 750 AXi - 2015 года выпуска`
-
№АртикулНазвание
-
136610-31GD0 HARNESS, WIRINGHARNESS, WIRING
-
232800-16A00 RECTIFIER ASSYRECTIFIER ASSY
-
336618-31G00 COVER, SPEEDCOVER, SPEED
-
436618-31G10 COVER, CONNECTORCOVER, CONNECTOR
-
509481-10501 FUSE (10A)FUSE (10A)
-
609481-15501 FUSE (15A)FUSE (15A)
-
736619-31G00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
838852-09F50 LABEL, POWER SOURCE TERMINALLABEL, POWER SOURCE TERMINAL
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1109407-17403 CLAMP (L:154)CLAMP (L:154)
-
1209407-14407 CLAMP (L:145)CLAMP (L:145)
-
1309407-19401 CLAMP (L:190)CLAMP (L:190)
-
1436857-31G00 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1536744-31G00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1638850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1737110-31G00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1837142-19B00 MASCOT, KEYMASCOT, KEY
-
1937112-24500 NUTNUT
-
2037740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2109443-06080 SPRINGSPRING
-
2238730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2338740-31G01 RELAY ASSY, NEUTRAL STARTRELAY ASSY, NEUTRAL START
-
2438740-31G01 RELAY ASSY, DEF LOCKRELAY ASSY, DEF LOCK
-
2538740-31G01 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2638741-31G30 BRACKET, RELAYBRACKET, RELAY
-
2738750-31G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2838740-31G10 RELAY ASSY, FANMOTORRELAY ASSY, FANMOTOR
-
2937146-19B00 KEY, BLANK TYPE (C) (OPT)KEY, BLANK TYPE (C) (OPT)
-
2937146-19B10 KEY, BLANK TYPE (D) (OPT)KEY, BLANK TYPE (D) (OPT)
