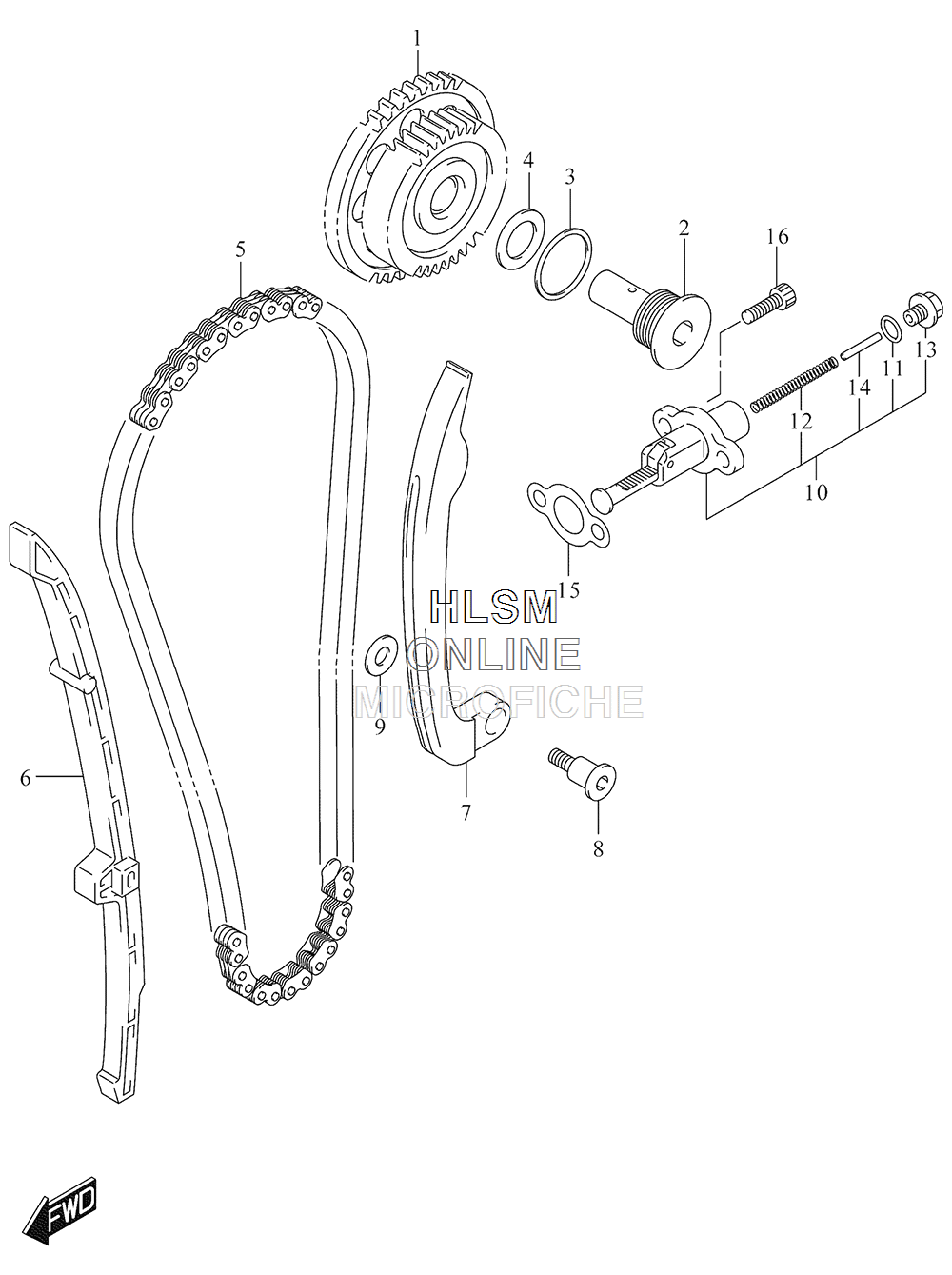

CAM CHAIN ASSY. W/ TENSIONER для Suzuki LT-A750XZVL5 KINGQUAD 750 AXi - 2015 года выпуска`
-
№АртикулНазвание
-
112750-31G00 GEAR, CAM CHAIN IDLER (NT:41/44)GEAR, CAM CHAIN IDLER (NT:41/44)
-
212755-02F01 SHAFT, CAM CHAIN IDLER GEARSHAFT, CAM CHAIN IDLER GEAR
-
309168-26001 GASKET (26.5X30.5X1)GASKET (26.5X30.5X1)
-
409181-15164 SHIM (15X24X0.9)SHIM (15X24X0.9)
-
409181-15166 SHIM (15X24X1)SHIM (15X24X1)
-
409181-15172 SHIM (15X24X1.1)SHIM (15X24X1.1)
-
409181-15176 SHIM (15X24X1.2)SHIM (15X24X1.2)
-
409181-15181 SHIM (15X24X1.3)SHIM (15X24X1.3)
-
409181-15182 SHIM (15X24X1.4)SHIM (15X24X1.4)
-
512760-31G00 CHAIN, CAMSHAFT DRIVE (92RIGHT HAND2015-126)CHAIN, CAMSHAFT DRIVE (92RIGHT HAND2015-126)
-
612771-31G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
712811-31G00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
812812-31G00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
908211-08202 WASHERWASHER
-
1012830-19B02 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
1112832-02A00 O RINGO RING
-
1212833-19B00 SPRINGSPRING
-
1312834-19B00 PLUGPLUG
-
1412835-19B00 BARBAR
-
1512837-19B10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1607130-0620A BOLTBOLT
