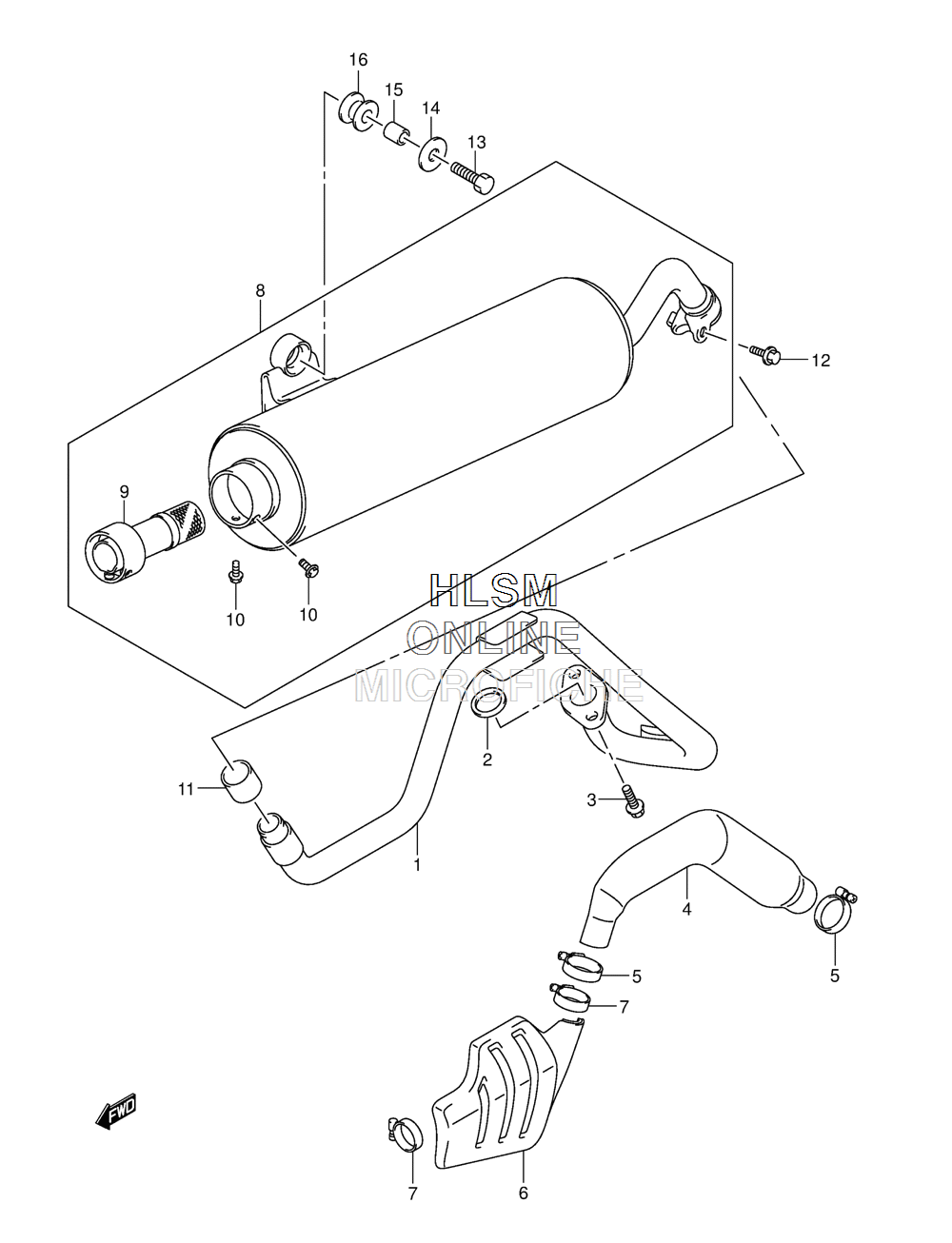

MUFFLER для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска
-
№АртикулНазвание
-
114150-08H00 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-06F00 GASKETGASKET
-
307120-0820B BOLT, STUDBOLT, STUD
-
414180-08H00 COVER, FRONTCOVER, FRONT
-
509402-40502 CLAMPCLAMP
-
614190-08H00 COVER, REARCOVER, REAR
-
709402-32512 CLAMPCLAMP
-
814310-08H01 BODY, MUFFLERBODY, MUFFLER
-
914850-08H10 ARRESTERARRESTER
-
1001547-0610B BOLTBOLT
-
1114771-26F00 CONNECTORCONNECTOR
-
1207120-0840B BOLTBOLT
-
1301500-0835B BOLTBOLT
-
1409160-08151 WASHER, 8.5X26X1WASHER, 8.5X26X1
-
1509180-08194 SPACER, 8.5X12X1SPACER, 8.5X12X1
-
1609320-12043 CUSHIONCUSHION
