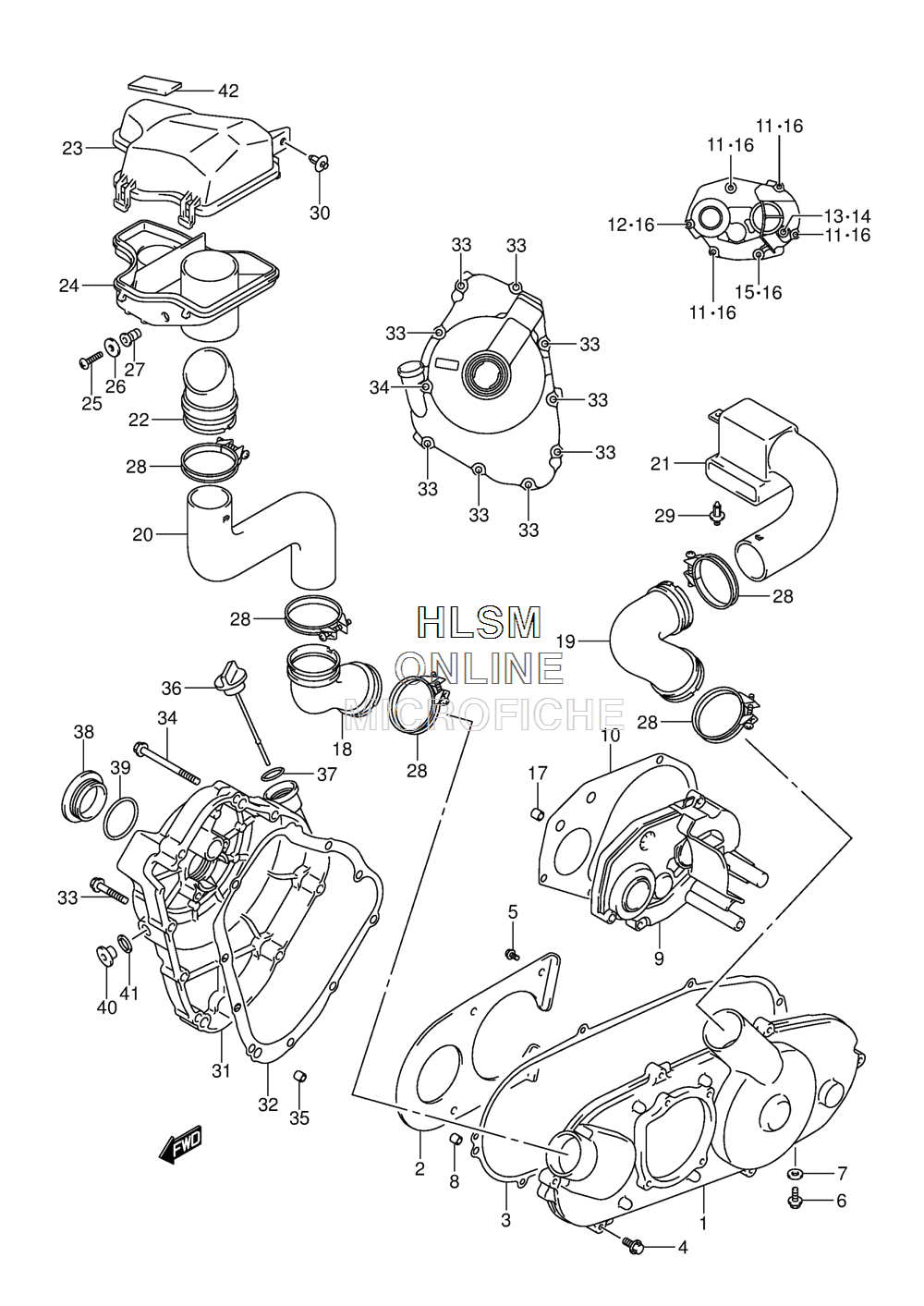

CRANKCASE COVER для Suzuki LT-Z90 Quad Sport 90 - 2014 года выпуска`
-
№АртикулНазвание
-
111341-08H00 COVER, CLUTCHCOVER, CLUTCH
-
211346-08H00 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
311482-08H00 GASKETGASKET
-
401547-0625B BOLTBOLT
-
502112-0510B BOLTBOLT
-
601550-0612B PLUG, WATER DRAINPLUG, WATER DRAIN
-
709168-06018 GASKETGASKET
-
809206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
911431-33G40 COVER, GEAR BOXCOVER, GEAR BOX
-
1011484-33G40 GASKET, GEAR BOX COVERGASKET, GEAR BOX COVER
-
1111432-08H00 BOLTBOLT
-
1211433-08H00 BOLTBOLT
-
1301550-0812B BOLT, LEVELBOLT, LEVEL
-
1409168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1501547-0695B BOLT, DRAINBOLT, DRAIN
-
1609168-06018 GASKET (6.2X13X1.2)GASKET (6.2X13X1.2)
-
1709206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
1811385-08H00 CONNECTOR, COOLING DUCT FRCONNECTOR, COOLING DUCT FR
-
1911386-08H00 CONNECTOR, COOLING DUCT RRCONNECTOR, COOLING DUCT RR
-
2011387-08H00 DUCT, BELT COOLING FRDUCT, BELT COOLING FR
-
2111398-08H00 DUCT, BELT COOLING RRDUCT, BELT COOLING RR
-
2211388-08H00 CONNECTOR, COOLING DUCT FRCONNECTOR, COOLING DUCT FR
-
2311393-08H00 BOX, INDUCTION UPPERBOX, INDUCTION UPPER
-
2411394-08H00 BOX, INDUCTION LOWERBOX, INDUCTION LOWER
-
2502142-0520B SCREWSCREW
-
2609160-05046 WASHERWASHER
-
2709159-05019 NUTNUT
-
2809402-50203 CLAMPCLAMP
-
2909409-06322-5PK CLIPCLIP
-
3009409-07333 CLIPCLIP
-
3111351-08H00 COVER, MAGNETOCOVER, MAGNETO
-
3211483-33G40 GASKETGASKET
-
3301547-0630B BOLTBOLT
-
3401547-0665B BOLTBOLT
-
3509206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
3611971-08H00 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
3709280-17003 O RINGO RING
-
3809259-36016-20H PLUG, CRANKSHAFT HOLEPLUG, CRANKSHAFT HOLE
-
3909280-33004 O RINGO RING
-
4009248-12007 PLUG, TDCPLUG, TDC
-
4109168-12002 GASKETGASKET
-
4233652-08420 CUSHIONCUSHION
