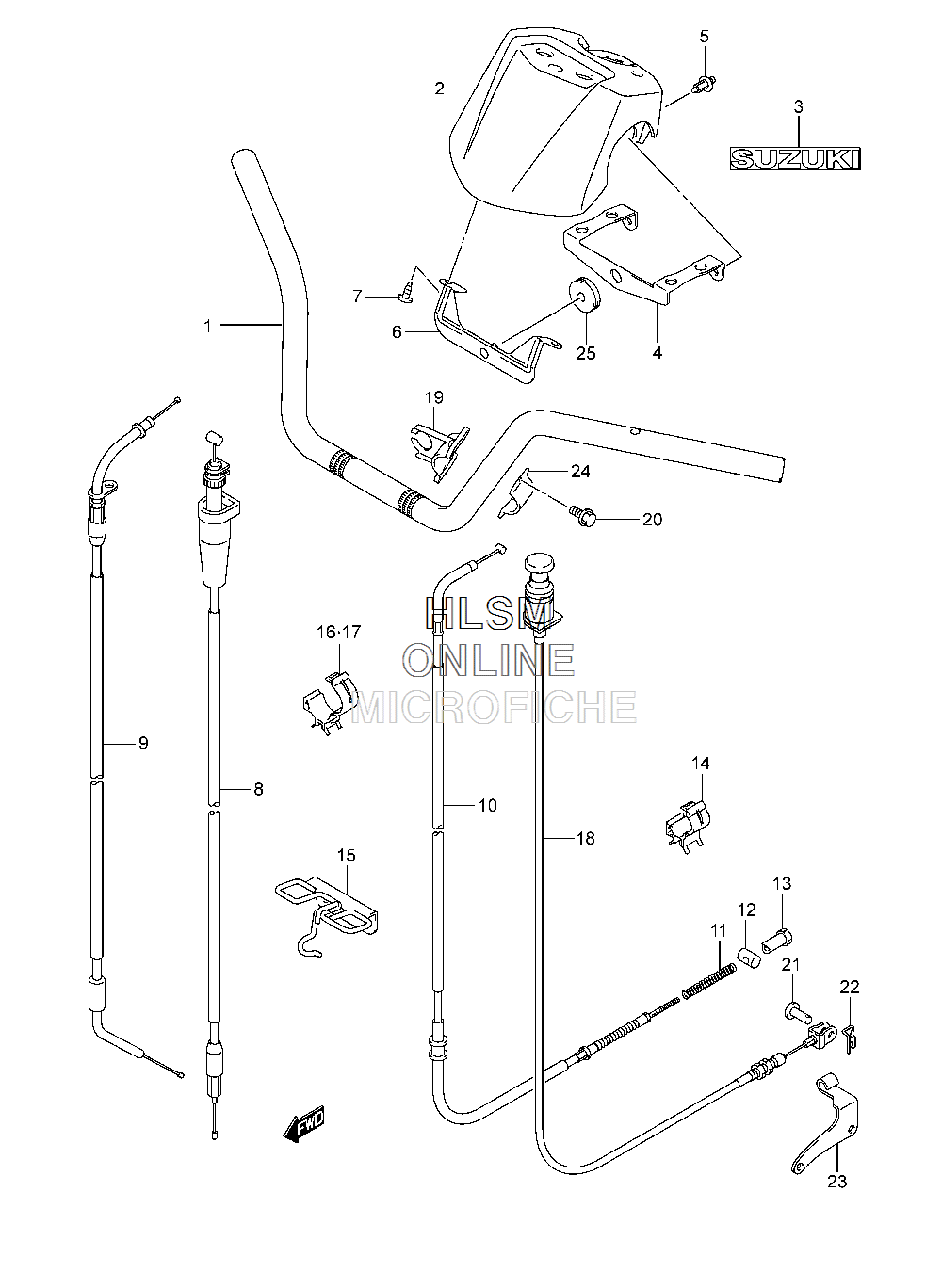

HANDLEBAR W/ CABLES для Suzuki LT-F250 Ozark 250 - 2013 года выпуска`
-
№АртикулНазвание
-
156111-05G20 HANDLE BARHANDLE BAR
-
256170-05G01-5CX COVER, HEADCOVER, HEAD
-
368721-05D00-E8F ...EMBLEM...EMBLEM
-
456411-05G00 BRACKET, COVER RIGHTBRACKET, COVER RIGHT
-
509409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
656180-05G00 BRACKET, HEAD COVERBRACKET, HEAD COVER
-
703541-0512B SCREWSCREW
-
858300-05G30 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
958410-05G00 CABLE, STARTERCABLE, STARTER
-
1058810-05G11 CABLE, PARKING BRAKECABLE, PARKING BRAKE
-
1109440-08042 SPRINGSPRING
-
1209209-13006 PINPIN
-
1309150-06015 NUTNUT
-
1409403-10405 CLAMPCLAMP
-
1558620-05G00 GUIDE, CABLEGUIDE, CABLE
-
1609403-08407 CLAMPCLAMP
-
1709403-20403 CLAMPCLAMP
-
1858840-05G01 CABLE, REVERSECABLE, REVERSE
-
1958910-05G00 BRACKET, REVERSE CABLEBRACKET, REVERSE CABLE
-
2001547-0612B BOLTBOLT
-
2109200-06004 PINPIN
-
2209385-06012 CLIPCLIP
-
2358871-05G00 BRACKET, REVERSE CABLEBRACKET, REVERSE CABLE
-
2458921-05G00 BRACKETBRACKET
-
2509320-08018 CUSHIONCUSHION
