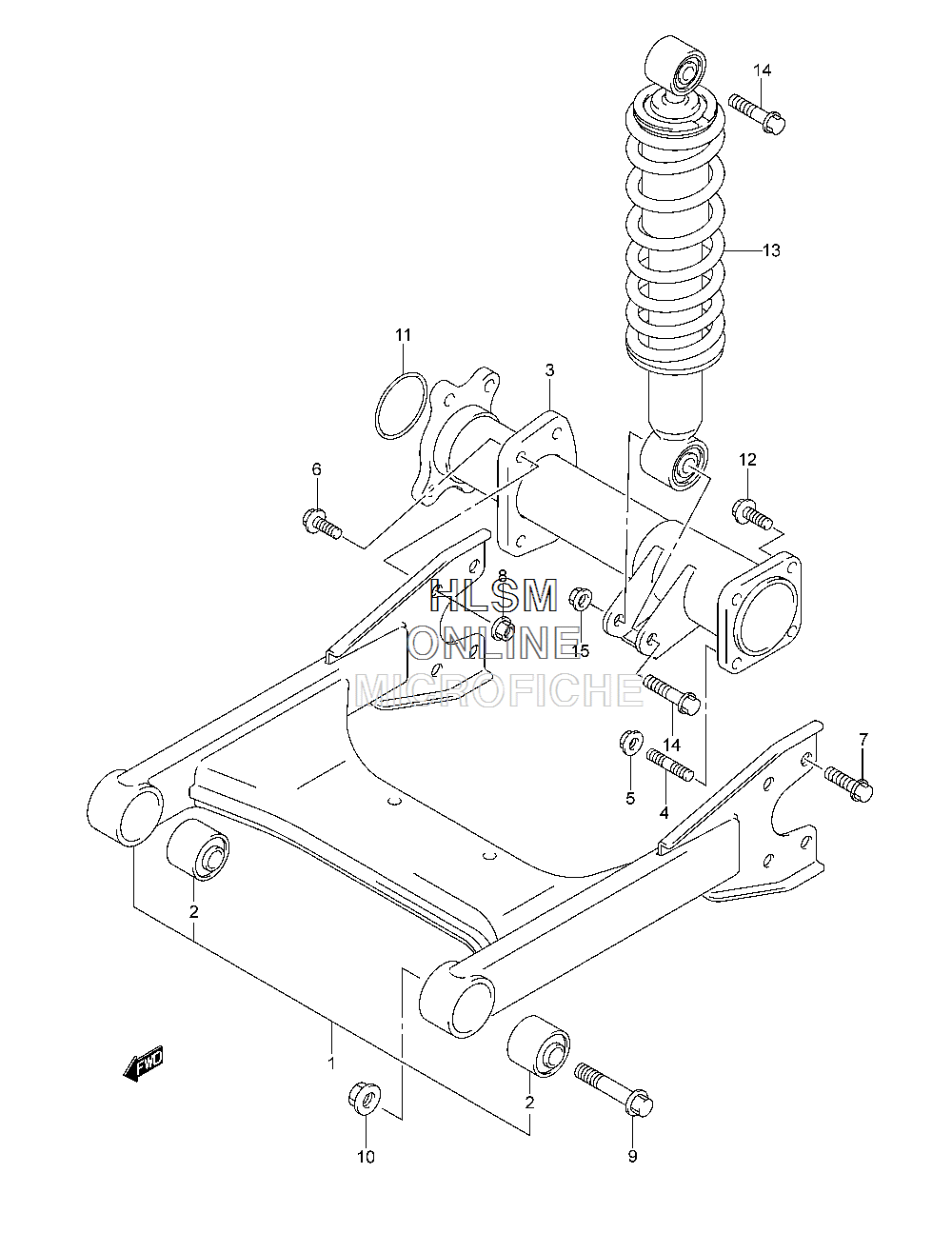

SUSPENSION - REAR SWING ARM для Suzuki LT-F250 Ozark 250 - 2013 года выпуска
-
№АртикулНазвание
-
161100-05850 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
261230-38F00 ...BUSH, PIVOT...BUSH, PIVOT
-
361300-05G20 HOUSING, REAR AXLE, RIGHTHOUSING, REAR AXLE, RIGHT
-
401421-1025A BOLT, AXLE HOUSING FRONTBOLT, AXLE HOUSING FRONT
-
508316-1010B NUTNUT
-
609103-10216 BOLT (10X20) (RIGHT)BOLT (10X20) (RIGHT)
-
701550-1030B BOLT (LEFT)BOLT (LEFT)
-
809159-10115 NUTNUT
-
909103-12042 BOLT (12X57)BOLT (12X57)
-
1009159-12054 NUTNUT
-
1109280-70005 O RING (D:3.1,ID:69.4)O RING (D:3.1,ID:69.4)
-
1201550-1030B BOLTBOLT
-
1362100-05G10-019 ABSORBER ASSY, REAR SHOCK (BLACK)ABSORBER ASSY, REAR SHOCK (BLACK)
-
1409103-10064 BOLT (10X50)BOLT (10X50)
-
1509159-10115 NUTNUT
