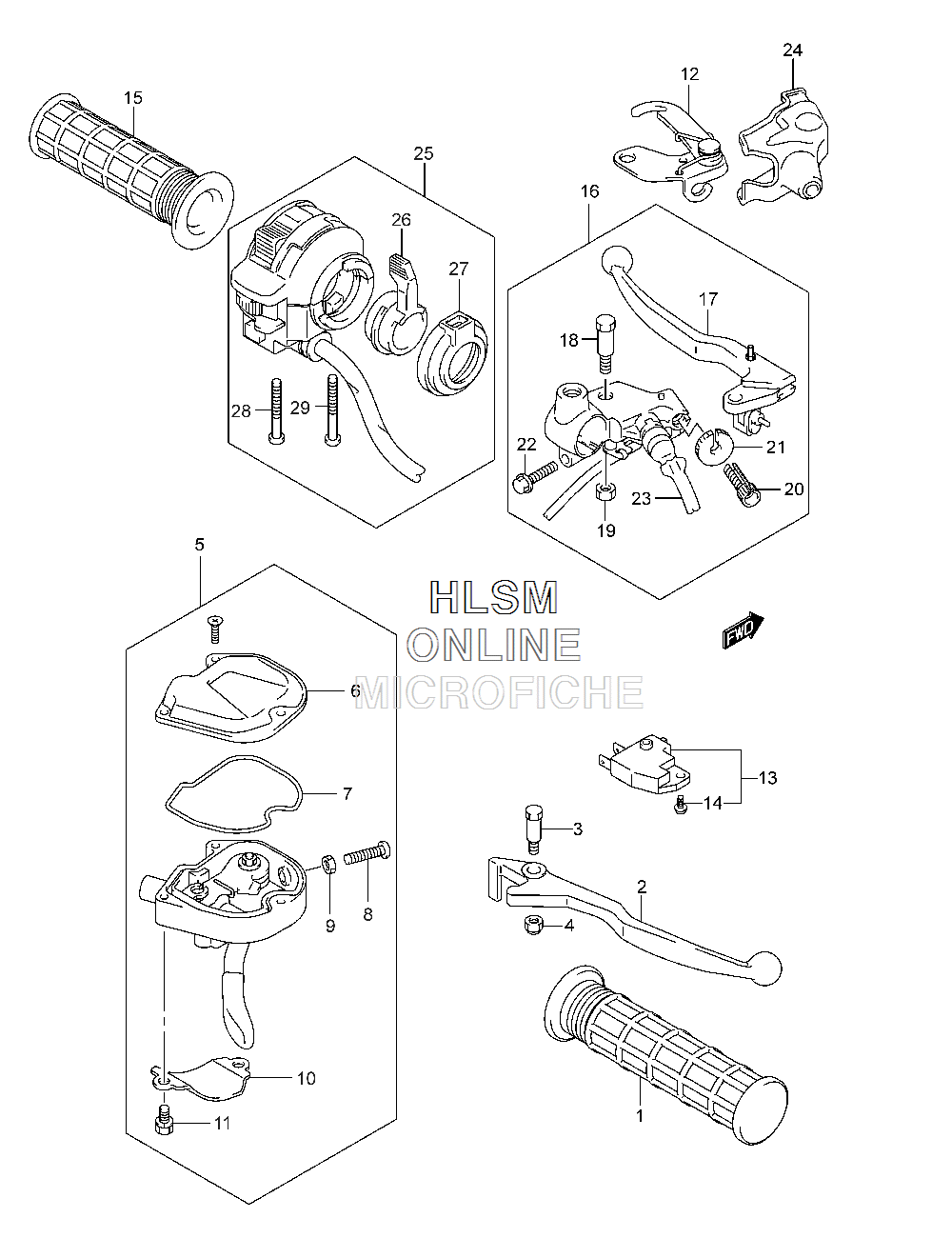

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F250 Ozark 250 - 2013 года выпуска`
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, BRAKELEVER, BRAKE
-
357431-04F00 BOLTBOLT
-
457433-09F00 NUTNUT
-
557100-27H01 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
657121-27H00 ...CAP...CAP
-
757157-27H00 ...GASKET...GASKET
-
802112-0520B ...SCREW...SCREW
-
908310-0005B ...NUT...NUT
-
1057126-07G00 ...HOLDER...HOLDER
-
1157127-07G00 ...BOLT...BOLT
-
1257790-38FA0 STOPPER, BRAKE LEVERSTOPPER, BRAKE LEVER
-
1357460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1457465-17C00 ...SCREW...SCREW
-
1557211-21G10 GRIPGRIP
-
1657500-38FC0 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
1757620-21821 ...LEVER, BRAKE...LEVER, BRAKE
-
1857431-09F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1908319-2106B ...NUT...NUT
-
2057441-08C00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
2157442-08C00 ...LOCK NUT...LOCK NUT
-
2201547-0620B ...BOLT...BOLT
-
2357560-38FA1 ...SWITCH, STOP...SWITCH, STOP
-
2457541-38FA0 COVER, BRAKECOVER, BRAKE
-
2537400-27H00 SWITCH ASSY, LEFTSWITCH ASSY, LEFT
-
2637571-19B01 ...LEVER, CHOKE...LEVER, CHOKE
-
2737576-19B01 ...COVER, CHOKE...COVER, CHOKE
-
2802112-05407 ...SCREW...SCREW
-
2902112-05457 ...SCREW...SCREW
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - REAR
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - LAMP INDICATORS
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- • HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- HEADLAMP HOUSING
- LABELS
- MAGNETO
- MUFFLER
- OIL PUMP
- OPTIONAL
- SEAT
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - LEFT REAR
- WHEEL - RIGHT REAR W/ AXLE
