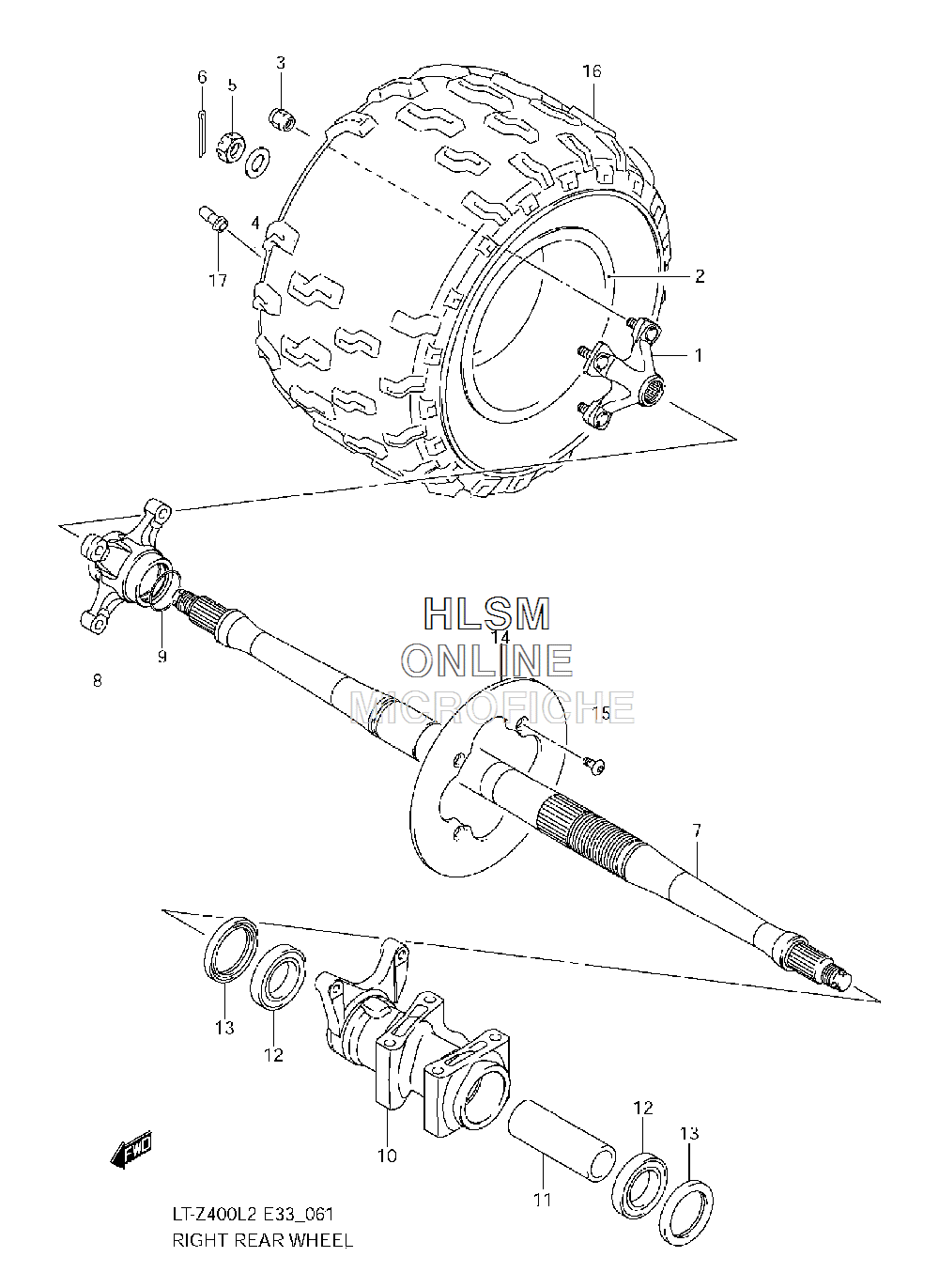

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-Z400 QuadSport Z400 - 2012 года выпуска`
-
№АртикулНазвание
-
164110-45G01 HUB, REAR WHEELHUB, REAR WHEEL
-
265310-07G10 RIM, REAR WHEEL (9X8.0AT)RIM, REAR WHEEL (9X8.0AT)
-
309159-10114 NUTNUT
-
409164-20002 WASHERWASHER
-
509141-20009 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
764711-33H00 AXLE, REARAXLE, REAR
-
869212-33H00 HOUSING, REAR DISC PLATEHOUSING, REAR DISC PLATE
-
909281-40001 DUST SEAL (D:1.6,ID:39.8)DUST SEAL (D:1.6,ID:39.8)
-
1064715-33H00 HOUSING, RR AXLE BEARINGHOUSING, RR AXLE BEARING
-
1164731-45G00 SPACER, RR AXLE BEARINGSPACER, RR AXLE BEARING
-
1209262-40015 BEARING (40X62X12)BEARING (40X62X12)
-
1309283-52005 OIL SEAL (52X62X7)OIL SEAL (52X62X7)
-
1469211-07G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
1509106-08160 BOLT (8X21)BOLT (8X21)
-
1665110-07G00 TIRE, REARTIRE, REAR
-
1743130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
