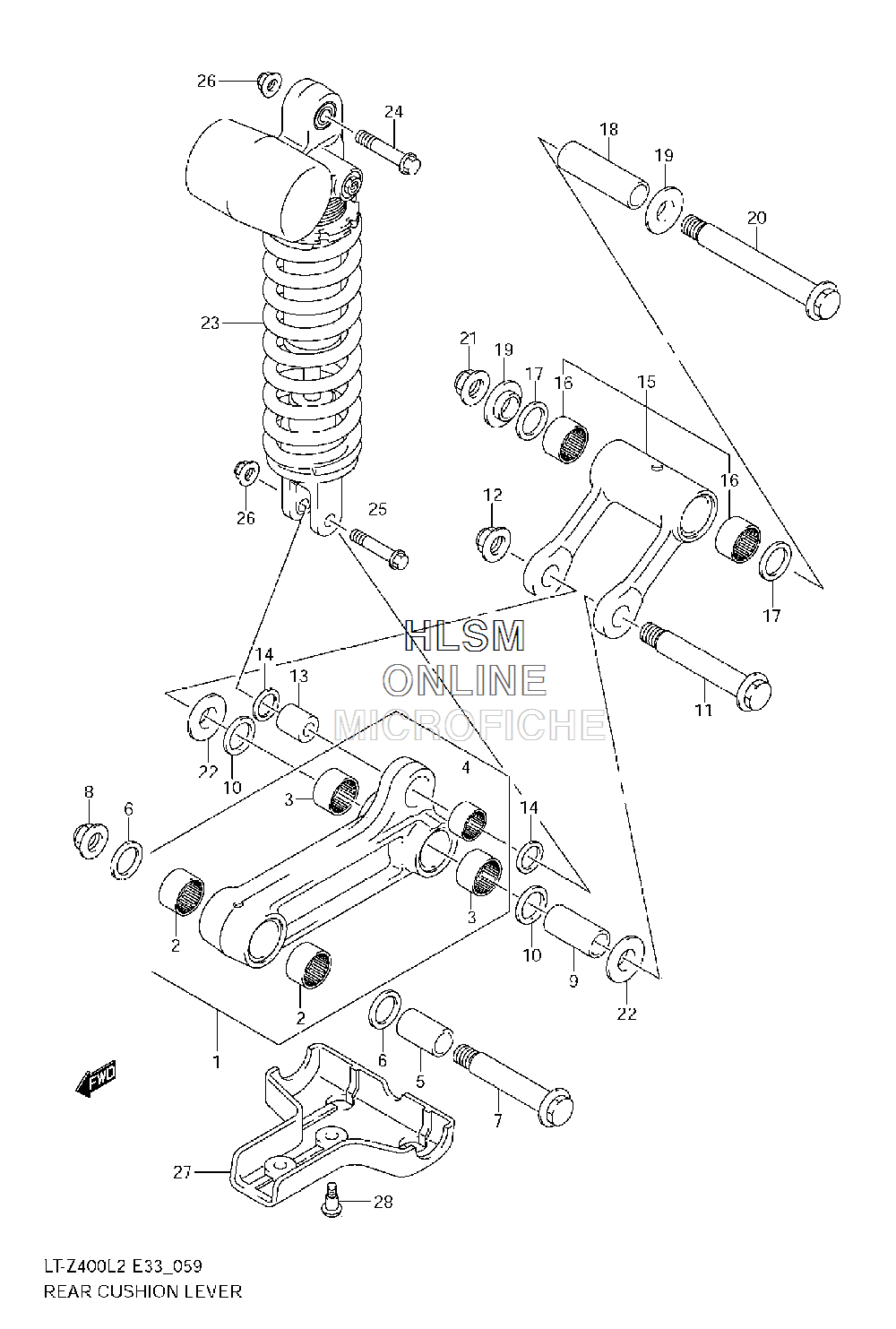

SUSPENSION - REAR SHOCK W/ CUSHION LEVER для Suzuki LT-Z400 QuadSport Z400 - 2012 года выпуска`
-
№АртикулНазвание
-
162600-07840 LEVER SET, CUSHION (INCL. 2-4)LEVER SET, CUSHION (INCL. 2-4)
-
209263-20086 BEARING (20X27X15)BEARING (20X27X15)
-
309263-20086 BEARING (20X27X15)BEARING (20X27X15)
-
409263-20083 BEARING (20X26X12)BEARING (20X26X12)
-
562317-37F00 SPACER, FRONTSPACER, FRONT
-
662624-14500 SEAL, FRONT DUSTSEAL, FRONT DUST
-
762658-07G00 BOLT, FRONTBOLT, FRONT
-
809159-12056 NUTNUT
-
962646-33H10 SPACER, CENTERSPACER, CENTER
-
1062624-14500 SEAL, CENTER DUSTSEAL, CENTER DUST
-
1162621-37F00 BOLT, CENTERBOLT, CENTER
-
1209159-12056 NUTNUT
-
1362684-36E00 SPACER, REARSPACER, REAR
-
1409284-20001 OIL SEAL (20X26X4.5)OIL SEAL (20X26X4.5)
-
1562601-33820 ROD SET, REAR CUSHION (INCL. 16)ROD SET, REAR CUSHION (INCL. 16)
-
1609263-20086 BEARING (20X27X15)BEARING (20X27X15)
-
1762624-14500 SEAL, DUSTSEAL, DUST
-
1862646-33H00 SPACER, RODSPACER, ROD
-
1962647-37F00 SPACER, ROD SIDESPACER, ROD SIDE
-
2062621-07G00 BOLT, RODBOLT, ROD
-
2109159-12056 NUTNUT
-
2208211-20323 WASHERWASHER
-
2362100-33H00-YKS ABSORBER ASSY, REAR SHOCK (RED)ABSORBER ASSY, REAR SHOCK (RED)
-
2409103-10301 BOLT (10X60)BOLT (10X60)
-
2509103-10149 BOLT (10X47.5)BOLT (10X47.5)
-
2609159-10115 NUTNUT
-
2762681-07G00 GUARD, REAR CUSHION LEVERGUARD, REAR CUSHION LEVER
-
2809139-06120 SCREW (6X16)SCREW (6X16)
