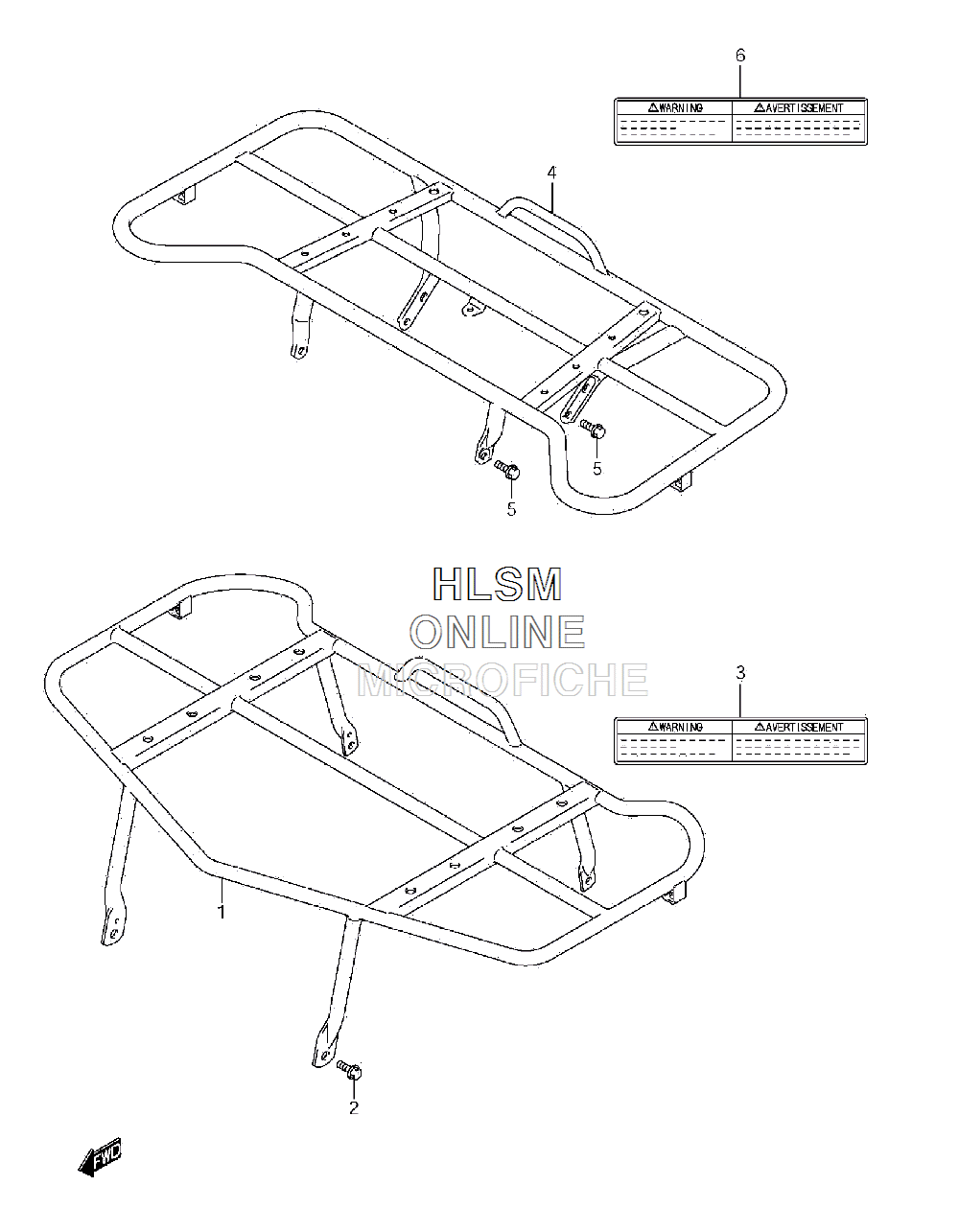

CARRIER - FRONT / REAR (CANADA) для Suzuki LT-A500X KingQuad 500AXi - 2011 года выпуска`
-
№АртикулНазвание
-
146410-31G13-YSN CARRIER, FRONT (BLACK)CARRIER, FRONT (BLACK)
-
209103-08283 BOLT (8X16)BOLT (8X16)
-
368385-31G00 LABEL, FRONT CARRIERLABEL, FRONT CARRIER
-
446310-31GB2-YSN CARRIER, REAR (BLACK)CARRIER, REAR (BLACK)
-
509103-08283 BOLT (8X16)BOLT (8X16)
-
509103-08283 BOLT (8X16)BOLT (8X16)
-
668385-31G10 LABEL, REAR CARRIERLABEL, REAR CARRIER
