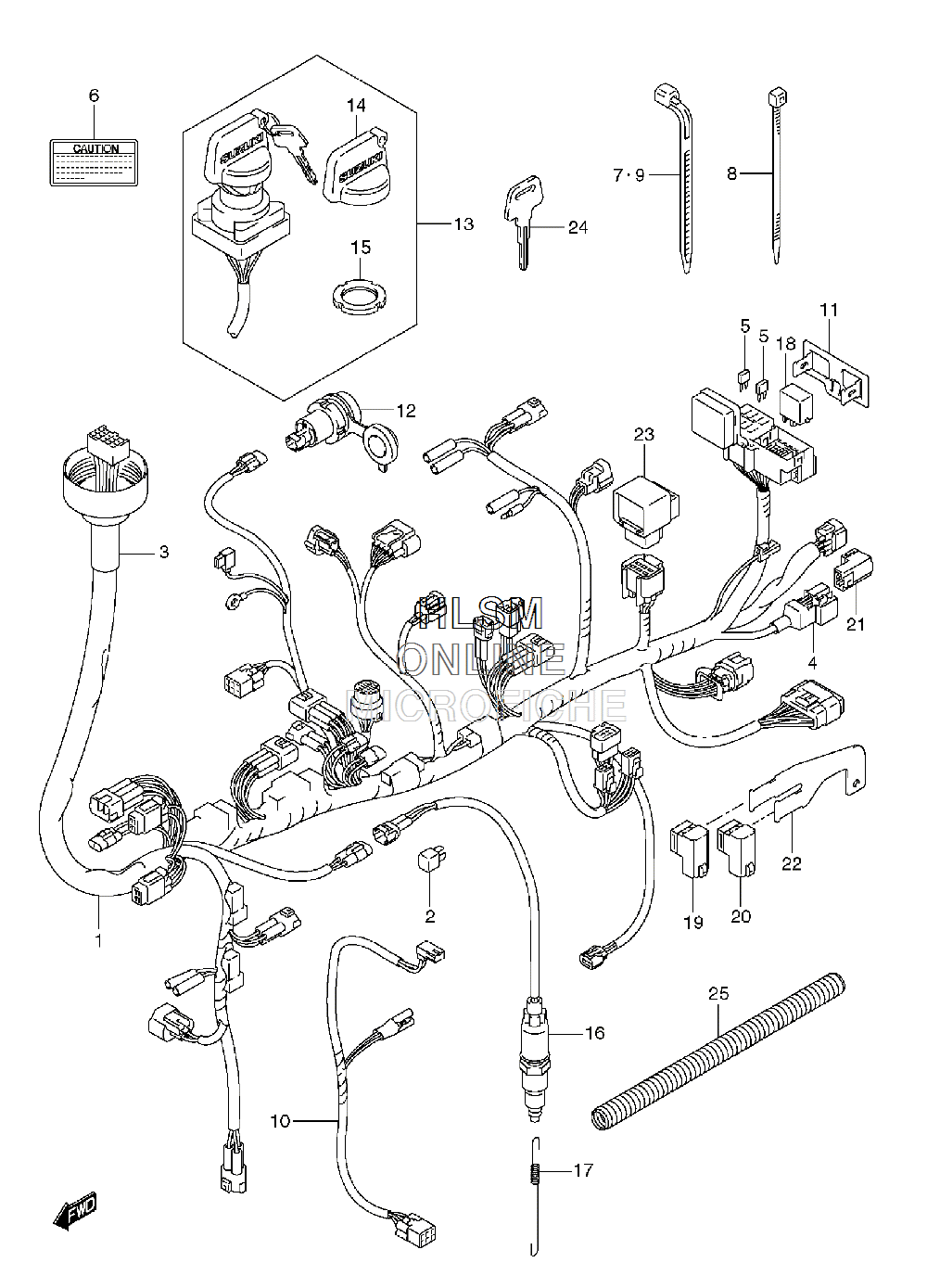

ELECTRICAL - WIRING HARNESS для Suzuki LT-A500X KingQuad 500AXi - 2011 года выпуска`
-
№АртикулНазвание
-
136610-11H31 HARNESS, WIRINGHARNESS, WIRING
-
232800-16A00 RECTIFIER ASSYRECTIFIER ASSY
-
336618-31G00 COVERCOVER
-
436618-31G10 BOOTBOOT
-
509481-10501 FUSE (10A)FUSE (10A)
-
509481-15501 FUSE (15A)FUSE (15A)
-
638852-09F50 LABEL, POWER SOURCE TERMINALLABEL, POWER SOURCE TERMINAL
-
709407-11401 CLAMP (L:95)CLAMP (L:95)
-
709407-14403 CLAMP (L:125)CLAMP (L:125)
-
709407-25401 CLAMP (L:235)CLAMP (L:235)
-
809407-14407 CLAMP (L:145)CLAMP (L:145)
-
909407-19401 CLAMP (L:190)CLAMP (L:190)
-
1036855-38F10 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1136744-31G00 BRACKET, FUSEBRACKET, FUSE
-
1238850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1337110-38F00 SWITCH ASSY, IGNITION (INC 14-15)SWITCH ASSY, IGNITION (INC 14-15)
-
1437142-19B00 MASCOT, KEYMASCOT, KEY
-
1537112-24500 NUTNUT
-
1637740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1709443-06080 SPRING, STOP LAMPSPRING, STOP LAMP
-
1838730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
1938740-31G01 RELAY ASSY, NEUTRAL STARTRELAY ASSY, NEUTRAL START
-
2038740-31G01 RELAY ASSY, DEF LOCKRELAY ASSY, DEF LOCK
-
2138740-31G01 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2238741-31G20 BRACKET, RELAYBRACKET, RELAY
-
2338750-31G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2437146-19B00 KEY, BLANK TYPE (C)KEY, BLANK TYPE (C)
-
2437146-19B10 KEY, BLANK TYPE (D)KEY, BLANK TYPE (D)
-
2536619-31G00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
