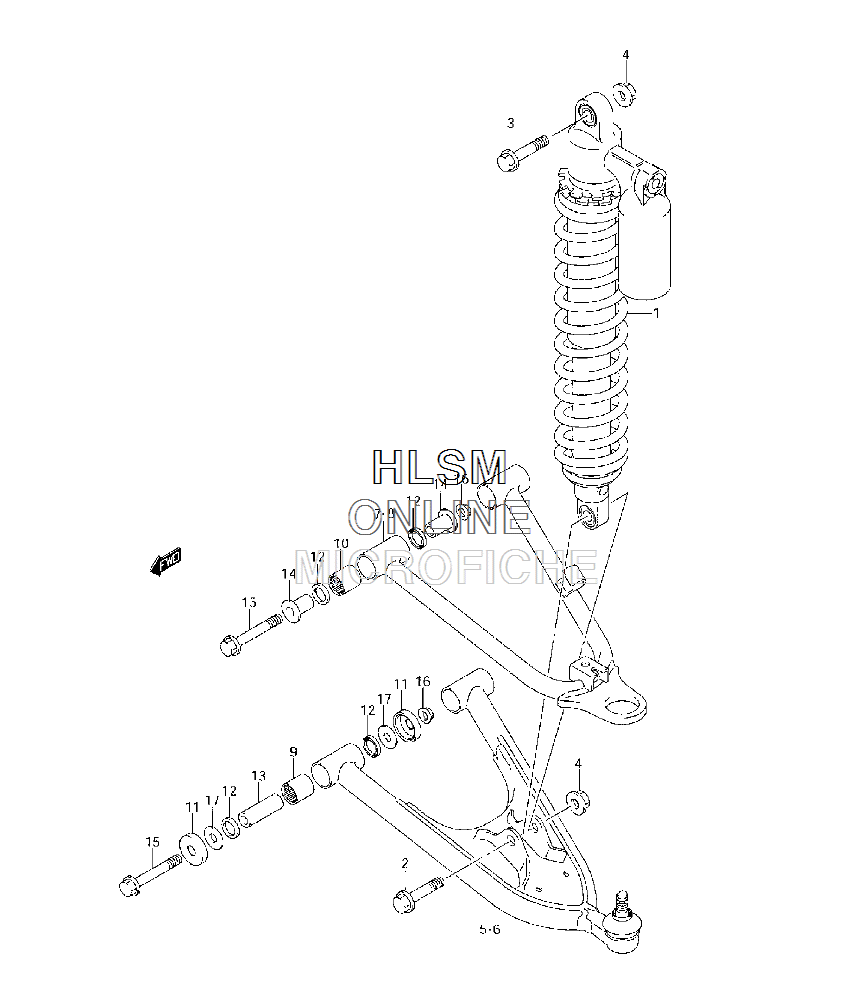

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z400Z QuadSport Z400 Special Edition - 2008 года выпуска`
-
№АртикулНазвание
-
152100-07G22-YKS ABSORBER ASSY, FRONT SHOCK (RED) (FOR YU1)ABSORBER ASSY, FRONT SHOCK (RED) (FOR YU1)
-
152100-07G22-28W ABSORBER ASSY, FRONT SHOCK (WHITE) (FOR 30H)ABSORBER ASSY, FRONT SHOCK (WHITE) (FOR 30H)
-
152100-07G32-YKS ABSORBER ASSY, FRONT SHOCK (RED) (FOR YU1) (CANADA ONLY)ABSORBER ASSY, FRONT SHOCK (RED) (FOR YU1) (CANADA ONLY)
-
152100-07G32-28W ABSORBER ASSY, FRONT SHOCK (WHITE) (FOR 30H) (CANADA ONLY)ABSORBER ASSY, FRONT SHOCK (WHITE) (FOR 30H) (CANADA ONLY)
-
209103-10352 BOLT, LOWER (10X48)BOLT, LOWER (10X48)
-
309103-10351 BOLT, UPPER (10X38)BOLT, UPPER (10X38)
-
409159-10115 NUTNUT
-
552410-07G20-YD8 ARM ASSY, SUSPENSION LOWER RIGHT HANDARM ASSY, SUSPENSION LOWER RIGHT HAND
-
652420-07G20-YD8 ARM ASSY, SUSPENSION LOWER LEFT HANDARM ASSY, SUSPENSION LOWER LEFT HAND
-
752430-07G10-YD8 ARM ASSY, SUSPENSION UPPER RIGHT HANDARM ASSY, SUSPENSION UPPER RIGHT HAND
-
852440-07G10-YD8 ARM ASSY, SUSPENSION UPPER LEFT HANDARM ASSY, SUSPENSION UPPER LEFT HAND
-
909263-17033 BEARING, SUSPENSION ARM PIVOTBEARING, SUSPENSION ARM PIVOT
-
1009263-17034 BEARING, UPPERBEARING, UPPER
-
1152454-43B00 SEAL, SUSPENSION ARM PIVOT DUSTSEAL, SUSPENSION ARM PIVOT DUST
-
1209285-17001 SEAL, PIVOT INNER DUSTSEAL, PIVOT INNER DUST
-
1352455-43B00 SPACER, LOWERSPACER, LOWER
-
1452455-07G00 SPACER, UPPERSPACER, UPPER
-
1509103-10033 BOLTBOLT
-
1609159-10115 NUTNUT
-
1708211-10281 WASHERWASHER
