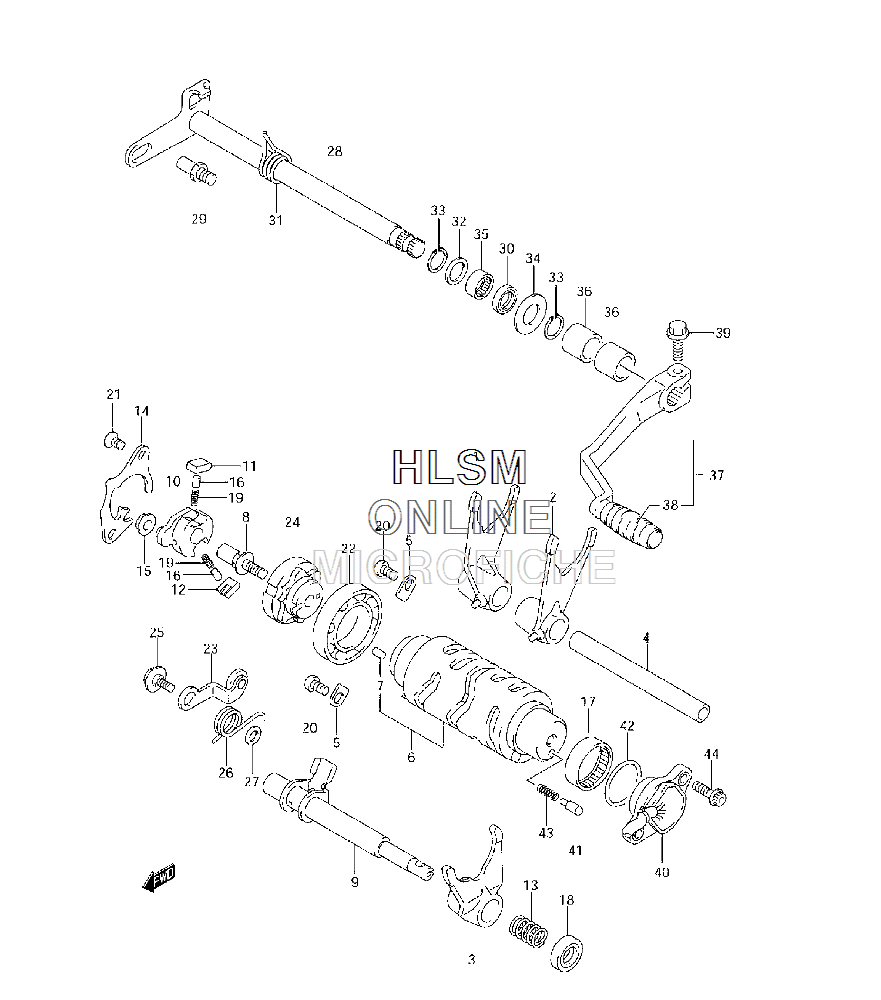

GEAR SHIFTING для Suzuki LT-Z400Z QuadSport Z400 Special Edition - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    25211-07G00 FORK, GEAR SHIFT NO.1
    FORK, GEAR SHIFT NO.1
  • 2
    25221-07G00 FORK, GEAR SHIFT NO.2
    FORK, GEAR SHIFT NO.2
  • 3
    25231-07G00 FORK, GEAR SHIFT NO.3
    FORK, GEAR SHIFT NO.3
  • 4
    25411-07G00 SHAFT, GEAR FORK NO.1
    SHAFT, GEAR FORK NO.1
  • 5
    24741-21A00 RETAINER, SHIFT CAM BRG
    RETAINER, SHIFT CAM BRG
  • 6
    25310-07G00 CAM, GEAR SHIFT (INCL. 7)
    CAM, GEAR SHIFT (INCL. 7)
  • 7
    04221-04089 PIN, SHIFT CAM
    PIN, SHIFT CAM
  • 8
    25313-27C02 PIN, SHIFT
    PIN, SHIFT
  • 9
    25320-07G00 SHAFT, REVERSE LOCK
    SHAFT, REVERSE LOCK
  • 10
    25322-36E00 SHIFTER, GEAR SHIFT CAM
    SHIFTER, GEAR SHIFT CAM
  • 11
    25323-34201 PAWL, GEAR SHIFT NO.1
    PAWL, GEAR SHIFT NO.1
  • 12
    25324-34201 PAWL, GEAR SHIFT NO.2
    PAWL, GEAR SHIFT NO.2
  • 13
    25328-07G00 SPRING, REVERSE LOCK
    SPRING, REVERSE LOCK
  • 14
    25331-37E10 LIFTER, GEAR SHIFT PAWL
    LIFTER, GEAR SHIFT PAWL
  • 15
    09180-07014 ROLLER, GEAR CAM SHIFTER
    ROLLER, GEAR CAM SHIFTER
  • 16
    09261-05003 PIN, SHIFT POLE (5X8)
    PIN, SHIFT POLE (5X8)
  • 17
    09263-25018 BEARING, SHIFT CAM LEFT HAND (33X38X8)
    BEARING, SHIFT CAM LEFT HAND (33X38X8)
  • 18
    09283-10010 SEAL, REVERSE LOCK (9.7X20X5)
    SEAL, REVERSE LOCK (9.7X20X5)
  • 19
    09440-04003 SPRING, SHIFT PAWL RETURN
    SPRING, SHIFT PAWL RETURN
  • 20
    09125-06110 SCREW, SHIFT CAM BRG
    SCREW, SHIFT CAM BRG
  • 21
    09126-06011 SCREW, SHIFT PAWL LIFTER (6X12)
    SCREW, SHIFT PAWL LIFTER (6X12)
  • 22
    08113-69050 BEARING, SHIFT CAM RIGHT HAND
    BEARING, SHIFT CAM RIGHT HAND
  • 23
    25350-07G00 STOPPER, SHIFT CAM
    STOPPER, SHIFT CAM
  • 24
    25381-36E11 PLATE, SHIFT CAM STOPPER
    PLATE, SHIFT CAM STOPPER
  • 25
    09111-06041 BOLT, CAM STOPPER ARM
    BOLT, CAM STOPPER ARM
  • 26
    25355-07G00 SPRING, SHIFT CAM
    SPRING, SHIFT CAM
  • 27
    08211-06121 WASHER, SHIFT CAM
    WASHER, SHIFT CAM
  • 28
    25510-07G00 SHAFT, GEAR SHIFT
    SHAFT, GEAR SHIFT
  • 29
    25671-38B00 STOPPER, GEAR SHIFT ARM
    STOPPER, GEAR SHIFT ARM
  • 30
    09283-14006 SEAL, SHIFT SHAFT OIL (14X22X6)
    SEAL, SHIFT SHAFT OIL (14X22X6)
  • 31
    09444-20006 SPRING, SHIFT SHAFT RETURN
    SPRING, SHIFT SHAFT RETURN
  • 32
    09181-14139 WASHER, GEAR SHAFT (14X20X1.0)
    WASHER, GEAR SHAFT (14X20X1.0)
  • 33
    08331-31146 CIRCLIP, GEAR SHAFT
    CIRCLIP, GEAR SHAFT
  • 34
    09160-14046 WASHER, GEAR SHIFT LEFT HAND (14X29X1.50)
    WASHER, GEAR SHIFT LEFT HAND (14X29X1.50)
  • 35
    09263-14027 BEARING, GEAR SHAFT (14X20X12)
    BEARING, GEAR SHAFT (14X20X12)
  • 36
    09180-14016 SPACER (14X20X17.5)
    SPACER (14X20X17.5)
  • 37
    25600-07G10 LEVER ASSY, GEAR SHIFT (INCL. 38)
    LEVER ASSY, GEAR SHIFT (INCL. 38)
  • 38
    25652-16500 RUBBER, GEAR PEDAL
    RUBBER, GEAR PEDAL
  • 39
    01550-0620B BOLT, GEAR SHIFT
    BOLT, GEAR SHIFT
  • 40
    37720-07G00 BASE ASSY, GEAR SHIFT TERM
    BASE ASSY, GEAR SHIFT TERM
  • 41
    09209-05011 CONTACT
    CONTACT
  • 42
    09280-26005 O RING (D:2.4,ID:26.2)
    O RING (D:2.4,ID:26.2)
  • 43
    09440-04010 SPRING
    SPRING
  • 44
    07120-0516B BOLT
    BOLT
