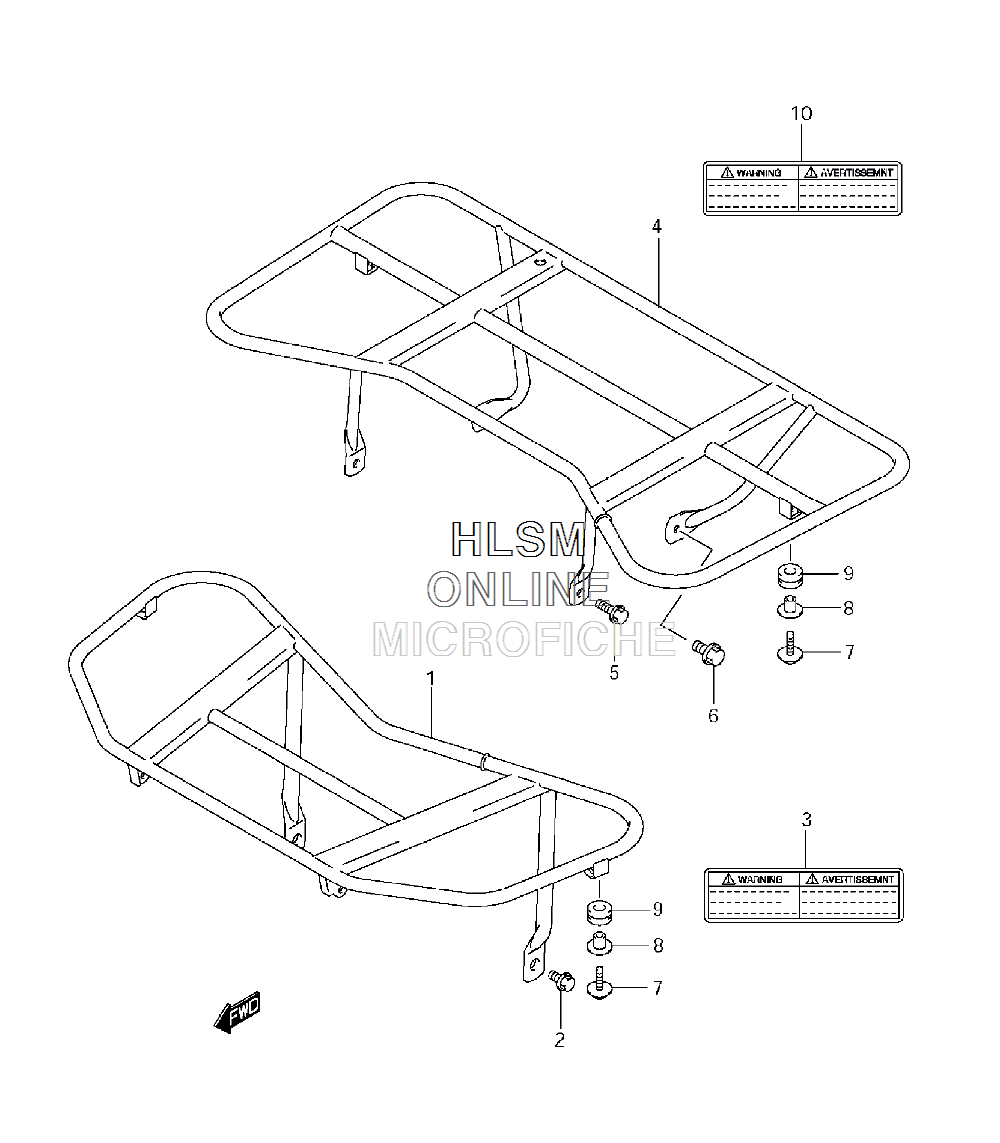

CARRIER - FRONT / REAR для Suzuki LT-F250 OZARK - 2007 года выпуска`
-
№АртикулНазвание
-
146410-05G01-019 CARRIER, FRONT (BLACK)CARRIER, FRONT (BLACK)
-
201550-0816A BOLT, REARBOLT, REAR
-
368391-02C00 LABEL, FRONT CARRIERLABEL, FRONT CARRIER
-
368391-02C20 LABEL, FRONT CARRIER (FRENCH)LABEL, FRONT CARRIER (FRENCH)
-
446310-05G21-019 CARRIER, REAR (BLACK)CARRIER, REAR (BLACK)
-
509103-08283 BOLT, REARBOLT, REAR
-
601550-1016A BOLT, SIDE (EXCEPT CANADA)BOLT, SIDE (EXCEPT CANADA)
-
601550-1020A BOLT, SIDE (CANADA ONLY)BOLT, SIDE (CANADA ONLY)
-
701550-0625B BOLT, LOWERBOLT, LOWER
-
809169-06074 SPACERSPACER
-
909320-11019 CUSHIONCUSHION
-
1068381-19B00 LABEL, REAR CARRIERLABEL, REAR CARRIER
-
1068381-19B20 LABEL, REAR CARRIER (FRENCH)LABEL, REAR CARRIER (FRENCH)
