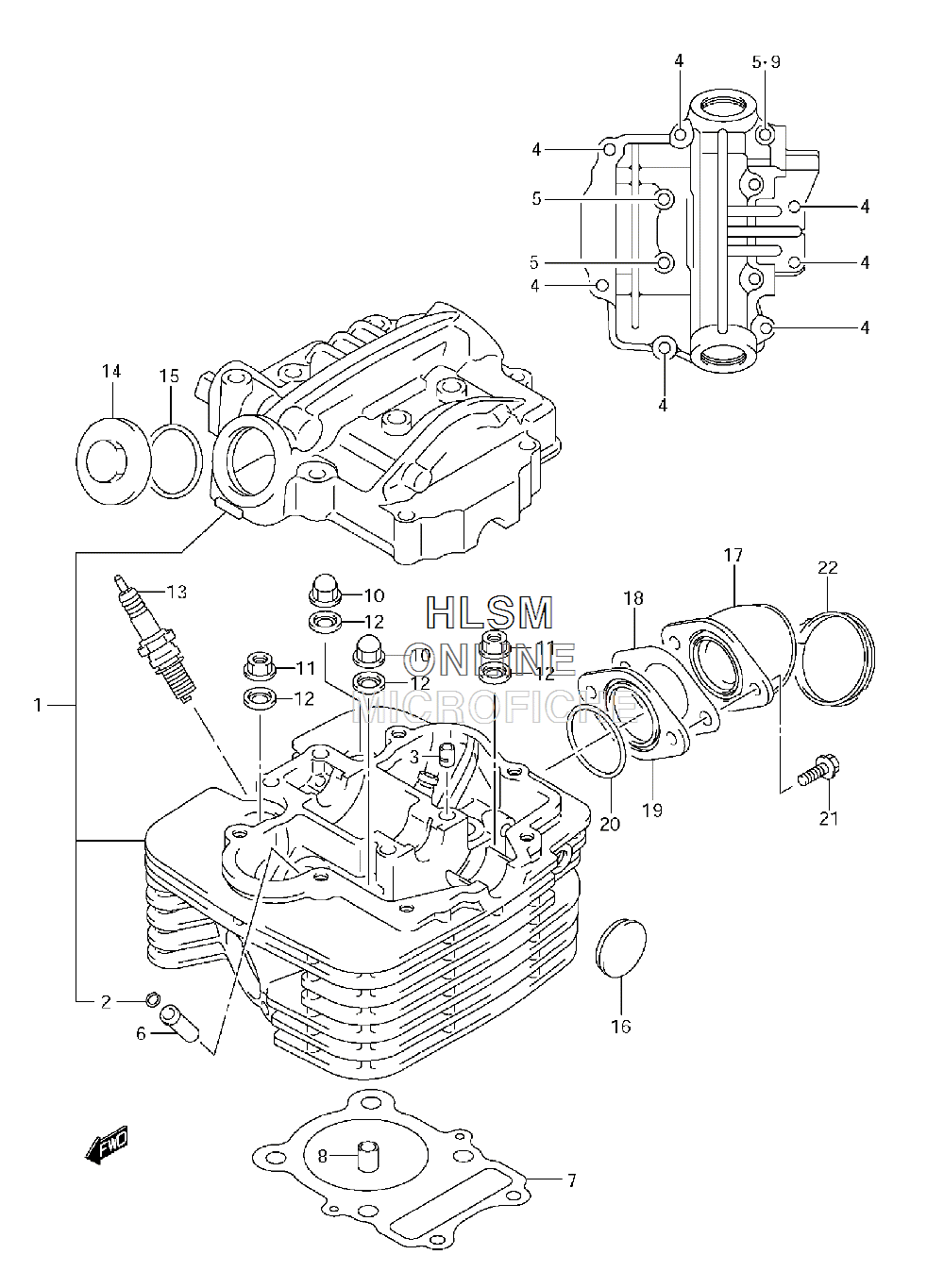

CYLINDER HEAD для Suzuki LT-F250 OZARK - 2007 года выпуска
-
№АртикулНазвание
-
111100-05G00 HEAD ASSY, CYLINDER (INC 2-5)HEAD ASSY, CYLINDER (INC 2-5)
-
209381-10004 RING, VALVE GUIDERING, VALVE GUIDE
-
309206-08001 PINPIN
-
401550-0635B BOLTBOLT
-
501550-0660B BOLTBOLT
-
611115-05270 GUIDE, VALVE (OS:0.3)GUIDE, VALVE (OS:0.3)
-
711141-19B00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-11169 PINPIN
-
909168-06023 GASKETGASKET
-
1009159-08049 NUTNUT
-
1108316-1008B NUTNUT
-
1209168-08021 GASKETGASKET
-
1309482-00398 SPARK PLUG (NGK,DR7EA)SPARK PLUG (NGK,DR7EA)
-
1309482-00222 SPARK PLUG (DENSO,X22ESR-U)SPARK PLUG (DENSO,X22ESR-U)
-
1309482-00399 SPARK PLUG (NGK,DR8EA)SPARK PLUG (NGK,DR8EA)
-
1309482-00223 SPARK PLUG (DENSO,X24ERS-U)SPARK PLUG (DENSO,X24ERS-U)
-
1309482-00400 SPARK PLUG (NGK,DR9EA)SPARK PLUG (NGK,DR9EA)
-
1309482-00224 SPARK PLUG (DENSO,X27ESR-U)SPARK PLUG (DENSO,X27ESR-U)
-
1411175-18900 CAP, INSPECTIONCAP, INSPECTION
-
1509280-30001 O RING (D:3.0,ID:29.5)O RING (D:3.0,ID:29.5)
-
1609241-22002 PLUG, HEADPLUG, HEAD
-
1713110-05G00 PIPE, INTAKEPIPE, INTAKE
-
1813118-05G00 GASKET, INTAKE PIPEGASKET, INTAKE PIPE
-
1913117-05G00 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
2009280-35005 O RING (D:2.1,ID:34.7)O RING (D:2.1,ID:34.7)
-
2107120-0620B BOLTBOLT
-
2209402-46208 CLAMPCLAMP
