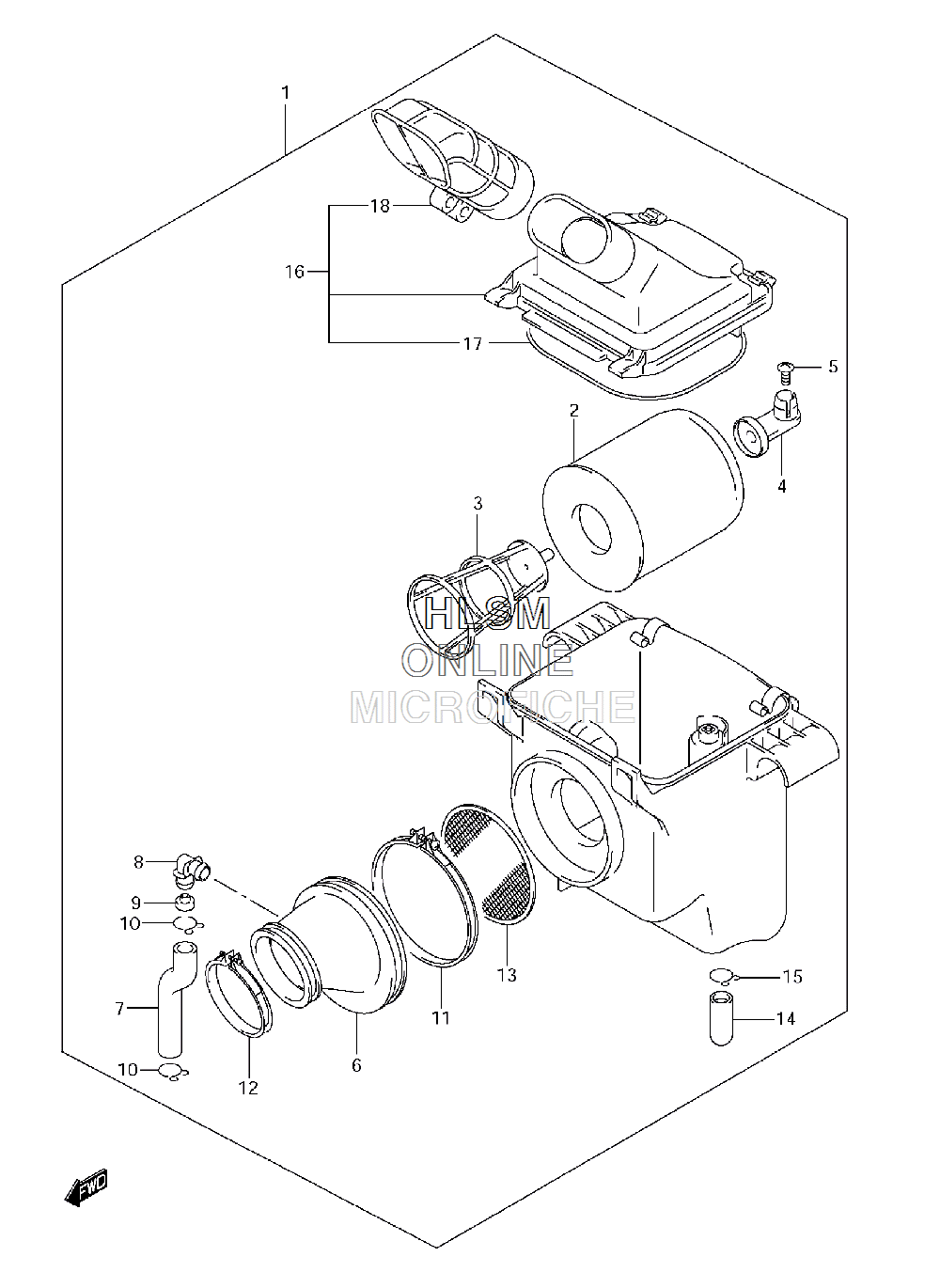

AIR CLEANER для Suzuki LT-F250 OZARK - 2007 года выпуска`
-
№АртикулНазвание
-
113700-05G00 CLEANER ASSY, AIR (INC 2-18)CLEANER ASSY, AIR (INC 2-18)
-
213780-05G10 FILTER ASSYFILTER ASSY
-
313791-05G01 HOLDER, FILTERHOLDER, FILTER
-
413792-05G00 STOPPER, HOLDERSTOPPER, HOLDER
-
502142-0616B SCREWSCREW
-
613881-05G00 TUBE, OUTLETTUBE, OUTLET
-
713853-05G00 TUBE, BREATHERTUBE, BREATHER
-
813858-14D20 JOINTJOINT
-
913859-05G00 JET, BREATHERJET, BREATHER
-
1009401-14301 CLIPCLIP
-
1109402-98208 CLAMP (CLEANER SIDE)CLAMP (CLEANER SIDE)
-
1209402-58208 CLAMP (CARBURETOR SIDE)CLAMP (CARBURETOR SIDE)
-
1313810-05G00 TRAP, FLAMETRAP, FLAME
-
1413878-09F00 PLUG, DRAINPLUG, DRAIN
-
1509401-14301 CLIPCLIP
-
1613740-05G00 CAP, AIR CLEANERCAP, AIR CLEANER
-
1713746-05G00 GASKETGASKET
-
1813891-05G00 TUBE, INLETTUBE, INLET
