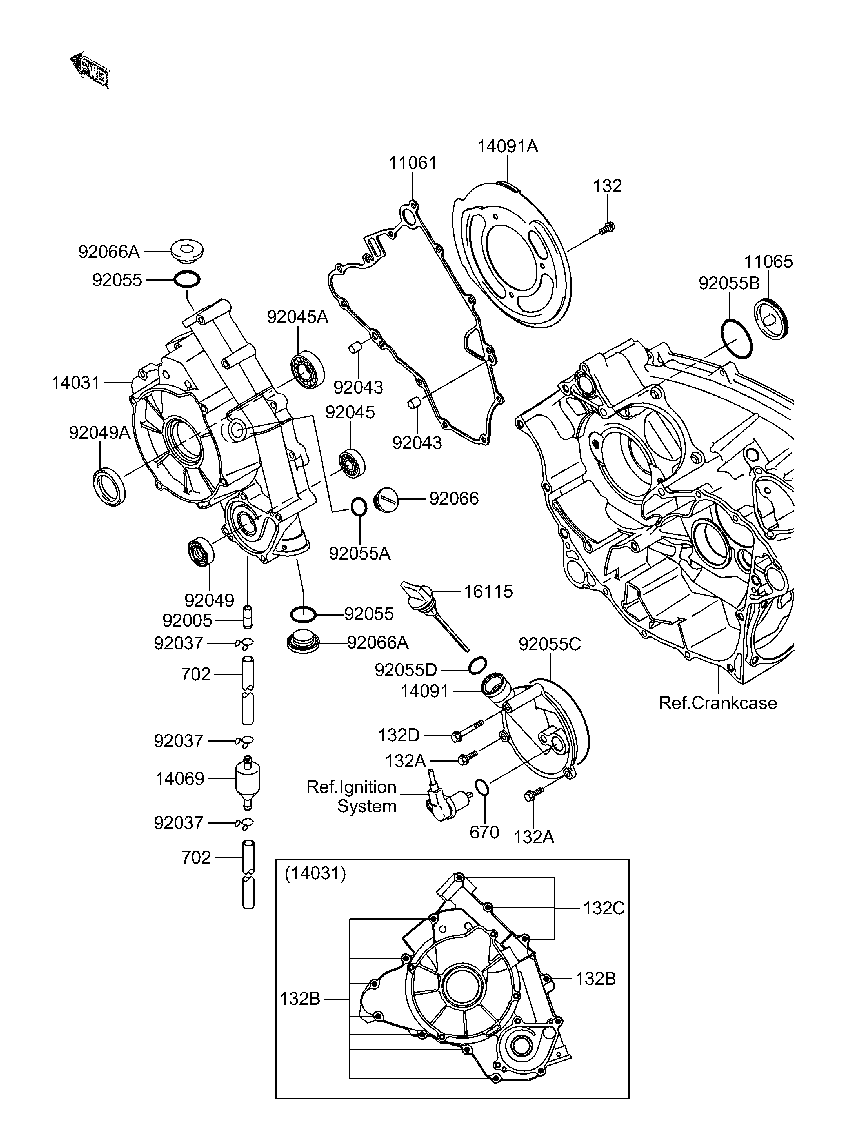

ENGINE COVER для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11061K1106-11119 GASKETGASKET
-
11065K1106-51151 CAPCAP
-
14031K1403-10005 COVER GENERATORCOVER GENERATOR
-
14069K1406-91051 BREATHERBREATHER
-
14091K1409-11365 COVERCOVER
-
14091AK1409-11571 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
16115K1611-51072 CAP OIL FILLERCAP OIL FILLER
-
92005K9200-51369 FITTINGFITTING
-
92037KK920-37147 CLAMP, TUBECLAMP, TUBE
-
92043K9204-31263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92045K9204-51246 BEARING BALL, 6901BEARING BALL, 6901
-
92045AK9204-51403 BEARING BALLBEARING BALL
-
92049K9204-91228 SEAL OIL, AC037AE0SEAL OIL, AC037AE0
-
92049AK9204-91576 SEAL OILSEAL OIL
-
92055K9205-51136 RING O, 25.7X2.4RING O, 25.7X2.4
-
92055AK9205-51146 RING ORING O
-
92055BK9205-51279 RING O, 44.7X2.4RING O, 44.7X2.4
-
92055CK9205-51632 RING ORING O
-
92055DK9205-52185 RING O, 20MMRING O, 20MM
-
92066K9206-60011 PLUG, COVERPLUG, COVER
-
92066AK9206-60012 PLUG, 25X8PLUG, 25X8
-
132KK132-Y0612 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132AKK132-Y0620 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132BKK132-Y0630 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132CKK132-Y0655 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
132DKK132-Y0665 BOLT FLANGED SMALLBOLT FLANGED SMALL
-
670KK670-D2018 O RINGO RING
-
702K702A-07035 TUBE RUBBERTUBE RUBBER
