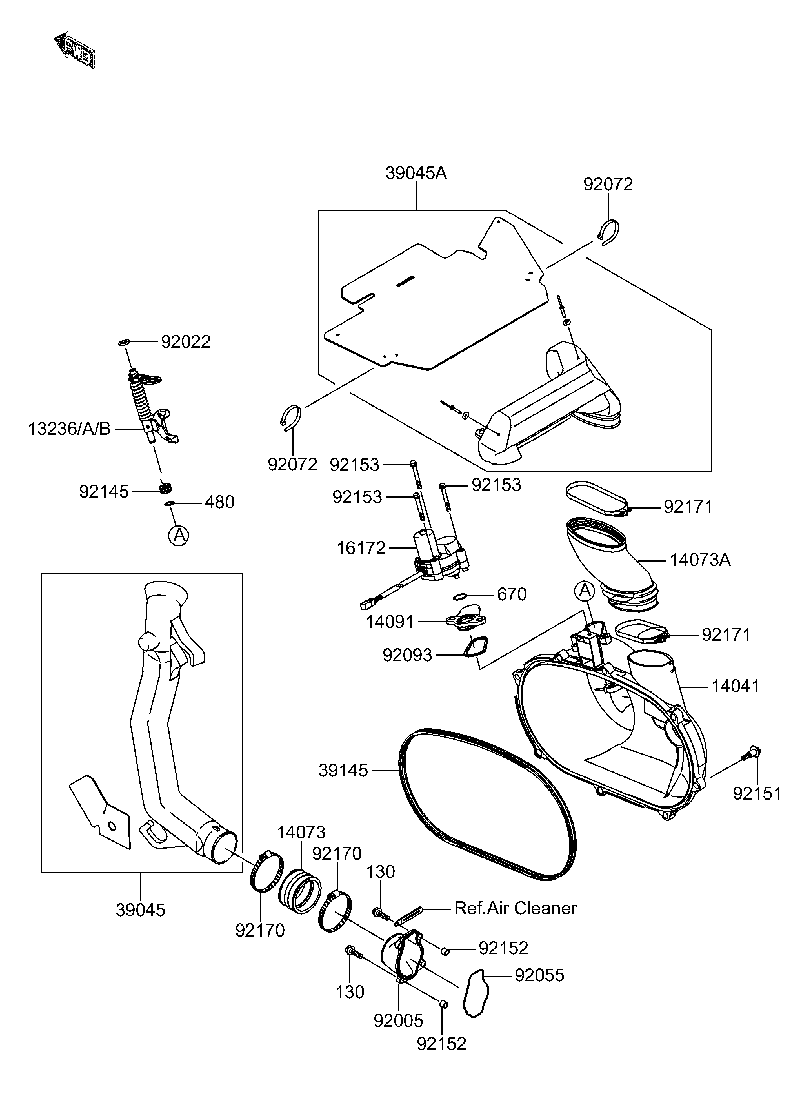

CONVERTER COVER/DRIVE BELT для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска`
-
№АртикулНазвание
-
13236K1323-61385 LEVER COMP (YELLOW)LEVER COMP (YELLOW)
-
13236AK1323-61386 LEVER COMP (GREEN)LEVER COMP (GREEN)
-
13236BK1323-61387 LEVER COMP (PAINT LESS)LEVER COMP (PAINT LESS)
-
14041K1404-10007 COVER COMPCOVER COMP
-
14073K1407-31775 DUCT, AIR FILTER JOINTDUCT, AIR FILTER JOINT
-
14073AK1407-31792 DUCT, EXHAUSTDUCT, EXHAUST
-
14091K1409-11421 COVER, ENGINE BRAKECOVER, ENGINE BRAKE
-
16172K1617-21063 ACTUATOR, BELT CONVERTERACTUATOR, BELT CONVERTER
-
39045K3904-50002 DUCT ASSY, SNORKEL, INDUCT ASSY, SNORKEL, IN
-
39045AK3904-51063 DUCT ASSY, SNORKEL, EXDUCT ASSY, SNORKEL, EX
-
39145K3914-51135 TRIM SEALTRIM SEAL
-
92005K9200-51387 FITTINGFITTING
-
92022K9202-21829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
92055K9205-51630 RING ORING O
-
92072K9207-21239 BAND, L=188BAND, L=188
-
92093K9209-31548 SEALSEAL
-
92145K9214-51567 SPRINGSPRING
-
92151K9215-11686 BOLTBOLT
-
92152K9215-21332 COLLARCOLLAR
-
92153K9215-30678 BOLT, 6X47BOLT, 6X47
-
92170K9217-01764 CLAMPCLAMP
-
92171K9217-11336 CLAMPCLAMP
-
130KK130-Z0620 BOLT FLANGEDBOLT FLANGED
-
480KK480-J1000 CIRCLIP TYPE C, 10MMCIRCLIP TYPE C, 10MM
-
670KK670-D3022 O RINGO RING
