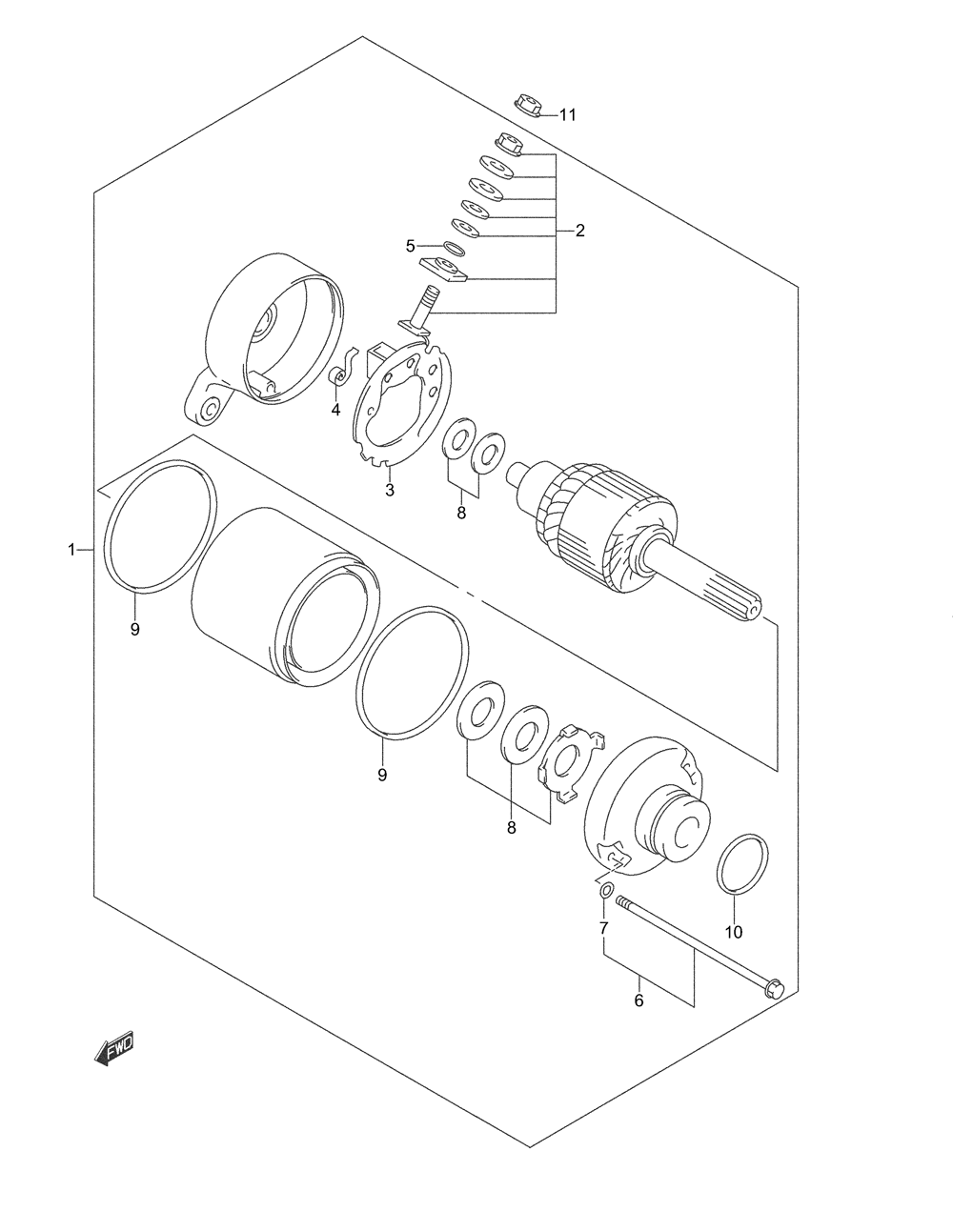

STARTING MOTOR для Suzuki LT160 QUADRUNNER - 2003 года выпуска
-
№АртикулНазвание
-
131100-02C10 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-13E00 BRUSH TERMINAL SETBRUSH TERMINAL SET
-
331132-33E00 BRUSH HOLDER SETBRUSH HOLDER SET
-
431135-31300 SPRING, BRUSHSPRING, BRUSH
-
531143-49040 O RINGO RING
-
631280-19F00 SET BOLT ASSYSET BOLT ASSY
-
731156-13E00 O RINGO RING
-
831170-19B10 WASHER SETWASHER SET
-
931264-13E00 O RINGO RING
-
1009280-25002 O RING (D:3.1,ID:24.4)O RING (D:3.1,ID:24.4)
-
1108361-35068 NUTNUT
