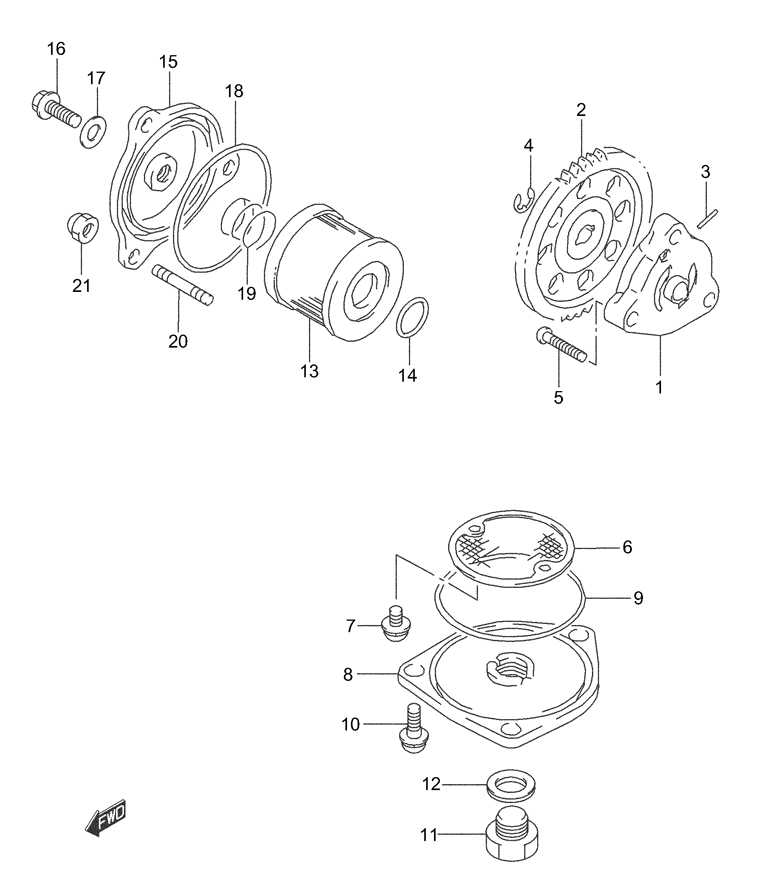

OIL PUMP - FUEL PUMP для Suzuki LT160 QUADRUNNER - 2003 года выпуска`
-
№АртикулНазвание
-
116400-01412 PUMP, ENGINE OILPUMP, ENGINE OIL
-
216331-20B00 GEAR, DRIVEN (NT:47)GEAR, DRIVEN (NT:47)
-
309261-02008 PINPIN
-
408332-11063 CIRCLIPCIRCLIP
-
502112-06203 SCREWSCREW
-
616520-05202 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
702112-75123 SCREWSCREW
-
816523-05200 CAP, OIL STRAINERCAP, OIL STRAINER
-
909280-60005 O RING (D:2.4,ID:60.5)O RING (D:2.4,ID:60.5)
-
1001547-06203 BOLTBOLT
-
1109247-14026 PLUG, DRAINPLUG, DRAIN
-
1209168-14002 GASKETGASKET
-
1316510-25C00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1409280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1516512-22A00 CAP, OIL FILTERCAP, OIL FILTER
-
1601550-08123 PLUG, OIL CHECKPLUG, OIL CHECK
-
1709168-08015 GASKET (8.2X14X1.6)GASKET (8.2X14X1.6)
-
1809280-54002 O RING (D:2.4,ID:53.6)O RING (D:2.4,ID:53.6)
-
1909440-18002 SPRINGSPRING
-
2001421-06168 STUD BOLTSTUD BOLT
-
2108313-10063 NUTNUT
