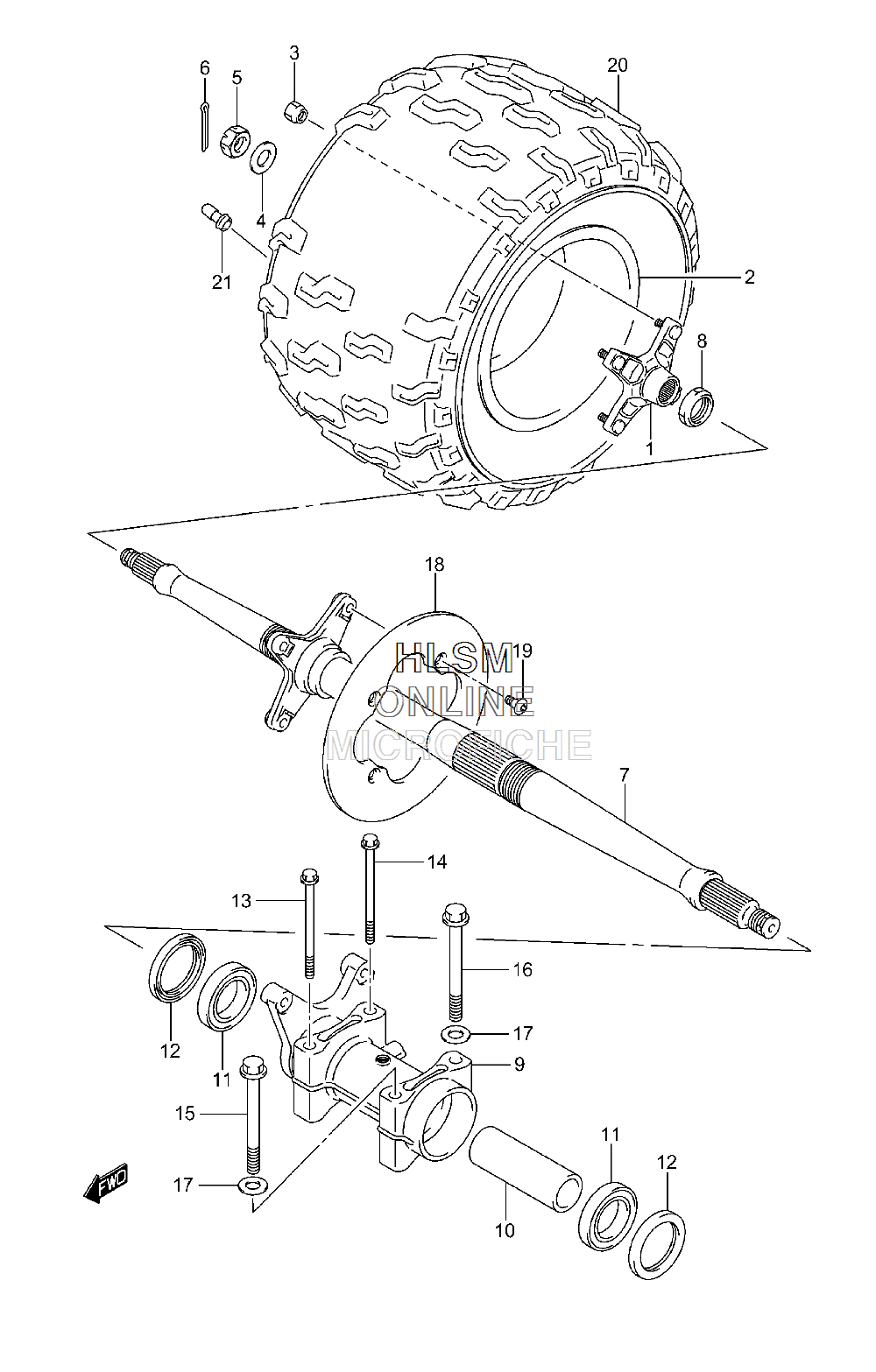

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-Z400F QUADSPORT Z400 - 2003 года выпуска
-
№АртикулНазвание
-
164110-07G00-YU8 HUB, REAR WHEEL (GRAY)HUB, REAR WHEEL (GRAY)
-
265310-07G00 RIM, REAR WHEEL (9X8.0AT)RIM, REAR WHEEL (9X8.0AT)
-
309140-10021 NUTNUT
-
409164-20002 WASHERWASHER
-
509141-20002 NUT, HUBNUT, HUB
-
604111-40408 COTTER PINCOTTER PIN
-
764710-07G00 AXLE, REARAXLE, REAR
-
864871-07G00 NUT, REAR AXLE RIGHT HANDNUT, REAR AXLE RIGHT HAND
-
964715-07G00 HOUSING, RR AXLE BEARINGHOUSING, RR AXLE BEARING
-
1064731-07G00 SPACER, RR AXLE BEARINGSPACER, RR AXLE BEARING
-
1108123-60087 BEARING, REAR AXLEBEARING, REAR AXLE
-
1209283-50006 SEAL, RR AXLE BEARING DUSTSEAL, RR AXLE BEARING DUST
-
1309103-10076 BOLT, HOUSING FRONT RIGHT HANDBOLT, HOUSING FRONT RIGHT HAND
-
1409103-10350 BOLT, HOUSING REAR RIGHT HANDBOLT, HOUSING REAR RIGHT HAND
-
1509103-12026 BOLT, HOUSING FRONT LEFT HANDBOLT, HOUSING FRONT LEFT HAND
-
1609103-12027 BOLT, HOUSING REAR LEFT HANDBOLT, HOUSING REAR LEFT HAND
-
1709160-12102 WASHER, AXLE HOUSING SET LEFT HANDWASHER, AXLE HOUSING SET LEFT HAND
-
1869211-07G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
1909106-08160 BOLT, DISCBOLT, DISC
-
2065110-07G00 TIRE, REARTIRE, REAR
-
2143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
