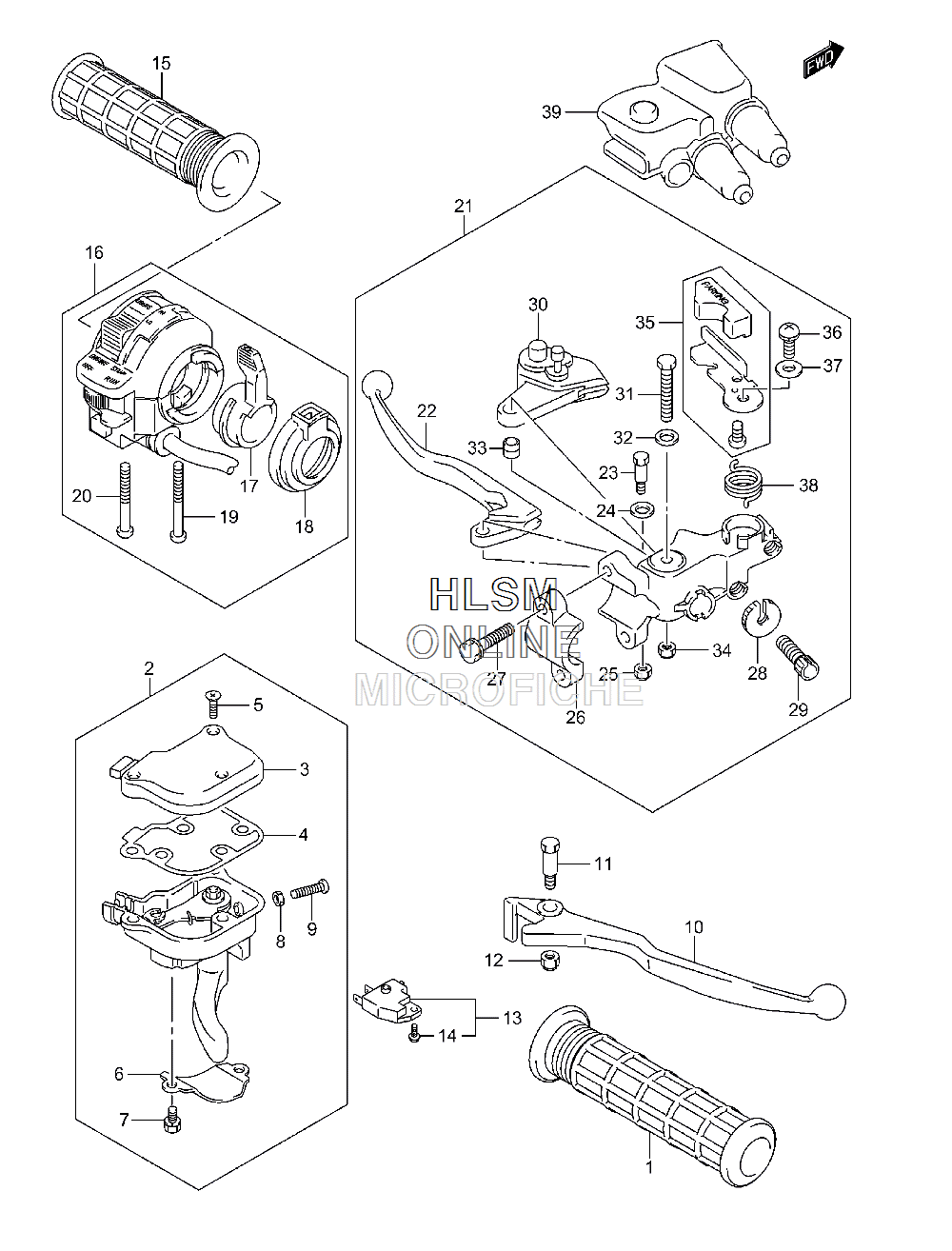

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-Z400F QUADSPORT Z400 - 2003 года выпуска
-
№АртикулНазвание
-
157211-22A01-291 GRIP (BLACK)GRIP (BLACK)
-
257100-07G00 CASE ASSY, THROTTLE (INC 3-9)CASE ASSY, THROTTLE (INC 3-9)
-
357121-07G00 CAPCAP
-
457157-07G00 GASKETGASKET
-
557128-07G00 SCREWSCREW
-
657126-07G00 HOLDERHOLDER
-
757127-07G00 BOLTBOLT
-
808310-00053 NUTNUT
-
902112-05203 SCREWSCREW
-
1057421-39D20 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
1157431-04F00 BOLT, PIVOTBOLT, PIVOT
-
1257433-09F00 NUTNUT
-
1357460-17C00 SWITCH ASSY, STOP (INC 14)SWITCH ASSY, STOP (INC 14)
-
1457465-17C00 SCREWSCREW
-
1557211-22A01-291 GRIP (BLACK)GRIP (BLACK)
-
1637400-07G00 SWITCH ASSY, HANDLE LEFT HAND (UP TO FRAME SERIAL 129634) (INC 17-20)SWITCH ASSY, HANDLE LEFT HAND (UP TO FRAME SERIAL 129634) (INC 17-20)
-
1637400-07G90 SWITCH ASSY, HANDLE LEFT HAND (FRAME SERIAL 129635 AND ABOVE) (INC 17-20)SWITCH ASSY, HANDLE LEFT HAND (FRAME SERIAL 129635 AND ABOVE) (INC 17-20)
-
1737571-19B01 LEVER, CHOKELEVER, CHOKE
-
1837576-19B01 COVER, CHOKECOVER, CHOKE
-
1902112-05457 SCREWSCREW
-
2002112-05407 SCREWSCREW
-
2157500-07G00 LEVER SET, CLUTCH (INC 22-38)LEVER SET, CLUTCH (INC 22-38)
-
2257621-07G00 LEVERLEVER
-
2357513-07G00 BOLT, PIVOTBOLT, PIVOT
-
2457432-07G00 WASHERWASHER
-
2508319-21063 NUTNUT
-
2657512-07G00 HOLDERHOLDER
-
2701547-06203 BOLTBOLT
-
2857442-07G00 NUT, ADJUSTERNUT, ADJUSTER
-
2957441-45C00 BOLT, ADJUSTERBOLT, ADJUSTER
-
3057800-07850 LOCK SET, PARKING LOCKLOCK SET, PARKING LOCK
-
3157431-07G00 BOLT, PARKING LOCKBOLT, PARKING LOCK
-
3257433-07G00 WASHERWASHER
-
3357623-07G00 SPACERSPACER
-
3408319-21063 NUTNUT
-
3557700-07850 KNOB SET, PARKINGKNOB SET, PARKING
-
3657619-07G00 SCREW, PARKING PLATESCREW, PARKING PLATE
-
3757618-07G00 WASHERWASHER
-
3857624-07G00 SPRING, RETURNSPRING, RETURN
-
3957541-07G00 COVER, LEVERCOVER, LEVER
